www.stiebel-eltron.com  9

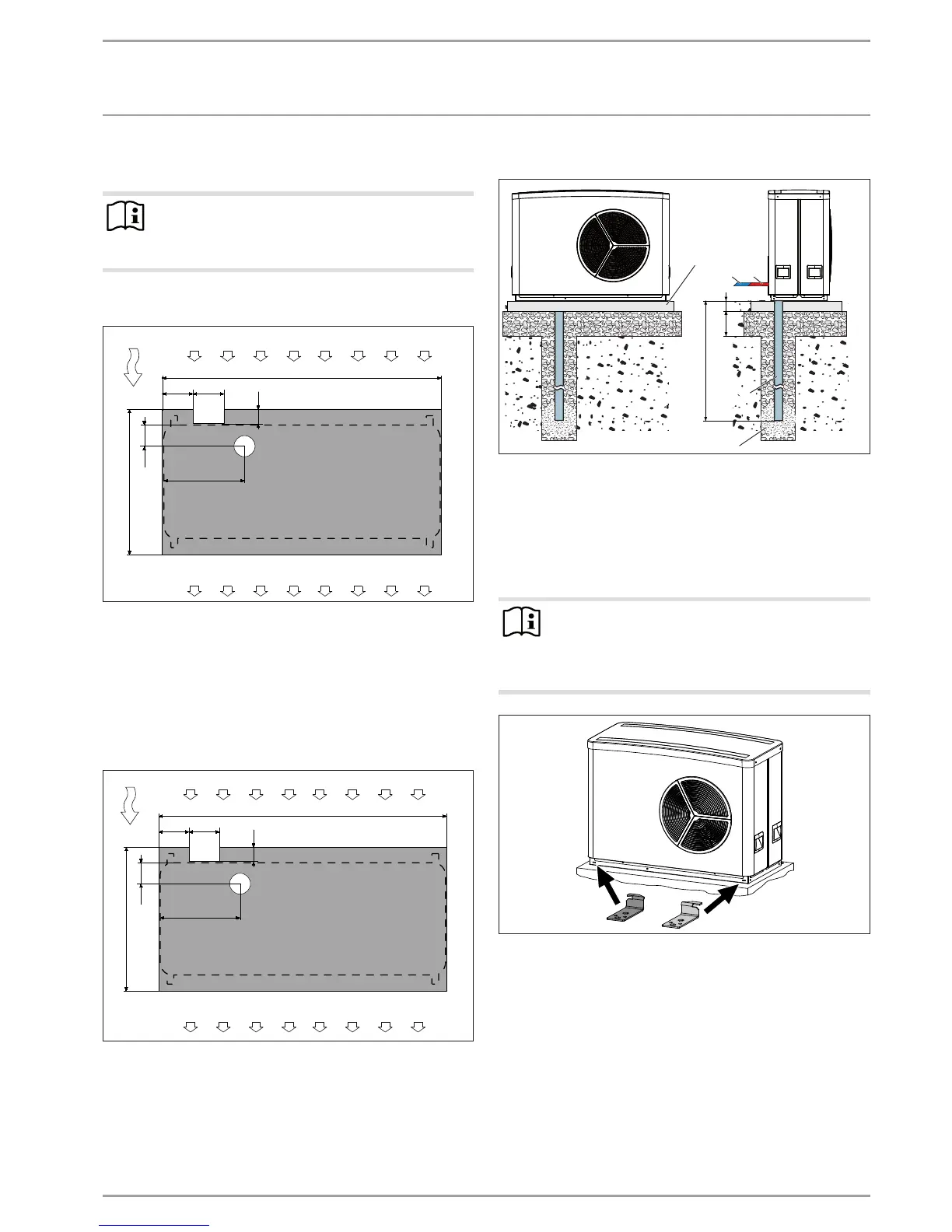

9.5.1 Siting on foundations or an MK 1 mounting bracket
(WPL15AS| WPL15ACS only)
Note
Allow the conduits for the supply lines to protrude slightly
above the foundations. Ensure that no water can enter
the conduits.
Foundations with recess (WPL15AS| WPL15ACS)
750
1300
100
410
200
75
140
4
5
1
3
2
D0000034133
1 Air intake
2 Air discharge
3 Main wind direction
4 Supply line recess
5 Condensate drain recess (minimum diameter 70mm)
 Ensure that the foundations offer the necessary recess.
Foundations with recess (WPL20A| WPL20AC| WPL25A|
WPL25AS| WPL25AC| WPL25ACS)
750
1500
100
410
200
75
140
4
5
1
3
2
D0000028298
1 Air intake
2 Air discharge
3 Main wind direction
4 Supply line recess
5 Condensate drain recess (minimum diameter 70mm)
 Ensure that the foundations offer the necessary recess.
Installation on foundations
4
12
5
AB
C
3
D0000028297
A 100
B 300
C Depth of frost line
1 Heating flow
2 Heating return
3 Condensate drain conduit
4 Foundation
5 Gravel bed
Note
To secure the appliance against toppling over, it can also
be fixed to the foundations with screws.
 Use the accessories with which the appliance was
secured to the transport pallet.
D0000064201
 Hook two brackets respectively into the lateral slots on the
front and back. Ensure you are using the correct brackets for
the left and right hand slots respectively.
 Position the brackets so that the groove on the bracket is
hooked into the appliance.
 Secure the appliance to the foundations using the brackets
and suitable rawl plugs and screws. Do not use the screws
with which the appliance was secured to the transport pallet.
