INSTALLATION
Electrical connection
www.stiebel-eltron.com WPM | 15
ENGLISH
5.2 Appliance connection
The cable entries in the wall mounting enclosure are suitable for
rigid and flexible cables with an outside diameter of 6-12mm.
Lay flexible cables in conduits or cable ducts.
Mains and low voltage power circuits are routed separately in the
wall mounting enclosure.
!
Material losses
Bus cables, power cables and sensor leads must be in-
stalled separately.

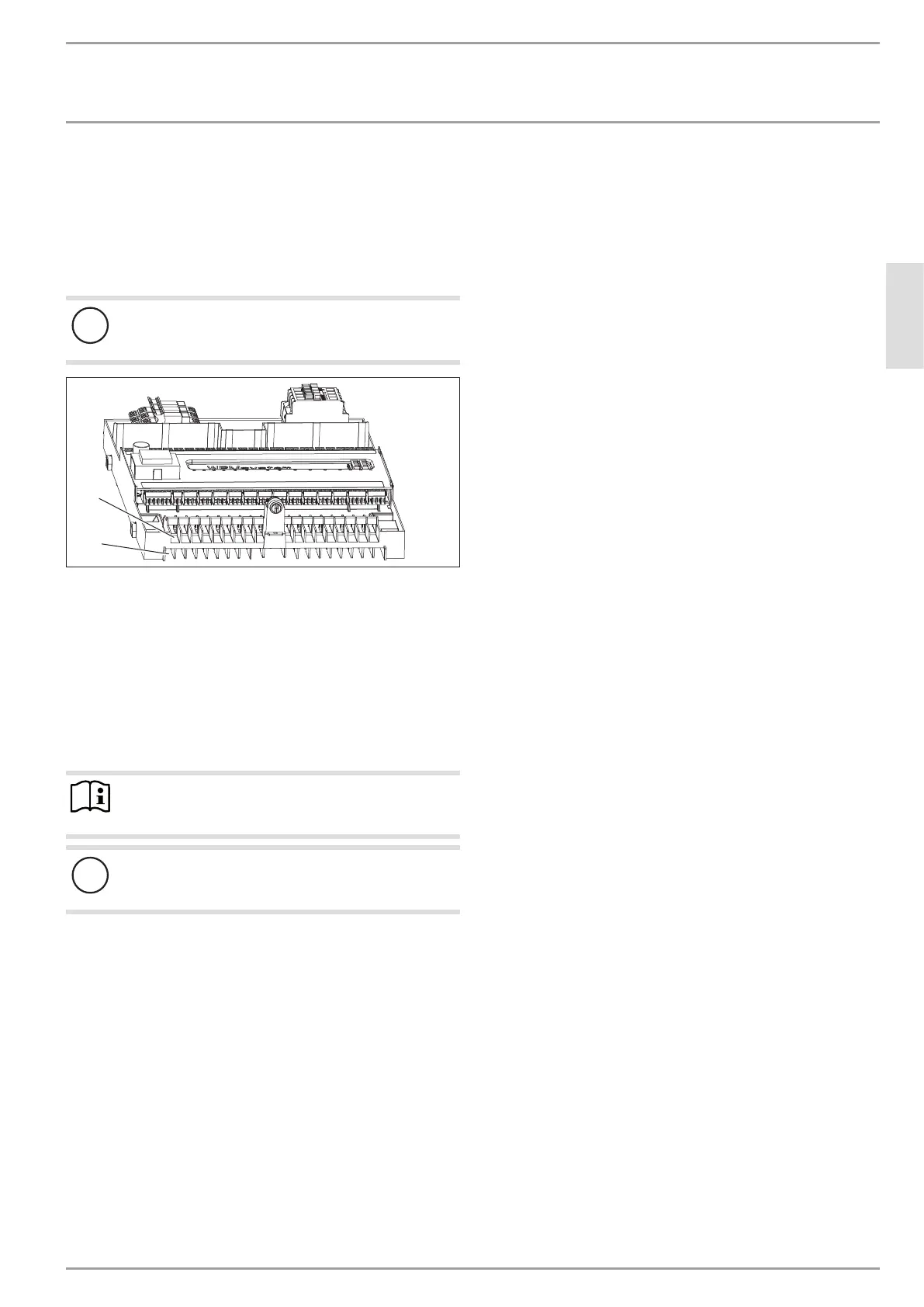

D0000069175
1
2
1 Front cable entry for mains voltage
2 Rear cable entry for low voltage
Route the low voltage leads from below into the rear cable
entry on the device.
Route the mains power cable from below into the front cable
entry on the device.
When connecting the mains voltage, ensure the earth con-
ductor is correctly connected.
Secure all electrical cables directly below the wall mounting
enclosure with the red wedges supplied.
Note
The red wedges are for securing the cables.
Do not use the red wedges for strain relief.
!
Material losses
Tighten all the screws on the terminals. Screws on
unconnected terminals must also be tightened.
