INSTALLATION
Closing the front fascia
www.stiebel-eltron.com WPM | 19
ENGLISH

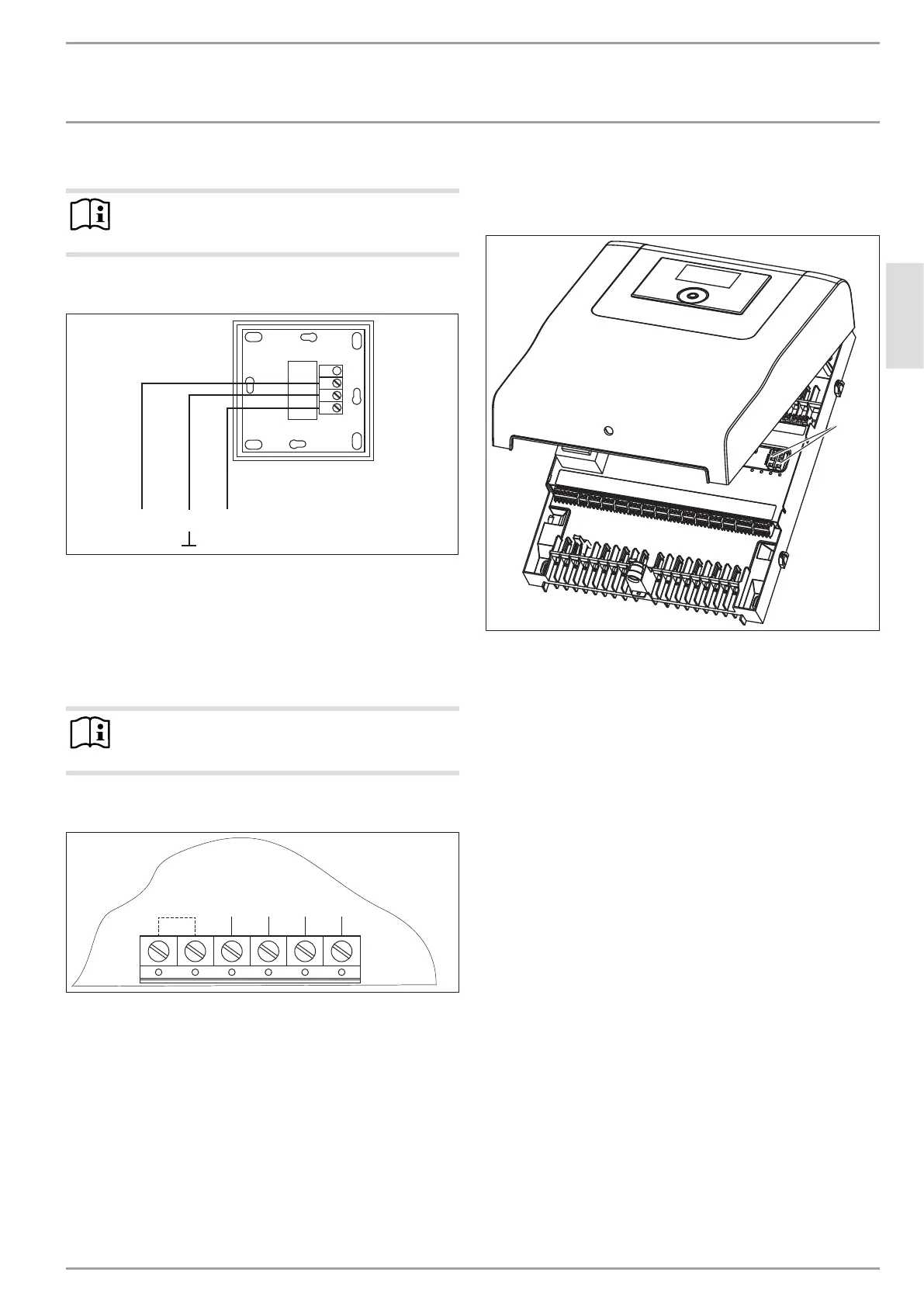

5.4 FE 7 remote control
Note
If you are connecting an FE7 remote control, you cannot
use an FET remote control.
FE 7 connection array
3
1
1 2 3
26�21�01�0008
With the FE 7 remote control you can adjust the set room temper-
ature for heating circuit 1 by ± 5°C. This function is enabled only
in PROGRAMMED OPERATION. You can also change the operating
mode.
Connect the remote control to terminal X1.13.
5.5 FET remote control
Note
If you are connecting one or multiple FET remote controls,
you cannot use an FE7 remote control.
FET connection array
+ - L H
1 6
D0000080724
The FET digital remote control enables convenient operation of
one heating zone.
Attach the remote control to one of the CAN B terminals.
Observe the FET operating instructions.
5.6 Internet Service Gateway ISG
The Internet Service Gateway ISG enables you to operate the heat
pump in your local home network and via the internet whilst you
are away from home.
Attach the Internet Service Gateway to one of the CAN B ter-
minals (not one marked "+").
Observe the ISG operating instructions.
The ISG is not supplied with power by the heat pump.
6. Closing the front fascia
D0000070280
1
1 CAN bus for programming unit
Connect the connecting lead from the programming unit to
one of the "CAN bus for programming unit" connections.
Attach the front fascia at the top of the device.
Press in the bottom of the front fascia firmly.
Secure the fascia at the bottom with the screw.
