EN - 3
2. PRODUCT DESCRIPTION
This machine is a gardening tool designed to be operated
as a front cutting, ride-on lawn mower with seated operator.
The machine has an engine which actuates the cutting means
which is protected by a guard as well as a transmission which
ensures machine movement.
The machine is articulated. This means that the chassis is
divided into a front section and a rear section which can be
steered in relation to each other.
The articulated steering means that the machine can be
driven around trees and other obstacles with an extremely
limited steering radius.
The operator is able to operate the machine and use the main
controls, always seated in the operator's position.
The safety devices tted on the machine will stop the machine
and the cutting means assembly.
Intended use and misuse
This machine is designed and built for cutting grass in gardens
and grassy areas.
The use of special attachments provided for by the
Manufacturer as original equipment or which may be
purchased separately, allows this work to be done in various
operating modes, illustrated in this manual or the instructions
that accompany the single attachments.
Any other use may be dangerous and cause damage to
persons and/or property.
Examples of improper use may include, but are not limited to:
• transporting other persons, children or animals on the
machine;
• using the machine for towing or pushing loads without the
use of the specied attachment for towing;
• Using the cutting means on surfaces other than grass;
• Using the machine for leaf or debris collection;
• using the machine to pass over unstable, slippery, icy,
stony or uneven ground, puddles or swamps.
Improper use of the machine will void the war-
ranty and relieves the Manufacturer of any liability, placing all
responsibility for damage or injury, to him/herself or third par-
ties, on the user.
The machine must be used by one opera-
tor only.
The machine has not been type-approved for
circulation on public roads. It must be used (as indicated by the
highway code) in private areas closed to traffic.
2.1.
A. Chassis
B. Wheels
C. Steering wheel
D. Seat
E. Console
F. Pedal control
G. Front attachments lift lever
H. Engine hood
I. Fixed engine casing
L. Fuse housing
M. Battery
N. Fuel tank
O. Transmission oil tank
P. Engine
Q. Hydraulic sockets (Mod. 740 IOX)
R. Quick-release supports for attachments

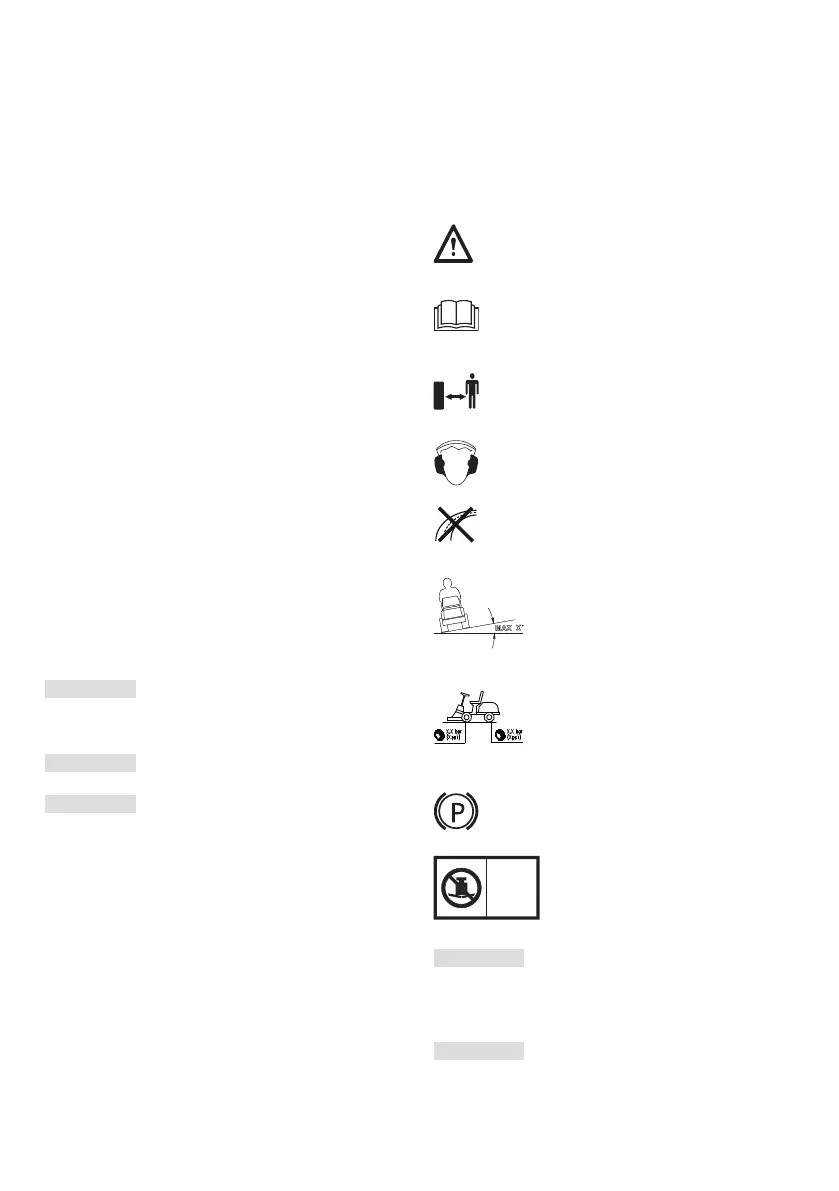

2.2.
ATTENTION
Indicates danger. It is normally combined
with other signs indicating the particularity
of the danger.
ATTENTION
Read the owner's manual carefully before
using the machine.
ATTENTION
Pay attention to any scattered objects.
Pay attention to any people on the
workplace.
ATTENTION
Always wear ear defenders.
ATTENTION
The machine has not been approved for
use on public roads.
ATTENTION
This machine, with original attach-
ments installed, can proceed with a
maximum inclination of 10°, regardless
of direction.
Tyre pressure . The label shows the
optimum tyre pressure values - see
chapter '0 TABLE OF TECHNICAL
DATA'. The correct tyre pressure is an
essential condition for obtaining good
results from using the machine.
Indication of parking brake locking.
xxKg
MAX
Indicates the maximum load capacity of
the carrier (if present).
Any damaged or illegible decals must be re-
placed. Order replacement decals from an Authorised Service
Centre.
3.
Unpacking and assembly operations should
be performed on a flat and stable surface, with enough space
for handling the machine and its packaging, using the prop-
er tools.
