EN - 13

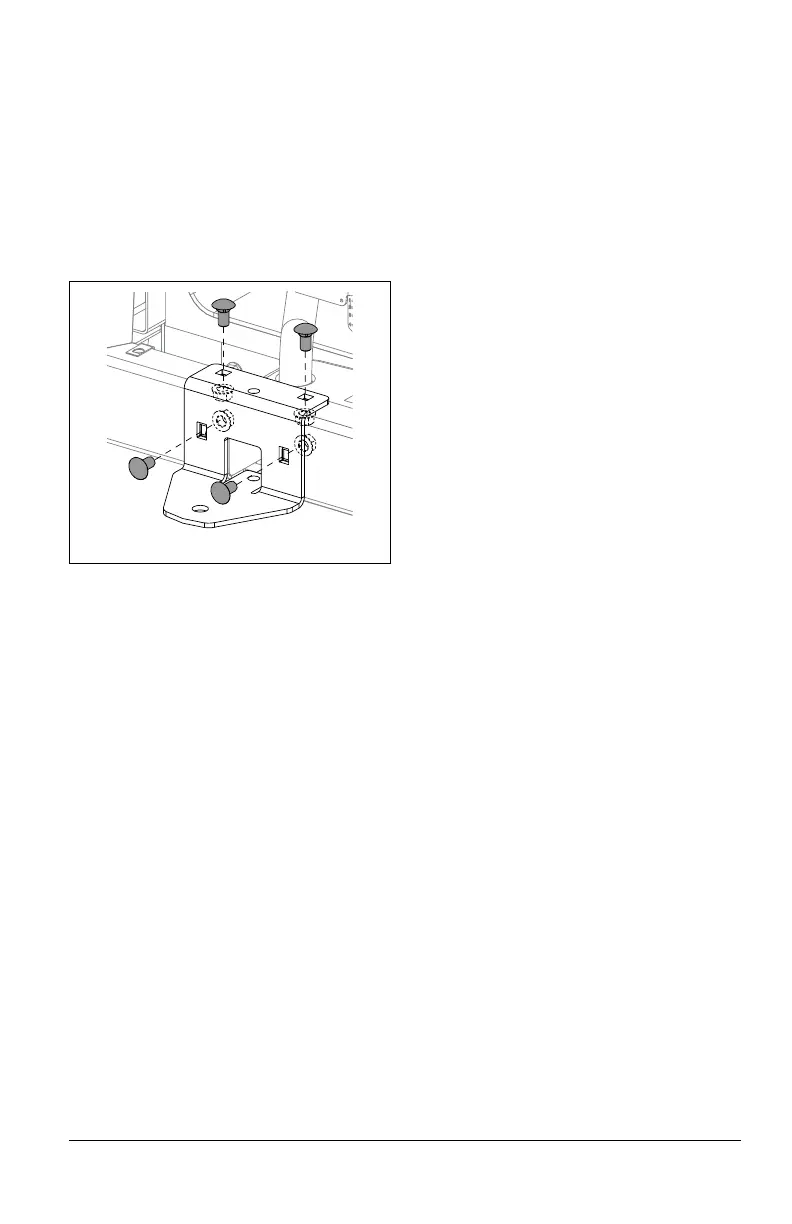

INSTALL TRAILER HITCH
See Figure 9.
1. Remove trailer hitch, four 3/8"-16 x 3/4"
round head square neck bolts and four
3/8"-16 flange nuts from plastic bag in the
shipping container.
2. Position trailer hitch over frame as shown
in Figure 9.
3. Align holes in frame with holes in trailer
hitch and secure with hardware from step
1.
PREPARE UNIT FOR OPERATION
1. Adjust seat to a comfortable position. See
Adjust Seat on page 26.
