5. Fully tighten hardware.
See Figure 35.
6. Loosen nut on hex bolt supporting
eccentric spacer.
7. Rotate eccentric spacer around hex bolt
until levers are at the same height.
8. Tighten nut.
Adjust Steering Lever Reach
See Figure 36.
1. Loosen hardware securing steering lever
to upper control arm.
2. Pivot steering lever to desired position.
3. Ensure levers are aligned with each
other.
4. Tighten hardware.
ADJUST UNIT TO TRACK
STRAIGHT
NOTICE: Reverse travel can only be
adjusted by your Stiga dealer.
Check Tyre Pressure
1. Check pressure of both tires. See
Specifications on page 35 for
recommended tyre pressure.
2. Recheck unit tracking. If unit still does not
track straight, note which side the unit
pulls toward and increase the tyre
pressure on that side.
IMPORTANT: DO NOT exceed maximum
tyre pressure listed on tire sidewall.
If increasing tyre pressure on one side does
not correct tracking problem, adjust the
steering levers.

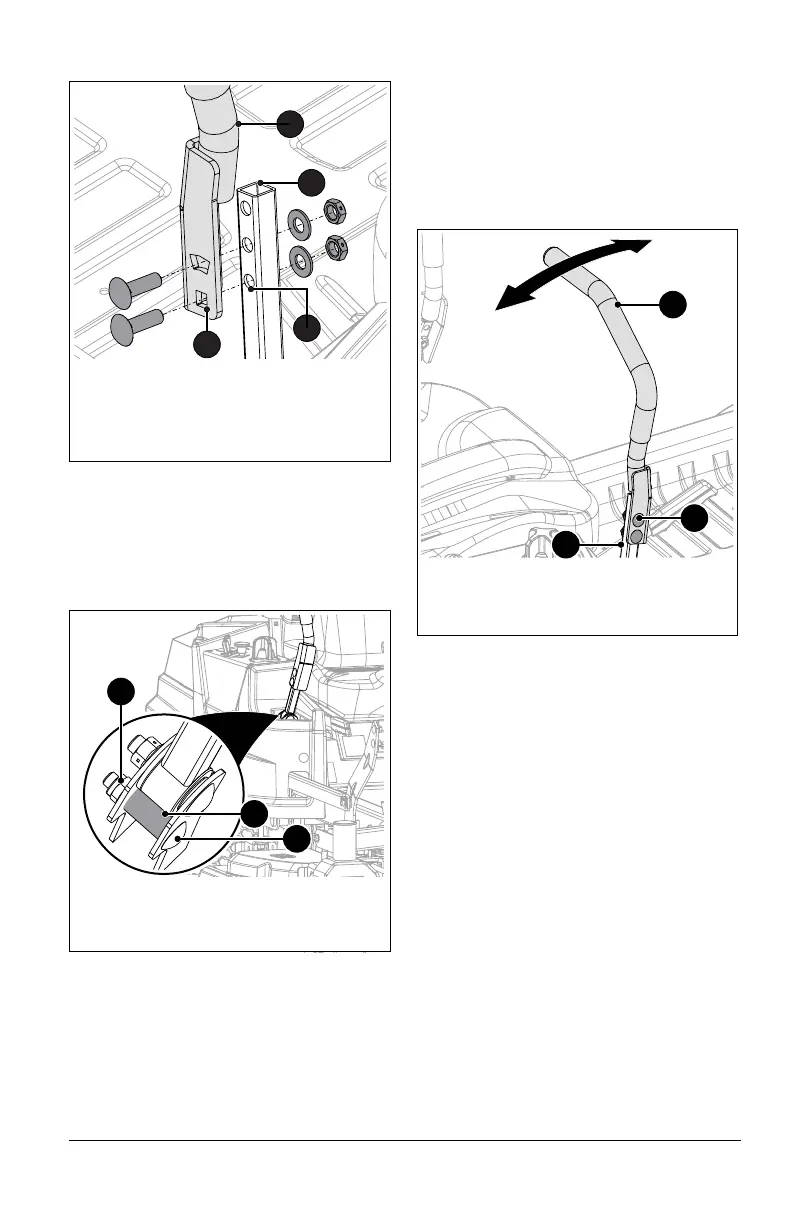

Figure 34
1. Adjusting Hole
2. Mounting Hole
3. Steering Lever
4. Upper Control Arm
3
4
2
1
Figure 35
1. Eccentric Spacer
2. Hex Bolt
3. Nut
1
2
3
Figure 36
1. Steering Lever
2. Upper Control Arm
3. Hardware
1
3
2
