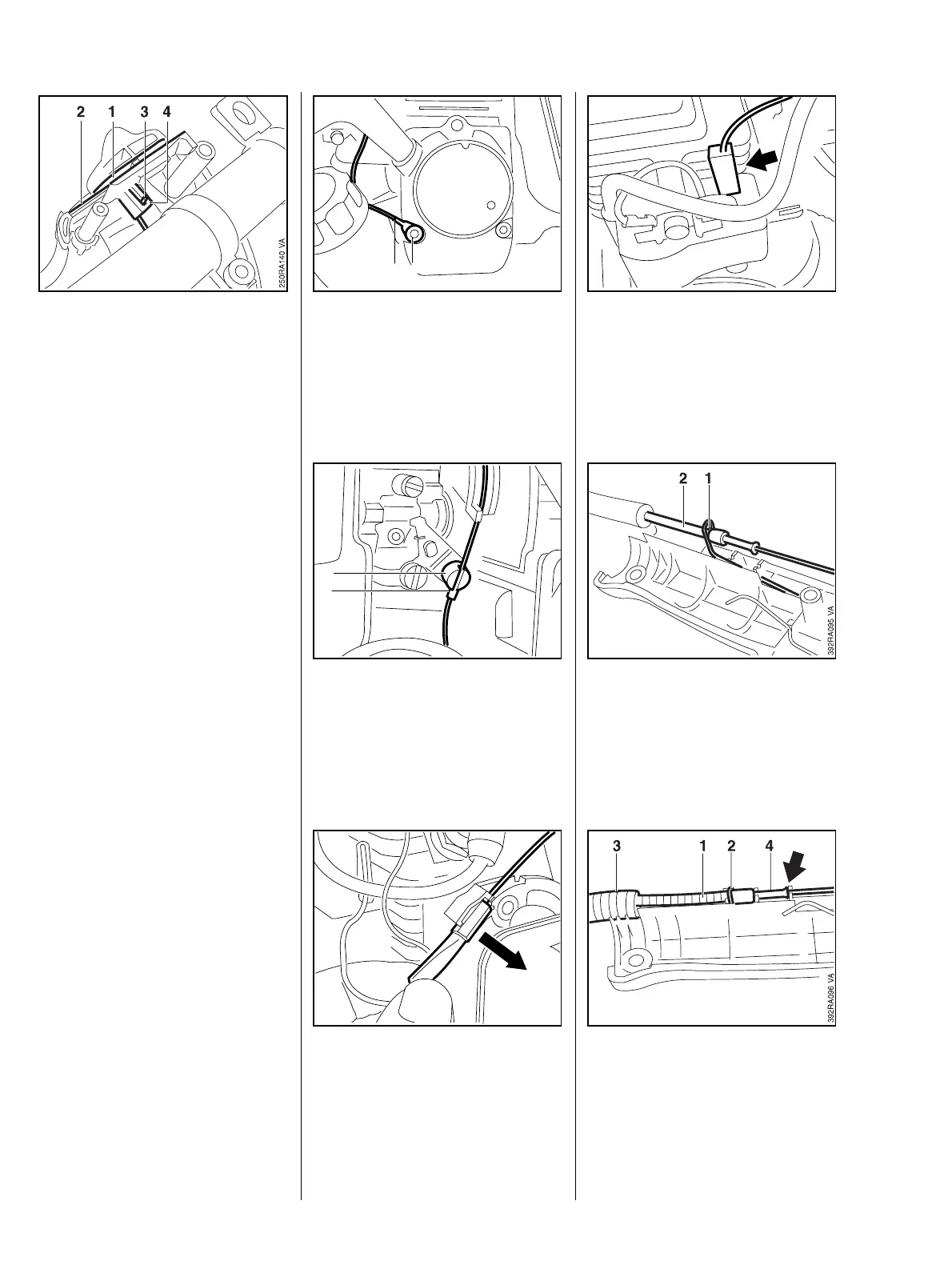

– Tighten down the clamp screws
firmly, b 3.2
: The slot (1) in the slide control
must engage over the outer edge
(2) of the handle molding.
: Torsion spring (3) must locate in
recess (4) in slide control.
– Remove the shroud, b 5.1
: Take out the screw (1).
: Remove the extended throttle
cable (2).
VA
936RA115
2 1
: Disconnect throttle cable nipple
(1) from slotted pin (2) on
carburetor’s throttle lever.
VA
936RA116
2
1
: Pull the throttle cable out of the
tensioner.
VA
936RA117
: Pull the short circuit wire
connector off the tag on the
ignition module.
– Remove the throttle trigger,
b 8.2.1
VA
936RA118
: Lift the contact spring (1) slightly
and remove the throttle cable (2).
Install in the reverse sequence.
: Check that the throttle cable (1),
contact spring (2), protective
tube (3) and insulator (4) are
properly seated.
