To avoid the risk of electrocution, do
not start the engine while the control
handle is exposed.
FS 75, 80, 85 only

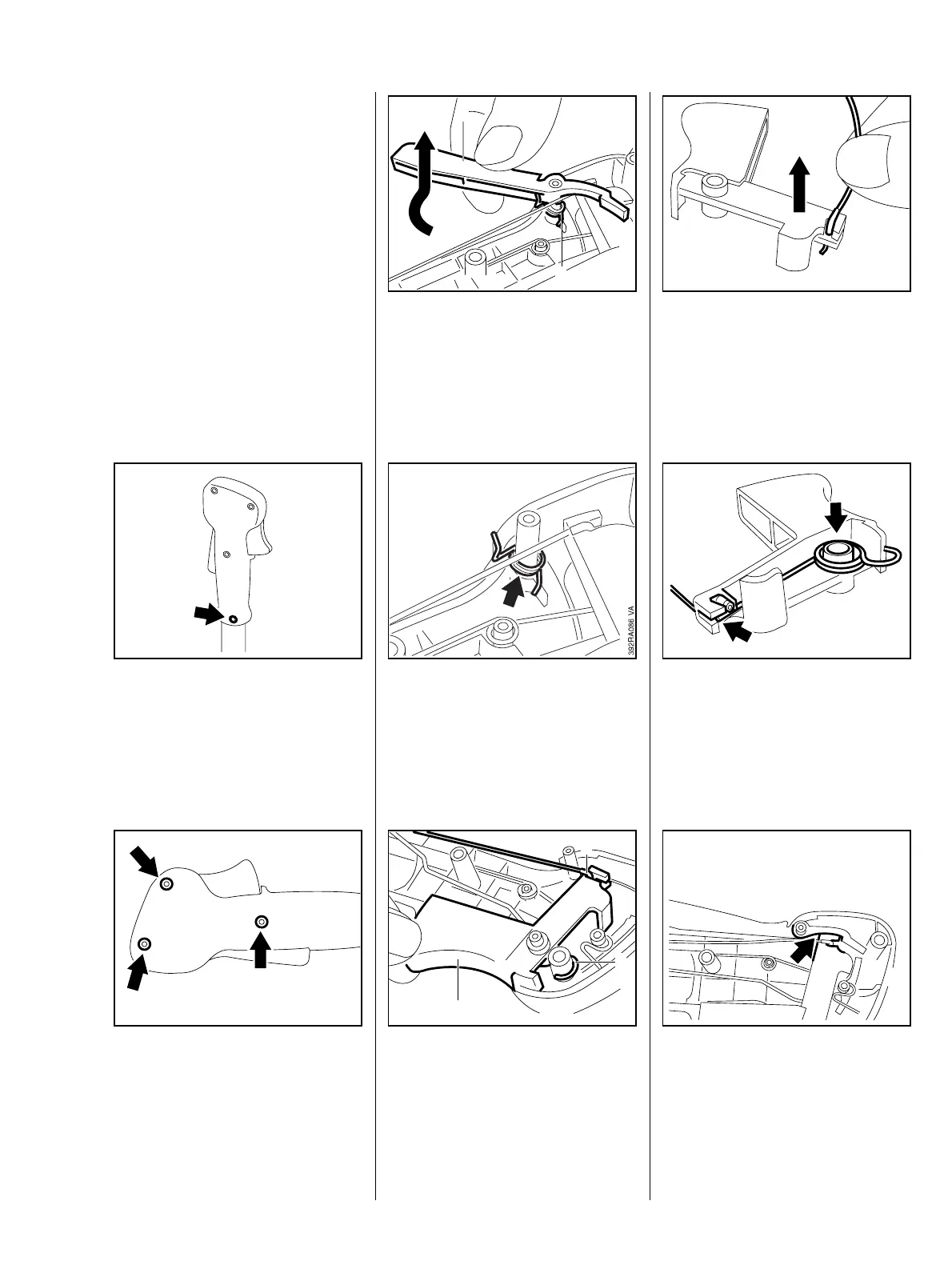

: Take out the screw (arrow).
: Pull the handle off the handlebar.
392RA083
VA
: Take out the screws (arrows).
– Separate the handle moldings.
936RA429
VA
: Lift the interlock lever (1) slightly
and turn it sideways until the
torsion spring (2) is relaxed.
: Pull the interlock lever off the
pivot.
VA
936RA425
1
2
: Remove the torsion spring
(arrow).
: Pull the throttle trigger (1) with
torsion spring (2) and attached
throttle cable (3) off the pivot.
VA
936RA426
3
1
2
: Disconnect throttle cable from
the throttle trigger.
Install in the reverse sequence.
VA
936RA427
: After attaching the throttle cable,
fit the torsion spring over the pivot
(arrow) and push its long leg into
the slot.
392RA089
VA
: The interlock lever must be
behind the throttle trigger.
– Tighten down the handle molding
mounting screws firmly, b 3.2
392RA090
VA
8.6 Control Handle on Bike Handle up to 2002
8.6.1 Throttle Trigger/Interlock Lever
