36 FC 75, FC 85, FH 75, FS 75, FS 80, FS 85, HL 75, KM 85, KW 85

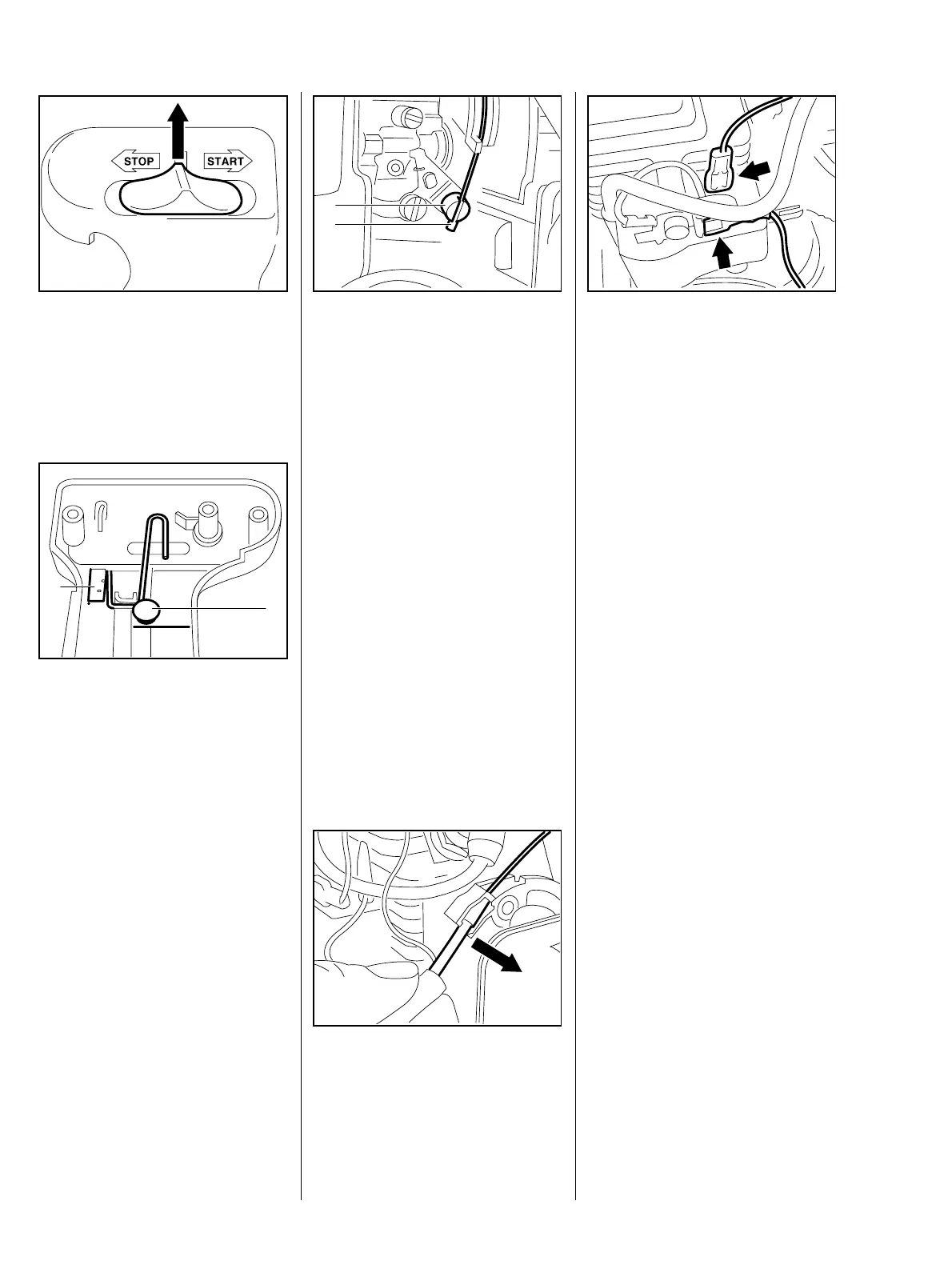

: Pull the slide control out of the
handle molding.
VA
936RA148
: Pull out the rivet (1).
: Remove the contact spring (2).
Install in the reverse sequence.
The contact spring must engage the
annular groove in the collar screw.
VA
936RA149
2
1
FS 75, 80, 85 only
– Remove the shroud, b 5.1
: Disconnect throttle cable nipple
(1) from slotted pin (2) on
carburetor’s throttle lever.
VA
936RA150
2
1
: Pull the throttle cable out of the
tensioner.
VA
936RA151
: Pull the connectors (arrows) off
the tags on the ignition module.
– Remove the throttle trigger,
b 8.5.1
– Pull the short circuit wires off the
connector tags in the control
VA
936RA152
handle, b 8.5.2
Install in the reverse sequence.
Position the short circuit wires,
throttle cable and tube correctly in
the inner handle molding.
8.5.3 Throttle Cable
