– Make sure the throttle cable and
protective tube are correctly
positioned.
– Tighten down the screws firmly,
b 3.2
– Open the throttle wide several
times so that the slide
automatically takes up any slack
in the throttle cable.

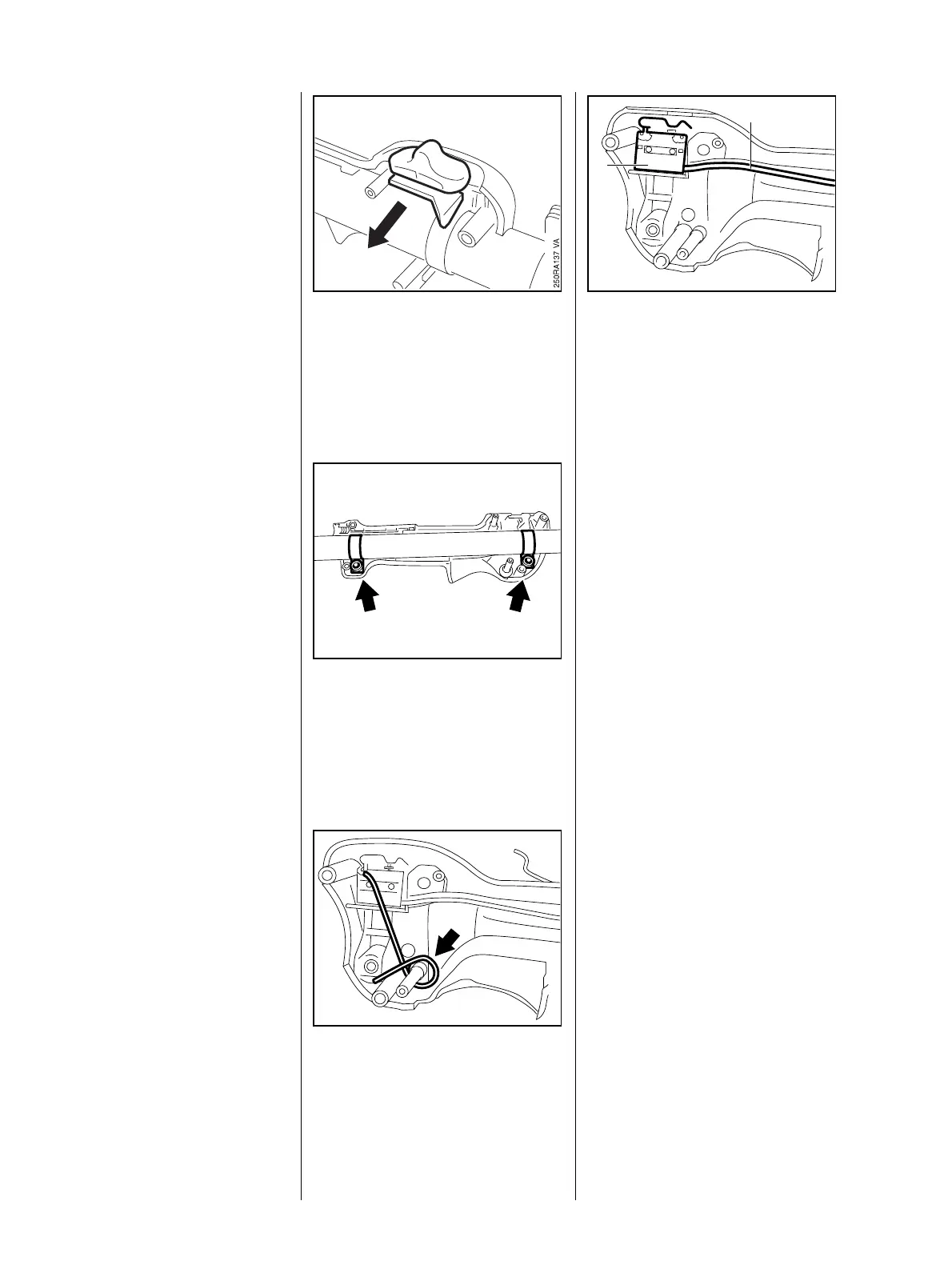

– Remove the interlock lever,
b 8.3.1
: Pull the slide control off the
handle molding.
: Take out the clamp screws
(arrows).
– Remove the handle molding from
the drive tube.
VA
249RA105
: Remove the torsion spring from
the pivot.
936RA438
VA
: Take out the stop switch (1).
Install in the reverse sequence.
: Position the switch’s wire in the
channel (2).
936RA439
VA
2
1
Assemble all other parts in the
reverse sequence.
8.3.2 Contact/Detent Spring
