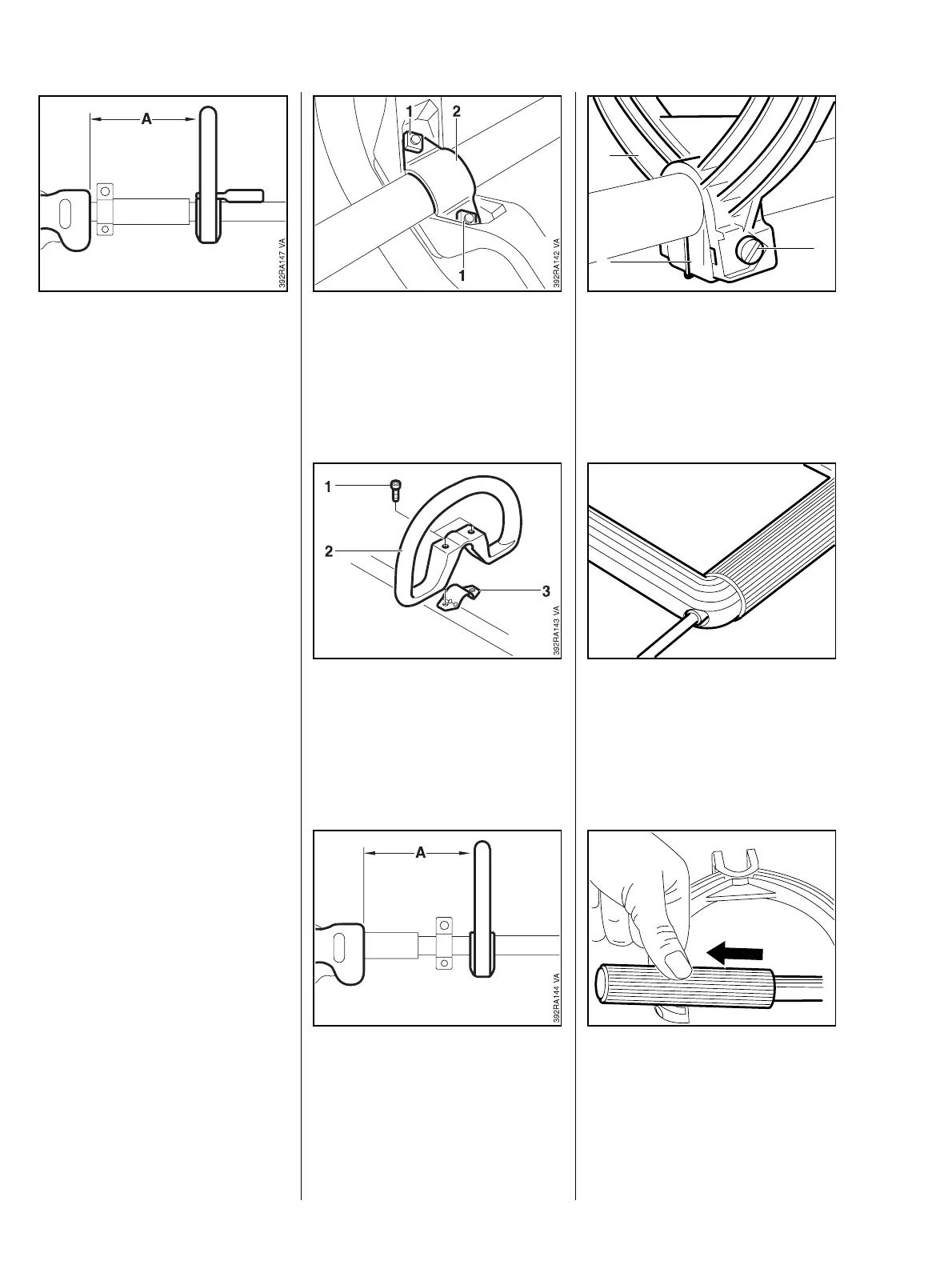

Stihl FC 75 - Barrier Bar; Handle Hose

58 FC 75, FC 85, FH 75, FS 75, FS 80, FS 85, HL 75, KM 85, KW 85
: Position the loop handle (1)
about 20 cm (distance “A“)
forward of the control handle and
tighten it down firmly.
FS 75, KW 85 only
: Unscrew the nuts (1).
: Remove the lower clamp (2).
: Take out the screws (1).
: Remove the loop handle (2) and
upper clamp (3).
Install in the reverse sequence.
: Position the loop handle about
20 cm (distance “A“) forward of
the control handle and tighten it
down firmly.
FC 75, 85, FS 75 only
: Take out the screw (1), pull out
the clamp block (2) and remove
the loop handle (3) from the drive
tube.
VA
936RA199
3
1
2
: To replace the handle hose, take
out the screw.
VA
936RA200
: Turn the top of the loop handle to
one side and pull off the handle
hose.
Install in the reverse sequence.
VA
936RA201
10.2.2 Loop Handle without
Barrier Bar
10.2.3 Loop Handle with
Handle Hose
