The loop handle comes in two different
versions.
Version A
Mounting the loop handle
N Position the loop handle (1) on the
drive tube, about 8 in (20 cm) (A) in
front of the control handle (2).
N Place the clamp (3) against the
drive tube and push it into the loop
handle.
N Fit the square nut (4) in the loop
handle, insert the clamp screw (5)
from the other side and tighten it
down firmly.
Lining up the loop handle
N Line up the loop handle and move it
to the most comfortable position.
N Loosen the screw (5).
N Move the loop handle along the
drive tube as required – tighten
down the screw firmly.
Version B
Your new power tool comes with the
loop handle mounted on the drive tube,
but it must be turned and lined up to suit
your requirements.
Lining up the loop handle
N Use the combination wrench to
loosen the screw (1).
N Turn the handle to the vertical
position.
The loop handle can be adjusted to suit
the height and reach of the operator and
the application by changing
distance (A).
Recommendation: distance (A):
about 6 in (15 cm)

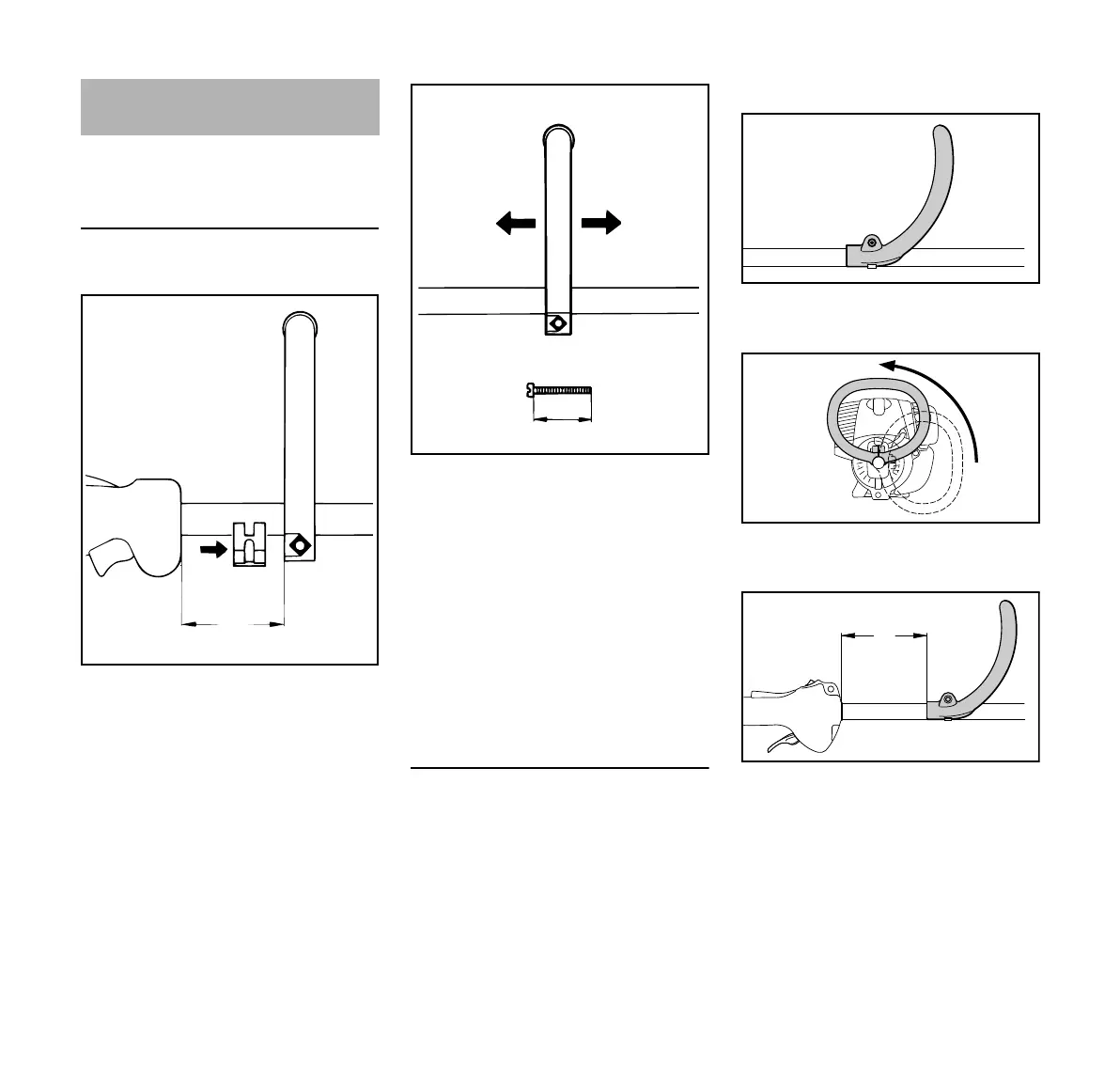

Mounting the Loop Handle
3
355BA030 KN
1
2
A
343BA023 KN
5
4
50 mm
( 2" )
1
239BA008 KN
239BA009 KN
239BA010 KN
A
