Stihl FS 360 C User Manual

FS 260 C, FS 360 C
English
19

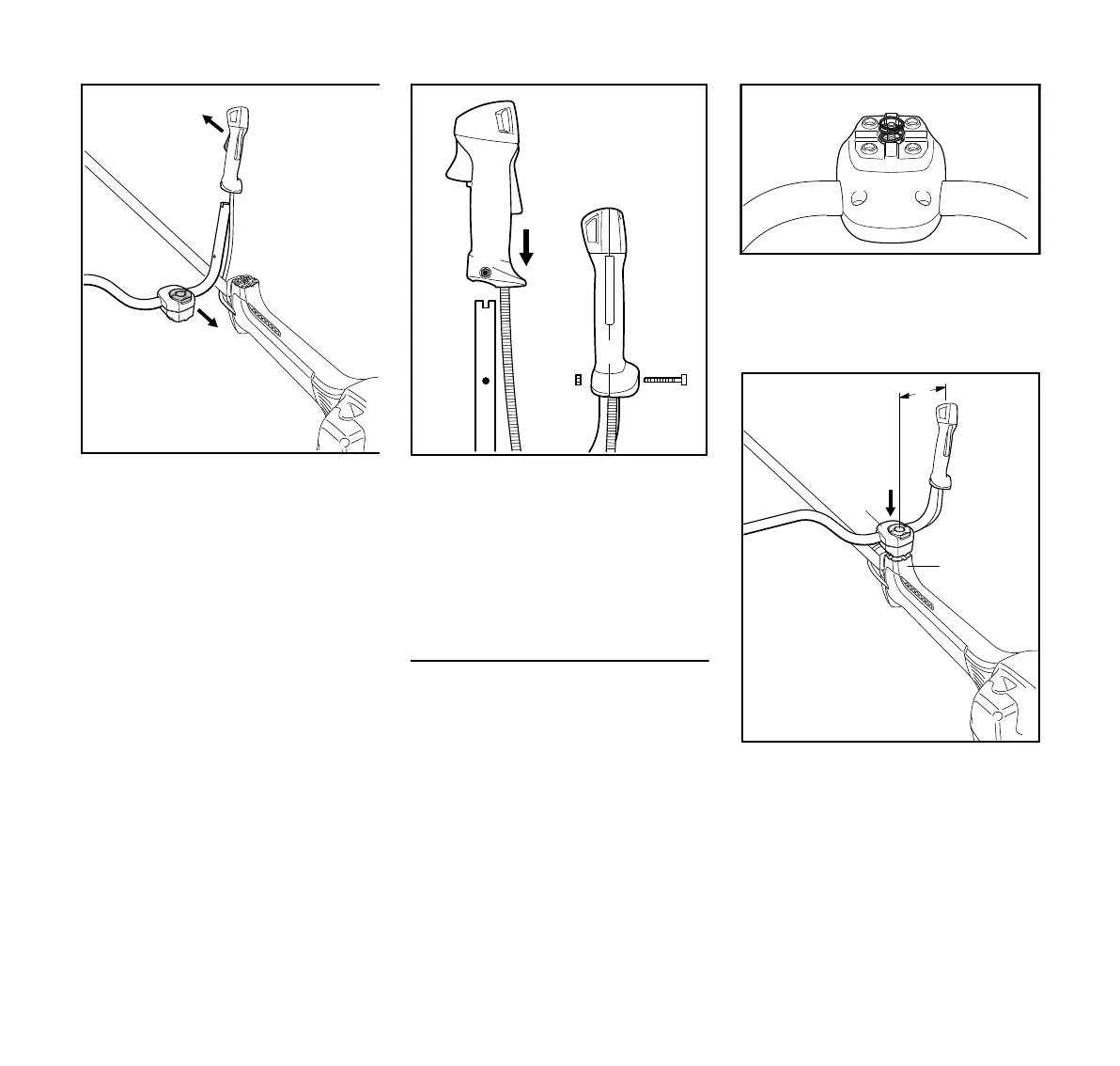

N Line up control handle (5) in relation
to handlebar (2): Throttle trigger (6)
must point toward the gearbox and
the clamp screw (7) toward the
engine.
N Holding the control handle (5) in
that position, push it on to the end of
the handlebar (2) and line up the
holes (8).
N Fit the nut (4) in the control
handle (5), insert the screw (3) and
tighten it down firmly.
Assembling the Handle Support
To assemble the swivelling handle
support it is necessary to fit a spring in
the clamps and secure them to the
handle support on the machine.
N Use the spring (9) from the parts kit
supplied with the machine.
N Place the spring (9) in the lower
clamp molding (10).
N Position the clamp moldings (1) with
handlebar (2) on the handle
support (11).
7
5
6BA002 KN
6
2
8
6BA019 KN
2
8
3
5
4
6BA001 KN
9
10
11
1
6BA020 KN
2
A
