Stihl FS 360 C - Mounting the Bike Handle

FS 260 C, FS 360 C
English
18
2 STIHL AutoCut 40-2
3 STIHL TrimCut 41-2
4 STIHL DuroCut 40-4
5 STIHL PolyCut 41-3
Metal cutting attachments
6 Grass cutting blade 230-4
(Ø 230 mm)
7 Grass cutting blade 255-8
(Ø 255 mm)
8 Brush knife 300-3
(Ø 300 mm)
9 Scratcher tooth circular saw blade
200
(Ø 200 mm)
10 Chisel tooth circular saw blade 200
(Ø 200 mm)
11 Scratcher tooth circular saw blade
225
(Ø 225 mm)
12 Chisel tooth circular saw blade 225
(Ø 225 mm)
WARNING
Non-metal grass cutting blades, brush
knives and circular saw blades are not
approved.
Deflectors, Limit Stops
13 Deflector for mowing heads
14 Deflector for metal cutting
attachments, items 6 to 8
15 Limit stop for circular saw blades,
items 9 and 10
16 Limit stop for circular saw blades,
items 11 and 12
Harness
17 Full harness must be used
WARNING
Based on the cutting attachment being
used:
Choose the proper deflector in order to
reduce the risk of injury from thrown
objects and contact with the cutting
attachment.
Make sure your unit is equipped with the
proper handle and harness in order to
reduce the risk of injury from loss of
control and contact with the cutting
attachment.
Use grass cutting metal blades, brush
knifes and circular saw blades on this
unit only if equipped with a bike handle.
Do not use rigid polymer blades on this
unit.

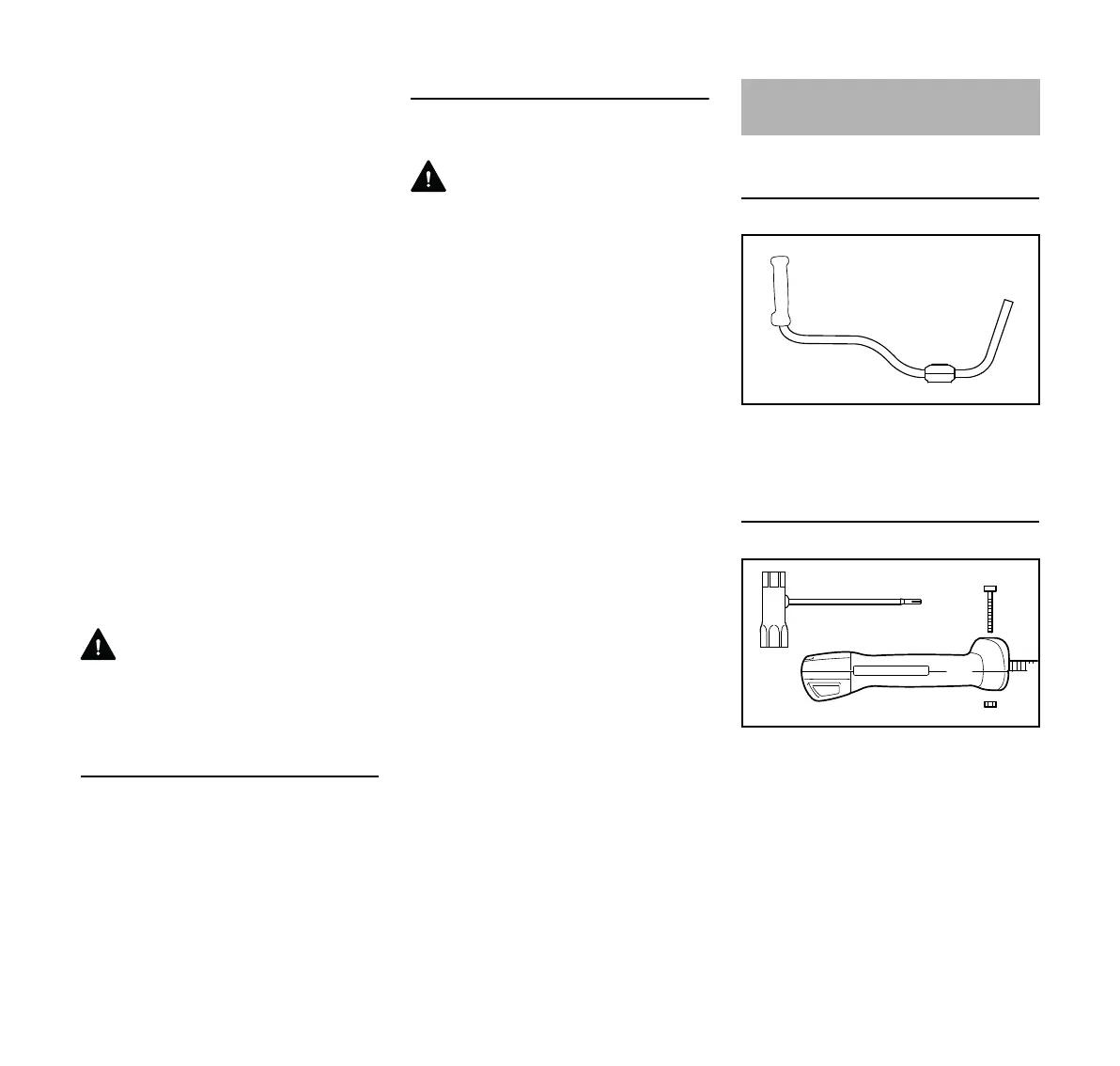

Mounting Bike Handle with Swivelling
Handle Support
The machine is supplied with the clamp
moldings (1) mounted to the
handlebar (2).
Mounting the Control Handle
N Take out the screw (3) and remove
the nut (4) from the control
handle (5).
Mounting the Bike Handle
2
1
6BA018 KN
3
4
5
002BA352 KN
