Stihl FS 460 Service Manual

79FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M

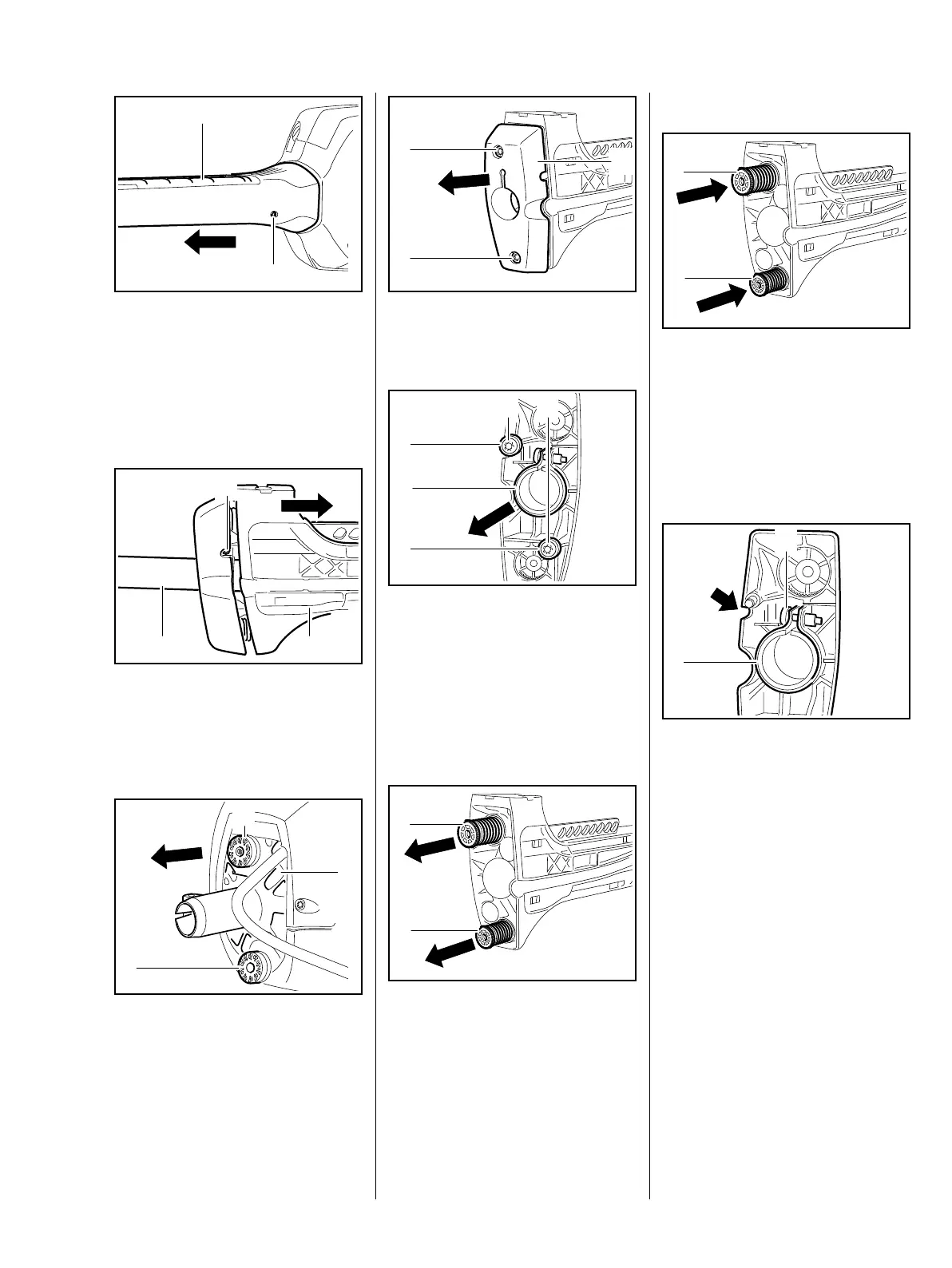

: Loosen screw (1) on underside of
the antivibration housing (2)
: Pull out drive tube assembly with
antivibration housing (2) at the
clutch housing
: Loosen screw (1) and remove
complete antivibration
housing (2) from drive tube
assembly (3)
: Remove rubber buffers (1) from
clutch housing (2)
5904RA224 TG
1
2
5904RA225 TG
1
3 2
5904RA226 TG
1
1
2
: Remove screws (1) and pull out
support (2)
– Examine clamp, annular buffers
and support, replace if necessary
: Pull annular buffers (1) over the
spring nuts (2) and remove
: Lever off the clamp (3)
– Insert screwdriver through the
holes in the plugs of the large
anitvibration spring (1) and small
antivibration spring (2
: Remove the screws and
antivibration springs
5904RA227 TG
1
1
2
5904RA228 TG
1
1
2 2
3
5904RA550 TG
1
2
Installation
– Insert screwdriver through the
holes in the plugs of the large
anitvibration spring (1) and small
antivibration spring (2)
: Screw the screw into the
antivibration housing and fasten
antivibration springs
: Push the clamp (1) on so that the
head of the screw (2) points
toward the recess (arrow)
– Coat inside of annular buffer with
STIHL press fluid, b 14
5904RA549 TG
1
2
5904RA233 TG
1
2

Stihl FS 460 Specifications

General

Cutting Diameter	480 mm
Idle Speed	2, 800 rpm
Ignition System	Electronic
Carburetor	All-position diaphragm carburetor
Vibration Damping	Yes
Shaft Type	Straight
Fuel Capacity	0.75 liters
Maximum Power Speed	9500 rpm
Shaft Length	1, 800 mm
