Stihl FS 460 Service Manual

80 FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M

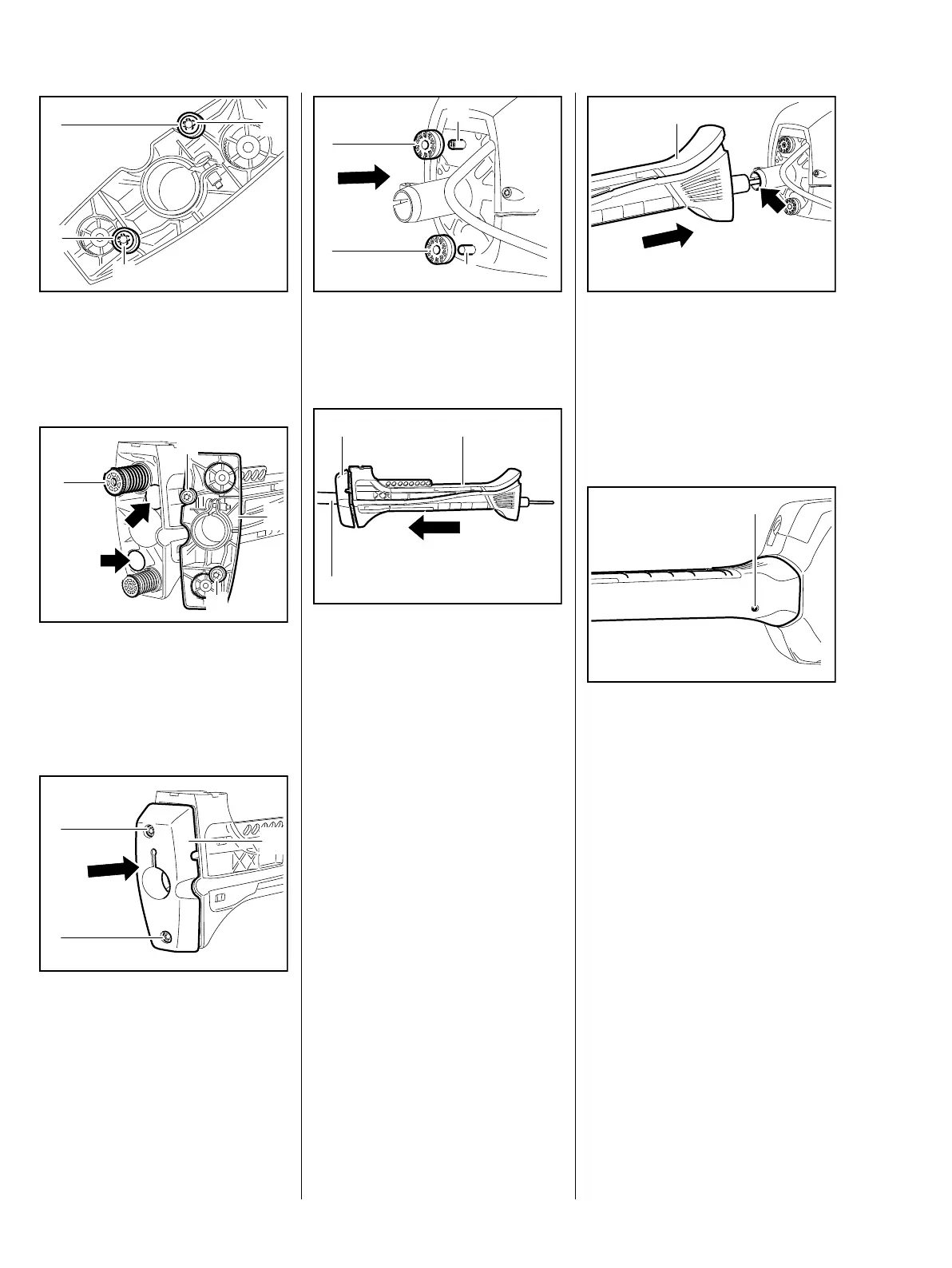

: Push annular buffers (1) over the
spring nuts (2)
– Annular buffers must be
completely behind the spring nuts
: Orient support (1) so that the
large spring recess engages the
large antivibration spring (2) and
the annular buffers (3) align with
the holes (arrows)
: Press on the support (1) and hold
it in place – the bearing plugs are
seated in the serrations and can
no longer twist
: Insert and tighten down the
screws (2)
5904RA234 TG
1
1
2
2
5904RA235 TG
1
2
3
3
5904RA236 TG
1
2
2
: Press the rubber buffers (1) onto
the plugs (2) of the clutch
housing as far as they will go
: Orient antivibration housing (1)
so that the support (2) faces the
drive tube assembly (3)
: Push the antivibration
housing (1) onto the end of the
drive tube assembly (3) with the
built-in shakeproof washer until
the drive tube assembly (3)
protrudes a little on the opposite
side
5904RA237 TG
1
2
1
2
5904RA238 TG
12
3
– Apply STIHL press fluid to the
outside of the rubber buffer,
b 14
: Insert the drive tube assembly (1)
in the hole (arrow) of the clutch
housing as far as it will go
: Orient drive tube assembly and
tighten screw (1)
– Drive tube assembly is
clamped and secured
5904RA239 TG
1
5904RA260 TG
1
