81FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M

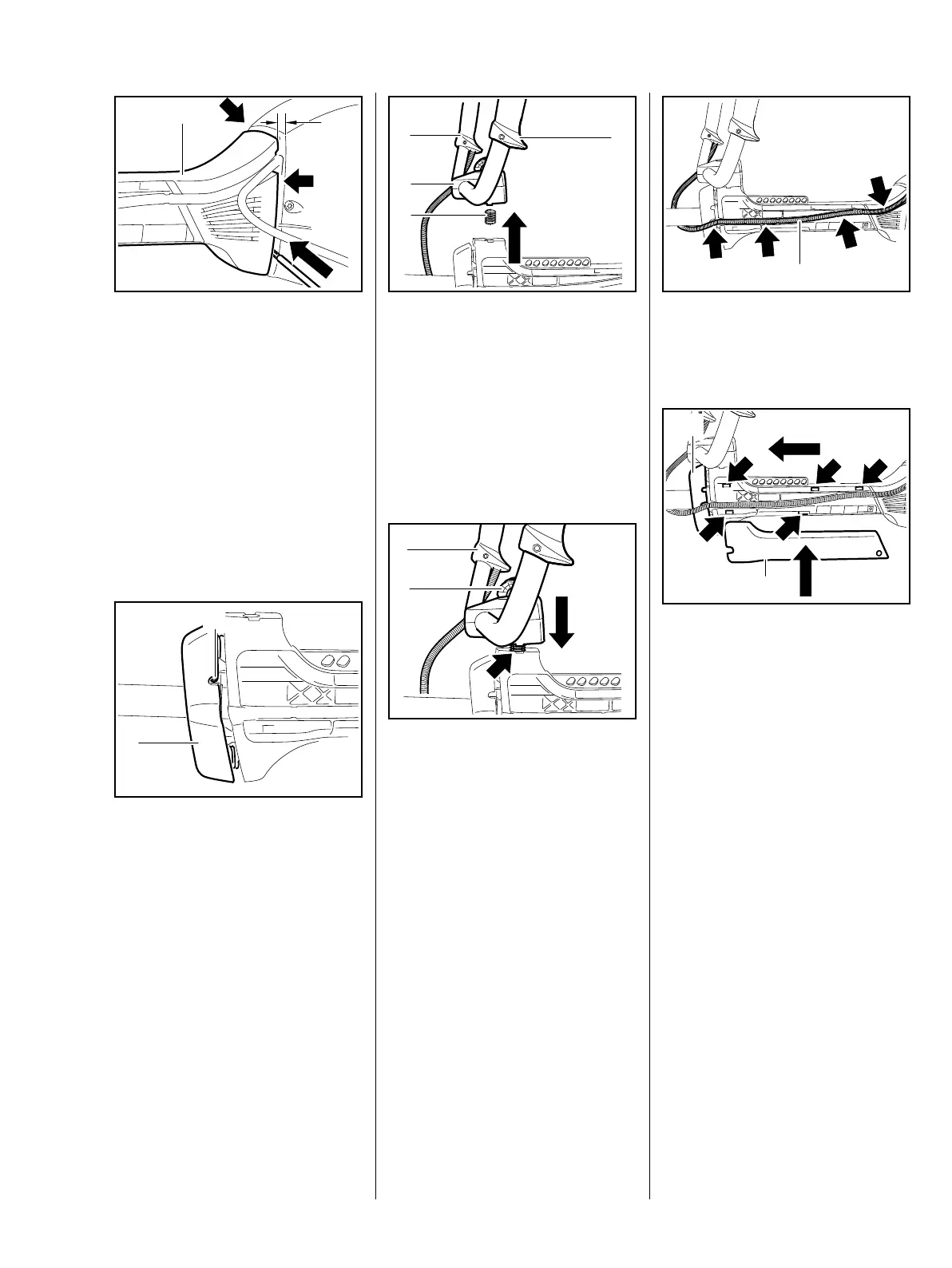

: Push the antivibration
housing (1) into the rubber
buffer, so that a circumferential
gap(arrows) of a=6mm
between it and the shroud/
protective hip plate results
– Hold the antivibration housing (1)
in this position
– Through the gap, check that the
rubber buffers are seated
properly
: Tighten screw (1) through the
opening in the support (2)
– Antivibration housing is
clamped and secured
– Position bike handle on
antivibration housing so that the
throttle cable is routed under the
drive tube assembly – narrow
side of the support and clamping
screw must face the cutting
attachment
5904RA253 TG
a
1
5904RA254 TG
1
2
: Orient bike handle (1) so that the
control handle (2) is on the
muffler side
: Slide spring (3) into the mount on
the clamp (4)
Throttle cable must be routed under
the drive tube assembly.
: Position bike handle (1) on profile
of the antivibration housing and
insert clamping screw (2) in the
thread (arrow) and tighten it
5904RA255 TG
1
4
3
2
: Starting at the engine, insert the
throttle cable (1) in the
guide (arrows)
: Position fairing (1) with the hooks
in the openings (arrows) and
slide toward support (2)
– Insert and tighten down the screw
5904RA257 TG
1
5904RA258 TG
1
2
