FS 510 C-M, FS 560 C-M
English
14
3 Handlebar for machines used
mainly for sawing, but also for
mowing and brushcutting.
The machine is supplied with the clamp
moldings (4) mounted on the handlebars
(2, 3).
N Do not change the position of the
clamp moldings on the handlebar
until it is mounted on the handle
support.
The mounting procedure is the same for
both types of handlebar. Therefore, the
following description only shows
handlebar (2).

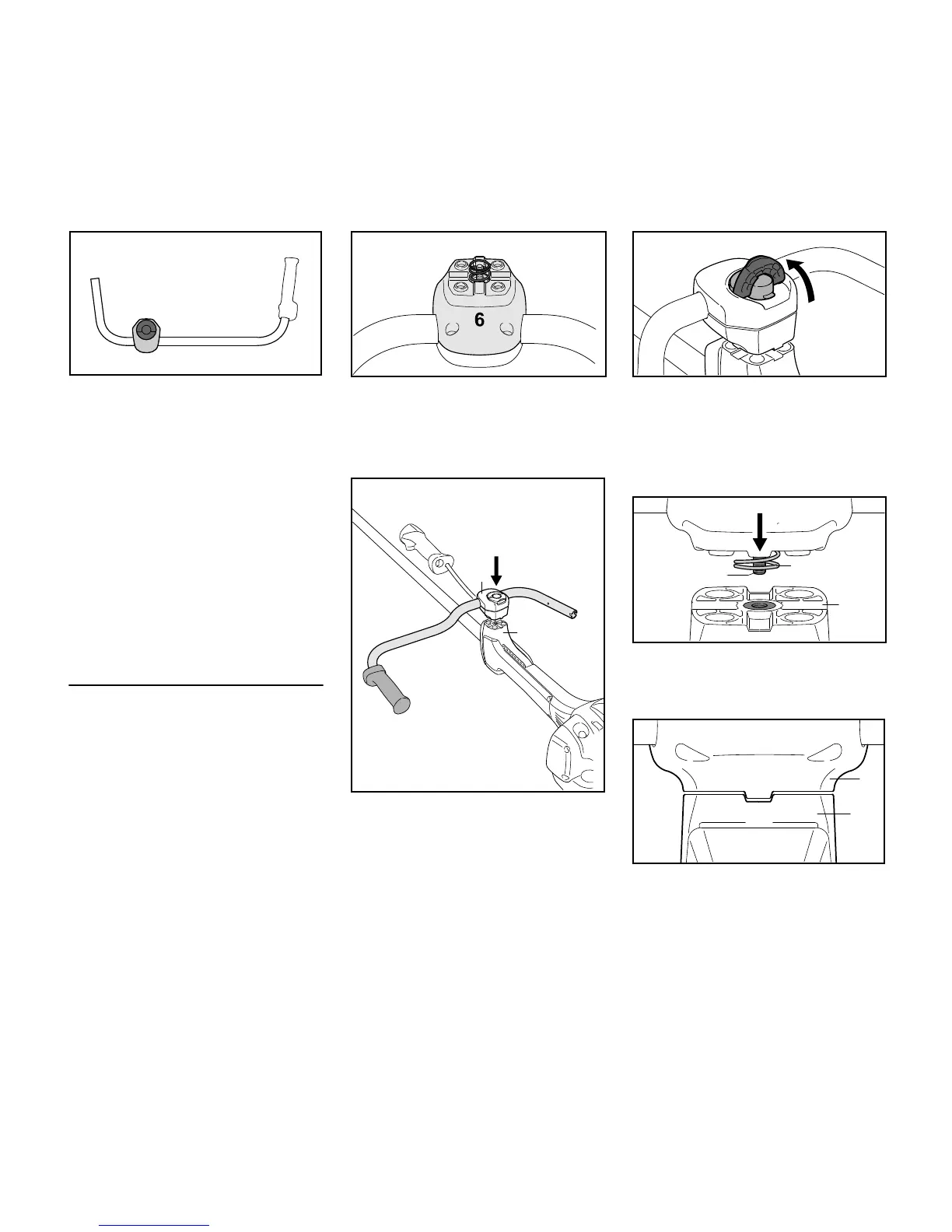

Mounting the Handlebar
Assembly of the swivelling handle
support involves equipping the clamp
moldings with a spring and mounting
them on the handle support.
N Use the spring (5) from the parts kit
supplied with the machine.
N Push the spring (5) into the lower
clamp molding (6).
N Position the clamp moldings (4) with
handlebar (2) on the handle support
(7).
N Do not turn the handlebar in the
clamp moldings.
N Raise the grip of the wing screw (8)
to the upright position.
N Rotate the wing screw
counterclockwise and tighten it only
moderately.
N Position wing screw (8) in threaded
insert in handle support (7) – against
pressure of spring (5).
N Position the clamp moldings so that
the tabs (9) on the lower clamp
molding (6) line up with the slots
(10) in the handle support (7).
2BA001 KN
4
3
3BA005 KN
5
4900BA002 KN
7
2
4
8
3BA007 KN
5
8
3BA008 KN
7
6
10
7
9
3BA0009 KN
