Stihl FS 55R - Mounting the Loop Handle

FS 55, FS 55 C, FS 55 R, FS 55 RC
English
13

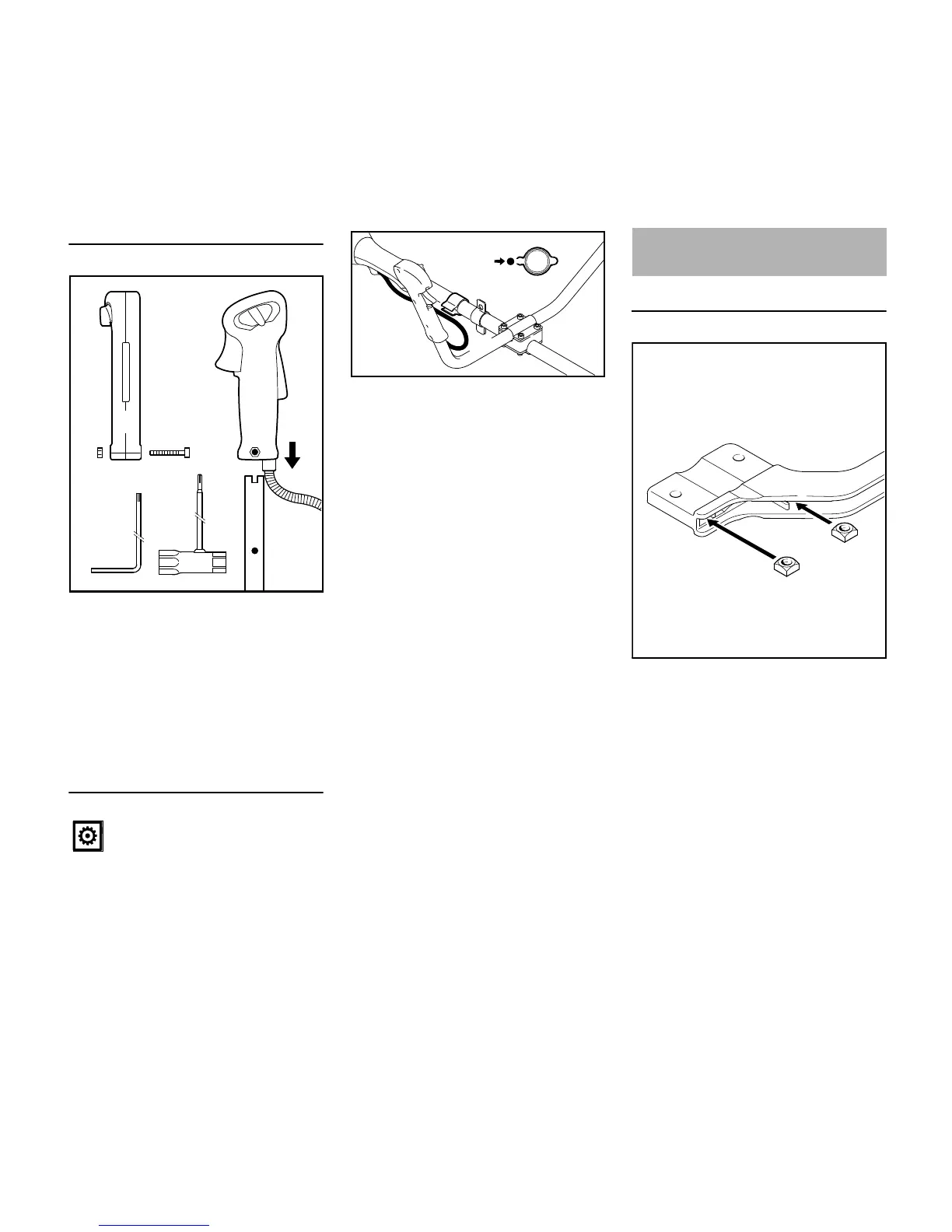

Attaching the control handle
N Unscrew bolt (8) with a combination
wrench or Allen wrench – the nut (9)
remains in the control handle (10)
N Push the control handle with the
throttle trigger (11) facing toward
the gearbox onto the handlebar (4)
until the holes (12) align
N Screw in the bolt (8) and tighten up
Fasten the throttle cable
N Press throttle cable (13) into the
throttle cable support (14)
Loop handle with barrier bar
N Fit the square nuts (1) in the barrier
bar (2); the holes must line up.
Do not kink the throttle cable or
run it in tight radiuses – the
throttle trigger must move freely!
002BA357 KN
12
8
9
4
11
12
10
14
13
14
13
233BA027 KN
Mounting the Loop Handle
2
002BA098 KN
1
1
