Stihl FS 56 C-E User Manual

FS 56, FS 56 R, FS 56 C, FS 56 RC
English
18

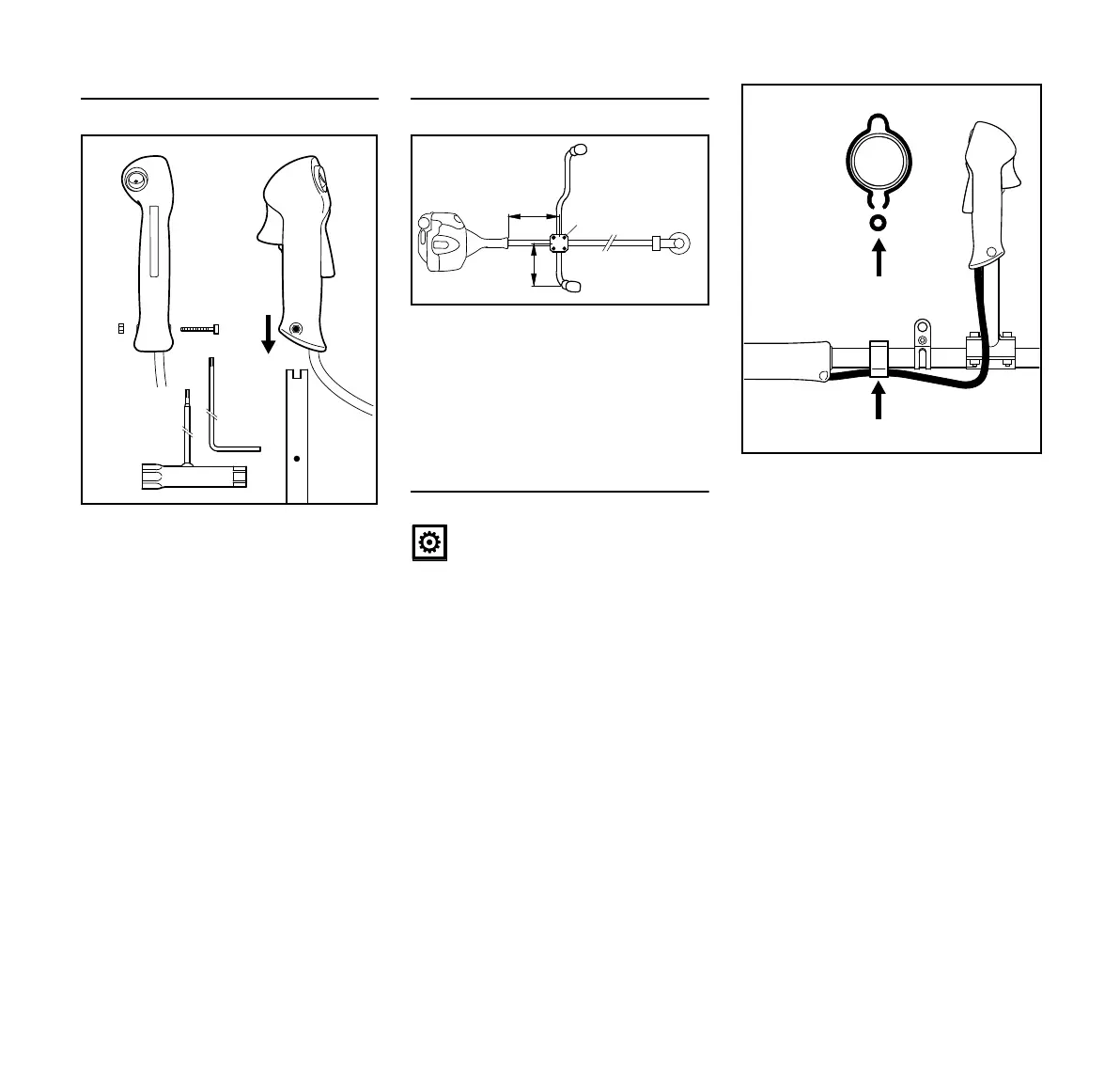

Mounting the control handle
N Take out the screw (1) – the nut (2)
remains in the control handle (3).
N Push the control handle onto the
end of the handlebar (5) until the
holes (6) line up – the throttle
trigger (4) must point towards the
gearbox.
N Insert the screw (1) and tighten it
down firmly.
Adjusting and Securing the Handlebar
N Align the handlebar so that
distance (A) is about 8 in (20 cm)
and distance (B) about 6 in
(15 cm).
N Tighten down the screws (1) firmly
in a crosswise pattern.
Fitting the Throttle Cable
Do not kink the throttle cable or lay it in
tight radii – make sure the throttle trigger
moves freely.
N Push the throttle cable (1) into the
retainer (2).
3
6
547BA027 KN
1
2
4
6
5
A
1
B
002BA275 KN
002BA276 KN
2
1
1
2
