Stihl FS 56 C-E User Manual

FS 56, FS 56 R, FS 56 C, FS 56 RC
English
19
A factory-new machines comes with the
loop handle aready mounted.
Using the barrier bar
A barrier bar may have to be mounted to
suit the tool you intend to use – see
"Approved Combinations of Cutting
Attachment, Deflector, Handle and
Harness."
The barrier bar comes standard with the
machine or is available as a special
accessory.

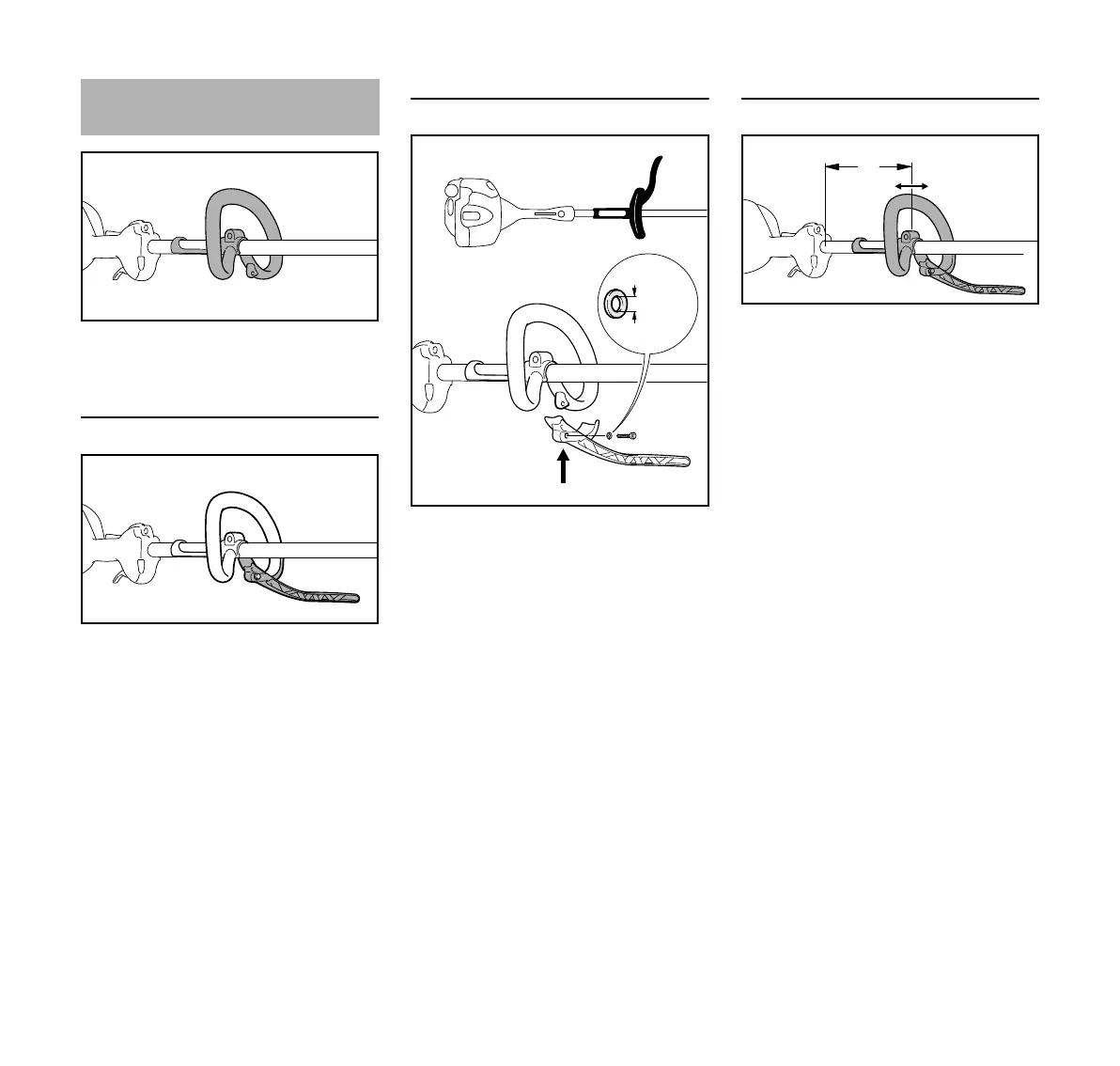

Mounting the barrier bar
N Fit the washer (1) on the M5x23
screw (2).
N Hold the barrier bar (3) against the
loop handle and insert the screw
with washer.
N Tighten down the screw (2) firmly.
Leave the barrier bar permanently
mounted to the loop handle.
Adjusting and securing the loop handle
The loop handle can be adjusted to suit
the height and reach of the operator and
the application by changing
distance (A).
Recommended distance (A): about
14 in (35 cm)
N Loosen the screw on the handle.
N Slide the handle to the required
position.
N Tighten down the screw so that the
handle cannot be rotated on the
drive tube.
Mounting the Loop Handle
547BA004 KN
547BA005 KN
(5,3 mm)
547BA031 KN
1
2
3
0.2 in
547BA007 KN
A
