FS 56, FS 56 R, FS 56 C, FS 56 RC
English
20

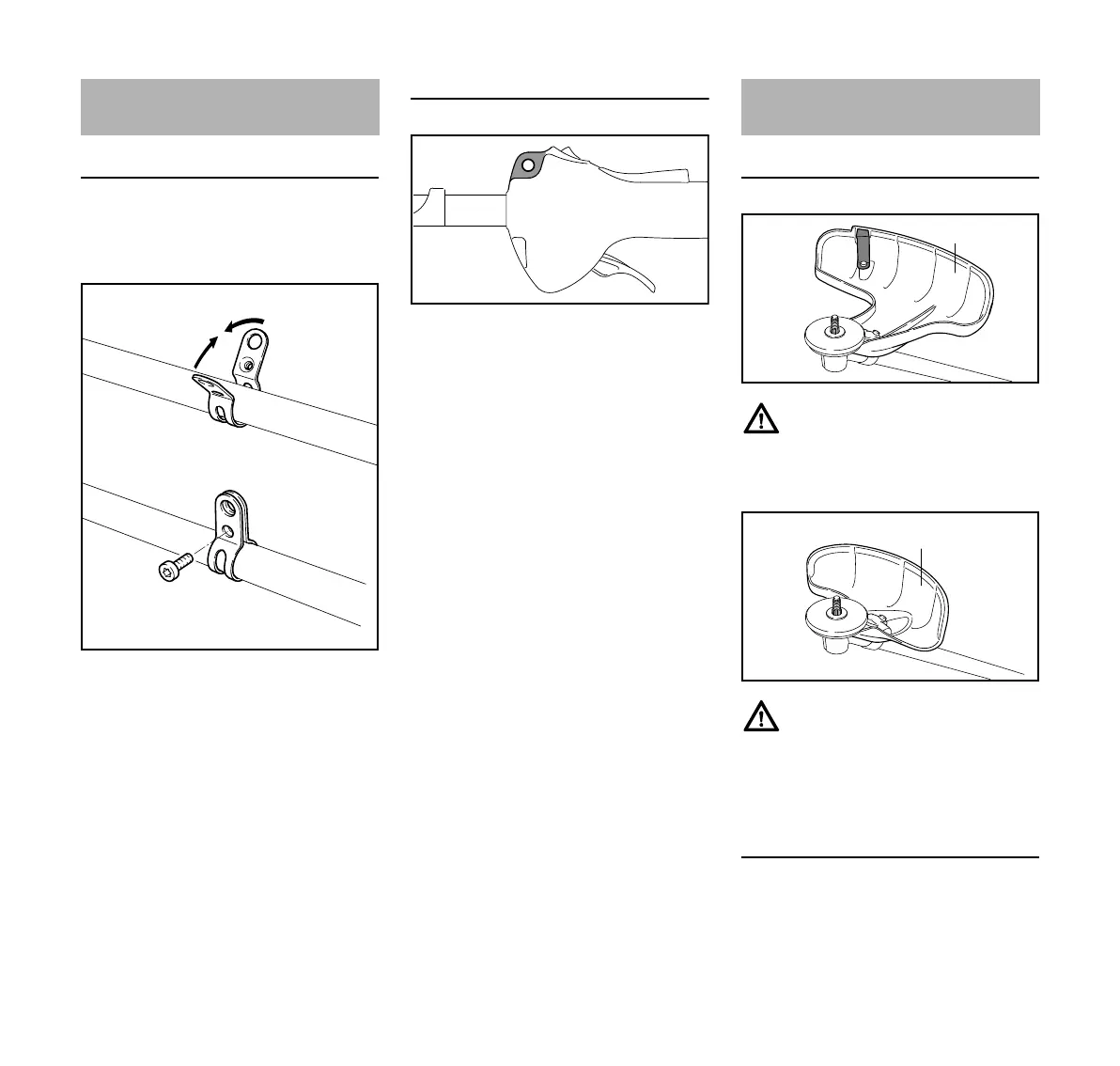

Version with bike handle
The carrying ring comes standard with
the machine or is available as a special
accessory.
N Position of carrying ring: see "Main
Parts".
N Place the clamp (1) against the
drive tube with the tapped hole on
the left (viewed from engine).
N Squeeze the two ends of the clamp
together and hold in that position.
N Insert the M6x14 screw (2).
N Line up the carrying ring.
N Tighten down the screw firmly.
Version with loop handle
The carrying ring is integrated in the
front end of the control handle.
Use the right deflector
Deflector (1) is approved for mowing
heads only and must therefore be
mounted before fitting a mowing head
Deflector (2) is approved for grass
cutting blades only and must therefore
be mounted before fitting a grass cutting
blade.
Mounting the deflector
Deflectors (1) and (2) are both mounted
to the gearbox in the same way.
Fitting the Carrying Ring
002BA142 KN
1
2
1
547BA008 KN
Mounting the Deflector
002BA262 KN
1
002BA263 KN
2
