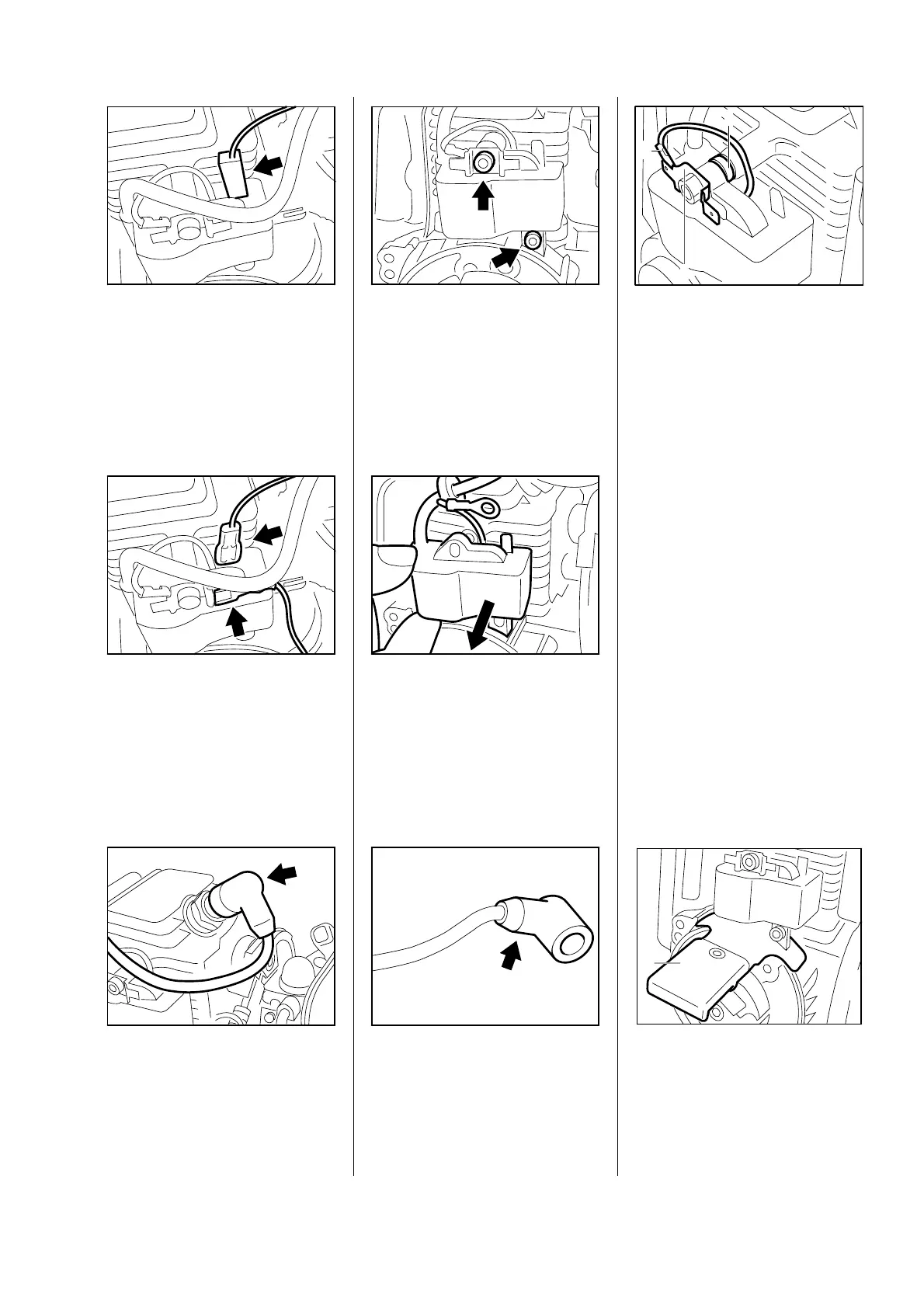

-Removefanhousingwithpro-
tectivetube,see3.1.
•
Disconnectshort-circuitwire
fromsocketonignitionmodule.
•
Inmachineswithtwoshort-
circuitwires,theymustbedis-
connectedfromsocketonigni-
tionmoduleandfromterminal
socket.
•
Pullterminaloffsparkplug.
•
Removescrews.
•
Removeignitionmodule.
•
Removesparkplugterminal,
see5.1.
Note:Theignitionleadisem-
beddedintheignitionmodule.
-Positionignitionmoduleand
insertscrews,butdonottighten
themyet.
•
Securegroundwire(1)and
connectortab(2)forshort-circuit
wiretoupperscrew.
Important!Oneplasticwasher
(3)mustbefittedontheupperand
lowerscrewbetweencylinderand
ignitionmodule.
•
Slidesettinggauge(1)4118890
6401betweenarmsofignition
moduleandflywheelmagnets.
392RA064
3
1
2
VA
392RA058
VA
392RA061
VA
392RA065
1
VA
392RA063
VA
5.2.2 Removalandinstallation
392RA057
VA
392RA062
VA
392RA059
VA
25

Stihl FS 85 Specifications

General

Engine Type	2-stroke
Displacement	25.4 cc
Weight	5.2 kg
Shaft Type	Straight
Starter	Recoil
Vibration Damping	Yes
Power Output	0.95 kW
Fuel Capacity	0.44 liters
