Stihl FS 85 User Manual

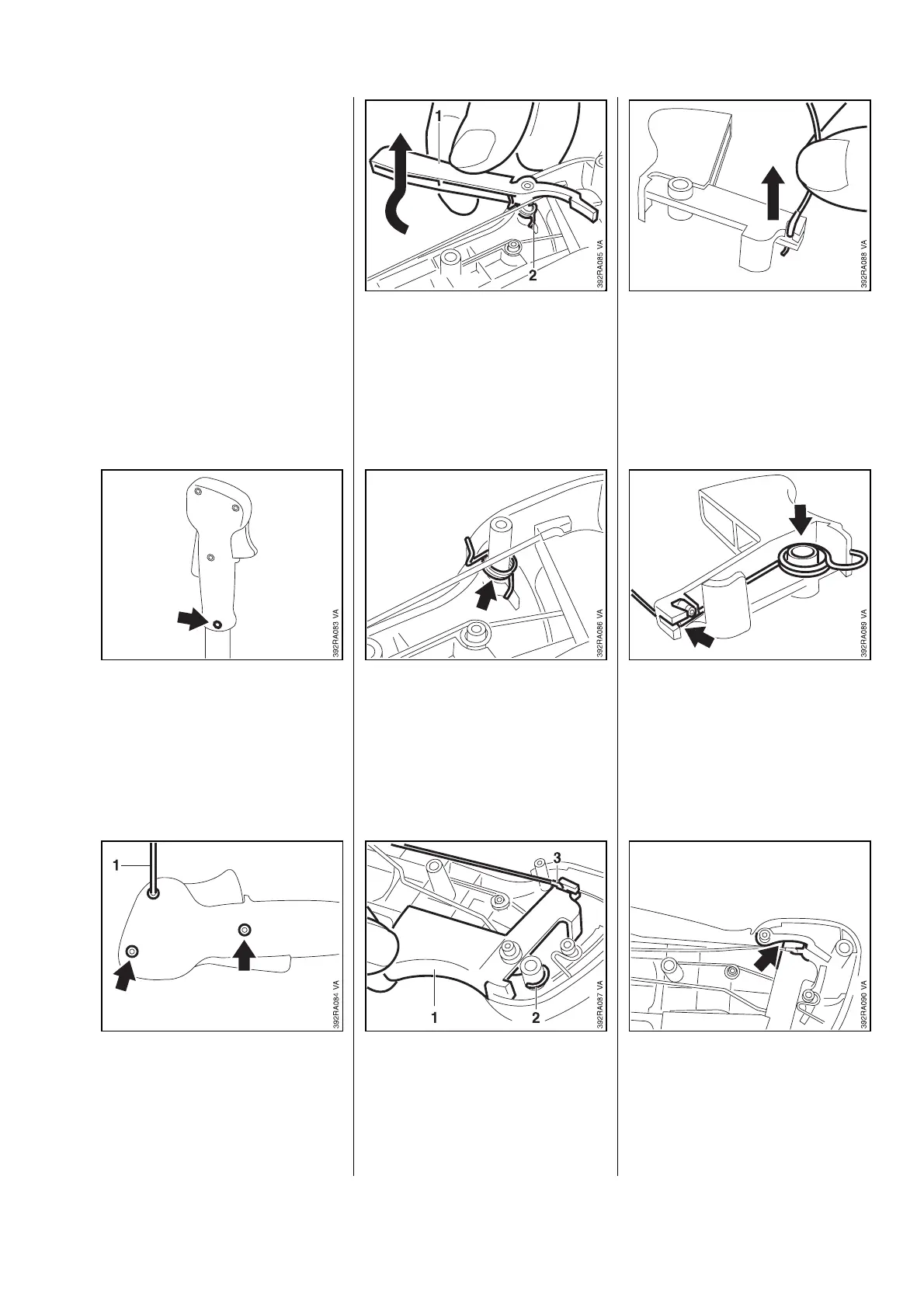

Throttlecablewithoneshort-
circuitwire
•
Removescrew.
-Pulloffhandle.
•
Removescrewswithscrew-dri-
ver(1)59108902301.
-Separatethetwohalvesofthe
handle.
•
Slightlypullupinterlocklever(1)
andturnitasideuntiltorsion
spring(2)isrelaxed.
•
Drawinterlockleveroffitspivot
pin.
•
Unhooktorsionspring.
•
Pullthrottletrigger(1)withtor-
sionspring(2)andfittedthrottle
cable(3)offitspivotpin.
•
Unhookthrottlecablefrom
throttletrigger.
Thepartsareassembledinrever-
seorder.
•
Afterhookinginthethrottle
cable,sliptorsionspringoverpi-
votpinandslidethelonglegof
thespringintotheslot.
•
Theinterlocklevermustlie
behindthethrottletrigger.
-Screwbothhalvesofthehandle
togetherwithatorqueof2.5Nm.
7. Throttlecontrol
7.1 Throttletrigger/interlocklever
31

Stihl FS 85 Specifications

General

Engine Type	2-stroke
Displacement	25.4 cc
Weight	5.2 kg
Shaft Type	Straight
Starter	Recoil
Vibration Damping	Yes
Power Output	0.95 kW
Fuel Capacity	0.44 liters
