HT 105, HT 134, HT 135
English
17

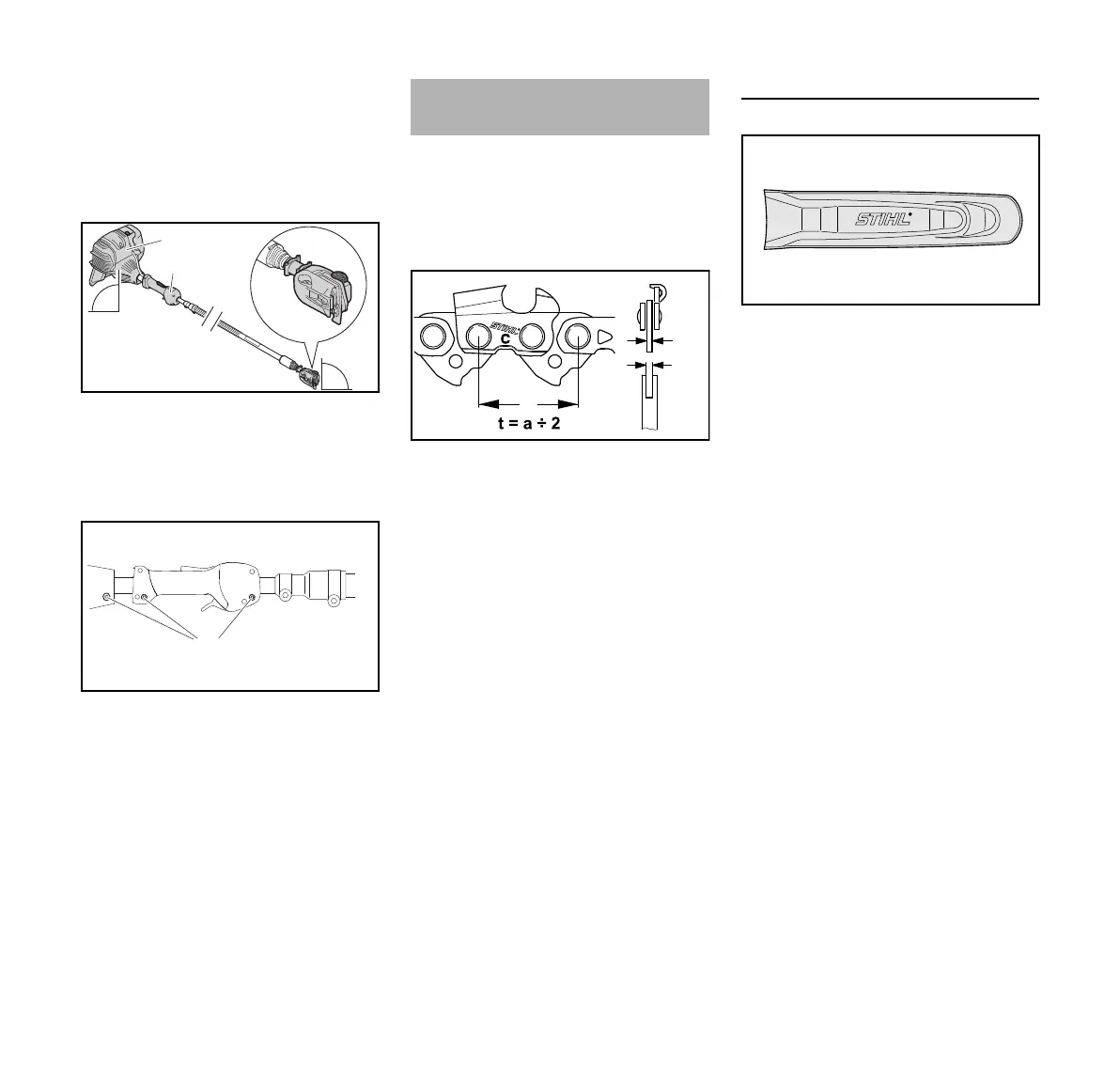

housing (11). This may require
rotating the drive shaft back and
forth until they align.
N Push it into the motor housing (11)
until c = 0.8 in. (2 cm) and d =
1.2 in. (3 cm).
N Align the motor housing (11),
control handle (10) and gearbox (3)
as shown. Make sure the fuel cap,
stop switch and oil cap are all facing
up.
N Tighten the screws (12).
A cutting attachment consists of the saw
chain, guide bar and chain sprocket.
The cutting attachment that comes
standard is designed to exactly match
the pole pruner.
– The pitch (t) of the saw chain (1),
chain sprocket and the nose
sprocket of the Rollomatic guide bar
must match.
– The drive link gauge (2) of the saw
chain (1) must match the groove
width of the guide bar (3).
If non-matching components are used,
the cutting attachment may be damaged
beyond repair after a short period of
operation.
Chain scabbard
Your pole pruner comes standard with a
chain scabbard that matches the cutting
attachment.
If you use guide bars of different lengths
on the pole pruner, the length of the
chain scabbard must be matched to the
guide bar to reduce the risk of injury. It
should cover the full length of the guide
bar.
The length of the matching guide bars is
marked on the side of the chain
scabbard.
11
10
3
90°
90°
0000098529_001
12
0000098594_001
Cutting Attachment
