Stihl HT 135 User Manual

HT 105, HT 134, HT 135
English
41
1 Handle Hose (HT 134)
2 Fixed Drive Tube (HT 134)
3 Carrying Ring (HT 134)
4 Stop Switch
5 Throttle Trigger Lockout
6 Choke Knob
7 Air Filter Cover
8 Fuel Tank
9 Throttle Trigger
10 Carrying Ring (HT 105, HT 135)
11 Handle Hose (HT 105, HT 135)
12 Telescopic Drive Tube (Shaft)
(HT 105, HT 135)
13 Oil Filler Cap
14 Oilomatic Saw Chain
15 Guide Bar
16 Oil Tank
17 Clamp Nut (HT 105, HT 135)
18 Chain Sprocket Cover
19 Hook
20 Chain Guard (Scabbard)
21 Chain Tensioner
22 Limbing Sight
23 Chain Sprocket
24 Machine Support
25 Fuel Tank
26 Fuel Filler Cap
27 Carburetor Adjusting Screws
28 Manual Fuel Pump
29 Starter Grip
30 Cover
31 Muffler (with Spark Arresting
Screen)
# Serial Number

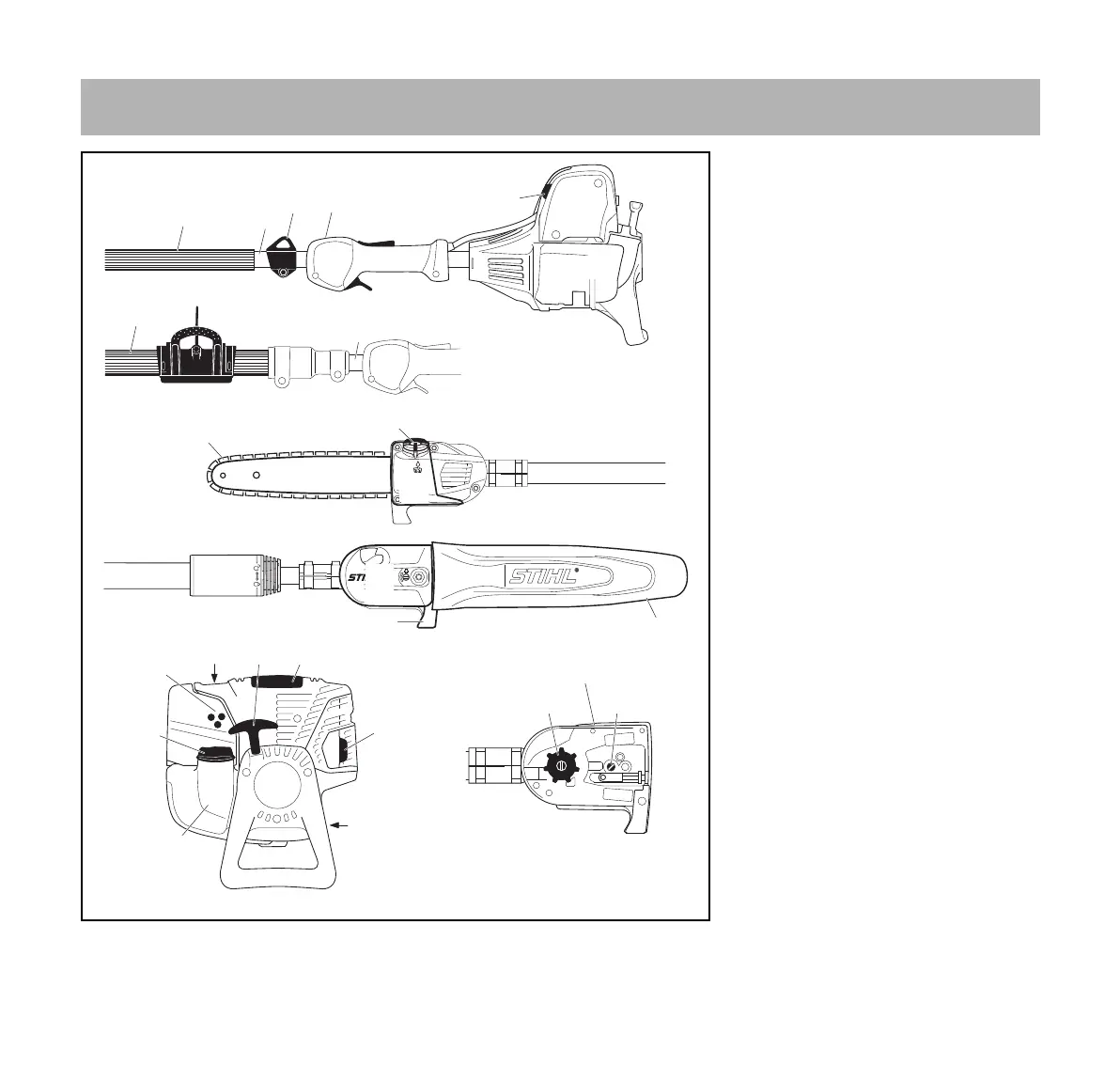

Main Parts
5
7
8
9
10
#
25
26
27
28 29
4
3
1
11
12
2
6
14
13
16
18
24
15
17
19
20
21
31
30
23
22
0000097199_002

Stihl HT 135 Specifications

General

Displacement	36.3 cc
Bar Length	30 cm
Power Source	Gasoline
Weight	7.9 kg
Fuel Capacity	0.53 L (17.9 oz.)
Overall Length	270 cm (106.3 in)
