Stihl HT 135 User Manual

HT 105, HT 134, HT 135
English
24

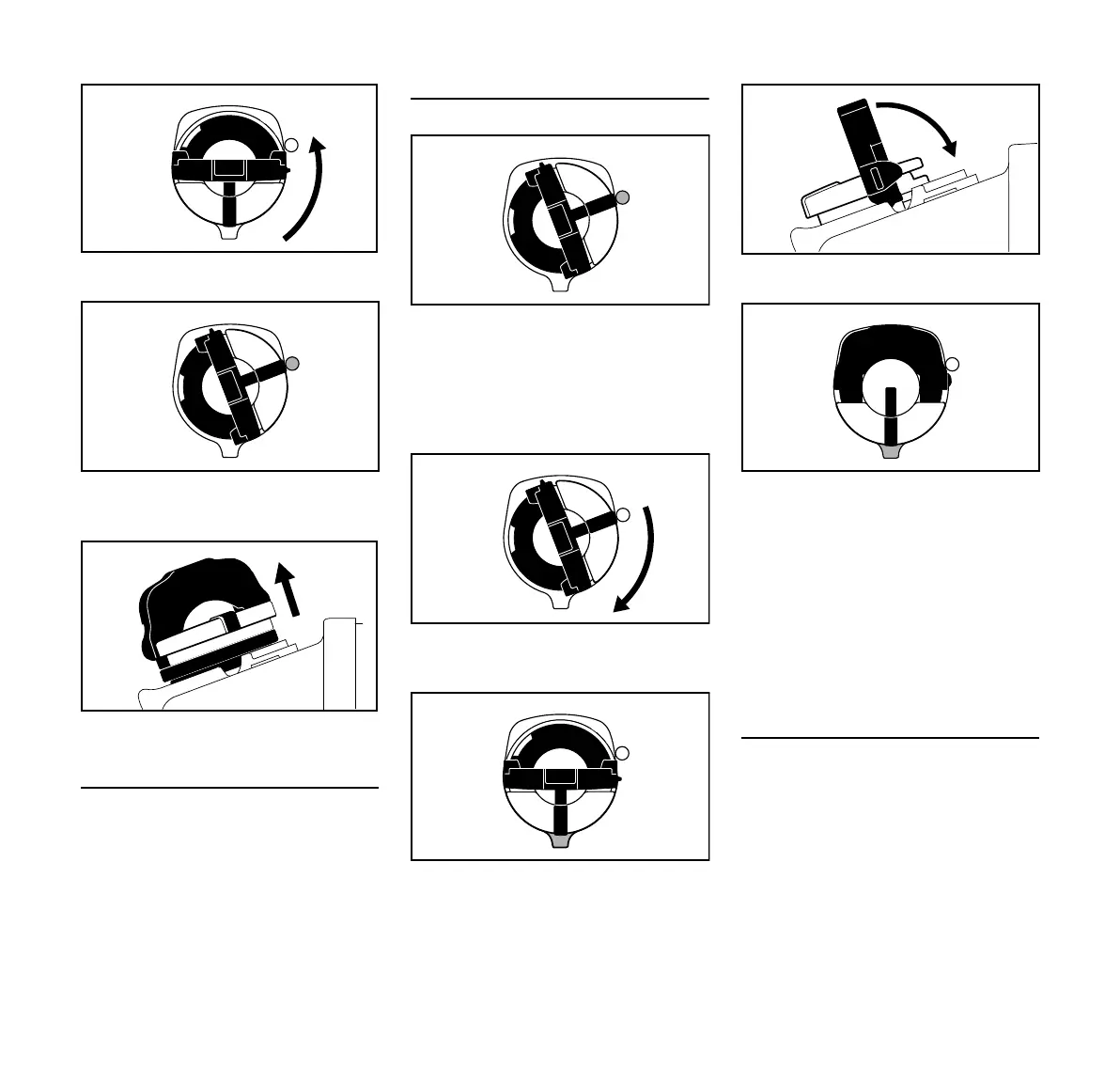

N Twist fuel cap (ca. 1/4 turn)
Markings on fuel cap and oil tank must
align
N Remove the fuel cap
Filling up with chain oil
N Fill up with chain oil
Take care not to spill chain oil during
refilling and do not overfill the tank.
To close:
Clip is in an upright position:
N Fit the fuel cap – marks on the fuel
cap and oil tank must line up.
N Push the fuel cap down as far as it
will go
N Hold the fuel cap down and twist it
clockwise until it engages
Then the markings on fuel cap and oil
tank will align
N Close the bracket lock
The fuel cap is locked
If the oil level in the tank does not go
down, the reason may be a problem in
the oil supply system: Check chain
lubrication, clean the oilways, contact
your dealer for assistance if necessary.
STIHL recommends that maintenance
and repair work be carried out only by
authorised STIHL dealers.
If the fuel cap will not lock onto the oil
tank
The base of the fuel cap is tilted in
relation to the upper part.
N Remove the fuel cap from the oil
tank and look at it from above
0000-GXX-0136-A0
0000-GXX-0137-A0 KN
0000-GXX-0138-A0 KN
0000-GXX-0137-A0 KN
0000-GXX-0139-A0 KN
0000-GXX-0140-A0 KN
0000-GXX-0141-A0 KN
0000-GX-0142 A0 KN

Stihl HT 135 Specifications

General

Displacement	36.3 cc
Bar Length	30 cm
Power Source	Gasoline
Weight	7.9 kg
Fuel Capacity	0.53 L (17.9 oz.)
Overall Length	270 cm (106.3 in)
