English 8 Adjusting KombiMotor for User

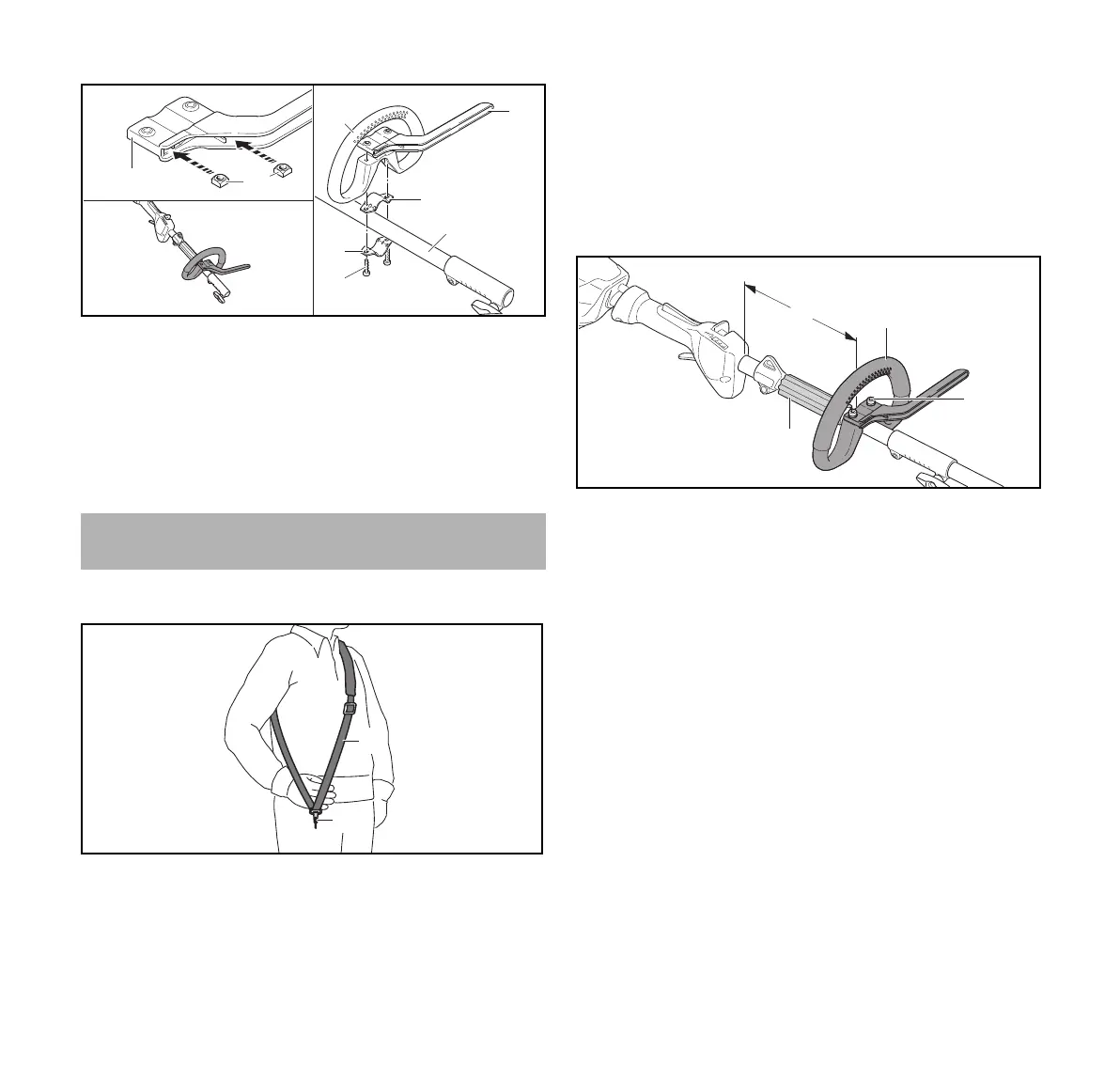

► Insert the nuts (2) in the barrier bar (1) so that the holes
line up.
► Fit the clamp (5) in the loop handle (3).
► Place the loop handle (3) with clamp (5) and barrier bar (4)
on the shaft (6).
► Press the clamp (7) against the shaft (6).
► Insert screws (8) and tighten.
8.1 Fitting and Adjusting the Shoulder Strap
► Put on the shoulder strap (1).
► Adjust the shoulder strap (1) so that the carabiner (2) is
about a hand’s width below your right hip.
Other approved carrying systems are listed in this User
Manual, @ 21.
8.2 Adjusting and Setting the Loop Handle
The loop handle can be set to different positions to suit the
height and reach of the user.
► Switch off the KombiEngine and remove the battery.
► Undo the screws (2).
► Move the loop handle (1) to the required position and
check that the following conditions are met:
– The bump guard (3) fits between the loop handle (1) and
carrying ring.
– a = no more than 25 cm.
► Tighten down the screws (2) so that the loop handle (1)
cannot be rotated on the shaft.
8 Adjusting KombiMotor for User
1
2
3
4
5
7
8
6
0000-GXX-4642-A0
2
1
0000-GXX-2990-A0
a
3
1
2
0000-GXX-4643-A0
