0458-687-0121-A
4
English
4 Safety Precautions
6 Trigger
Switches the KombiEngine on and off.
7 Trigger lockout
The trigger lockout unlocks the trigger.
8 Release slide
Switches the KombiEngine on and selects the power
level.
9LEDs
The LEDs indicate the selected power level.
10 Carrying ring
For attaching the carrying system to the brushcutter.
11 Shaft
The shaft connects all components.
12 Loop handle
For holding and controlling the KombiEngine.
13 Barrier bar
Maintains distance between operator’s leg and a metal
cutting attachment.
14 Coupling sleeve
Connects the KombiEngine to the KombiTool.
15 Wing screw
Secures the KombiEngine to the shaft.
16 LEDs
The LEDs indicate the state of charge of the battery and
any faults.
17 Button
The button activates the LEDs on the battery.
18 Battery
Supplies power to the KombiEngine.
# Rating plate with machine number

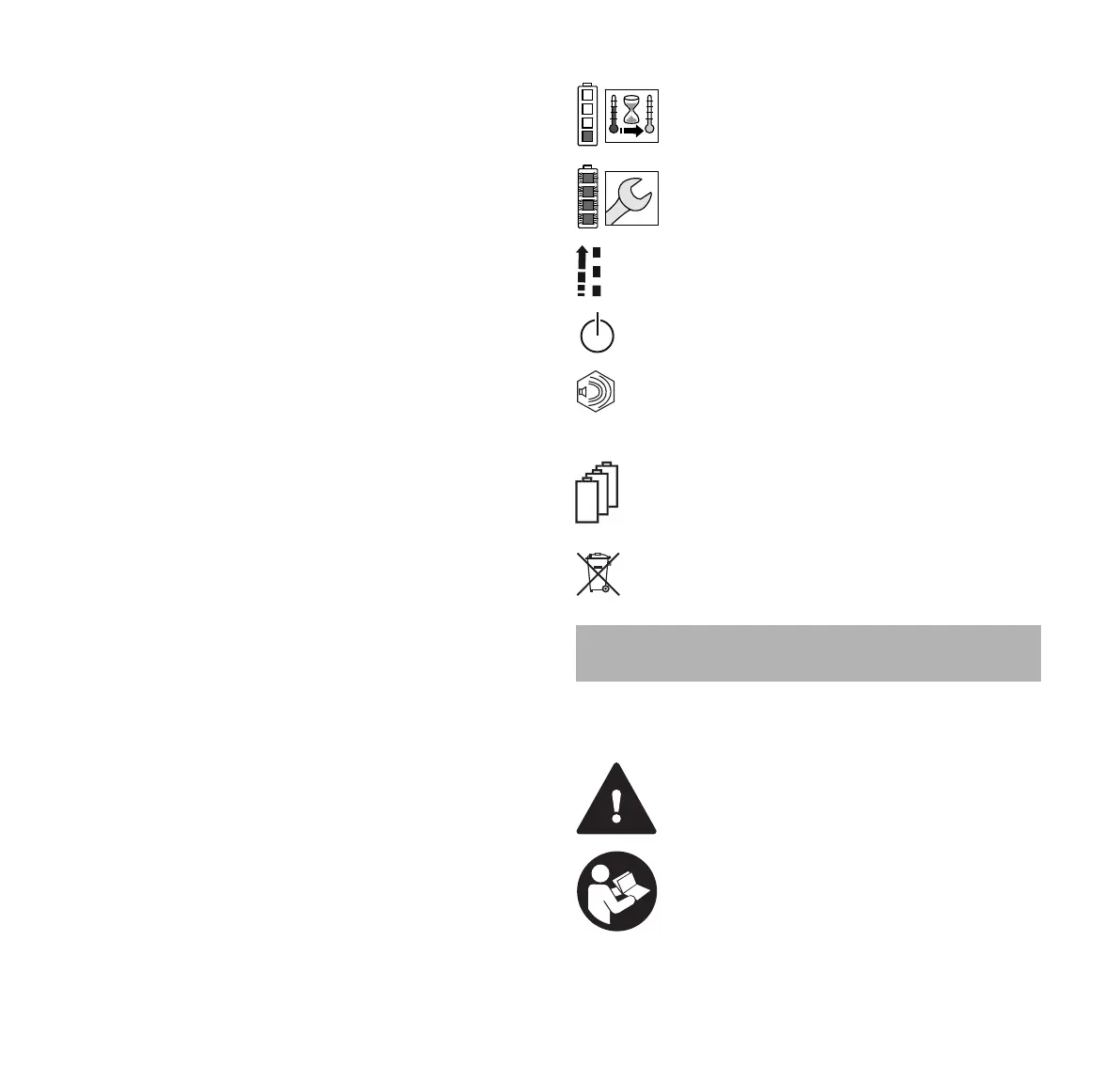

3.2 Icons
Meaning of icons that may be on the KombiEngine and the
battery:
4.1 Warning Symbols
Meanings of warning icons on the KombiEngine or battery:
1 LED emits red light. The battery is too warm or
too cold.
4 LEDs flashing red. There is a fault in the
battery.
Push the release slide forward to switch the
KombiEngine on and set the power levels.
This icon marks the release slide.
Guaranteed sound power level in accordance
with Directive 2000/14/EC in dB(A) for the
purpose of comparing the sound emissions of
products.
The information next to the symbol indicates the
energy content of the battery according to the cell
manufacturer’s specification. The energy content
available in operation is lower.
Do not dispose of the product with domestic waste.
4 Safety Precautions
Observe safety notices and take the necessary
precautions.
Read, understand and keep the User Manual.
