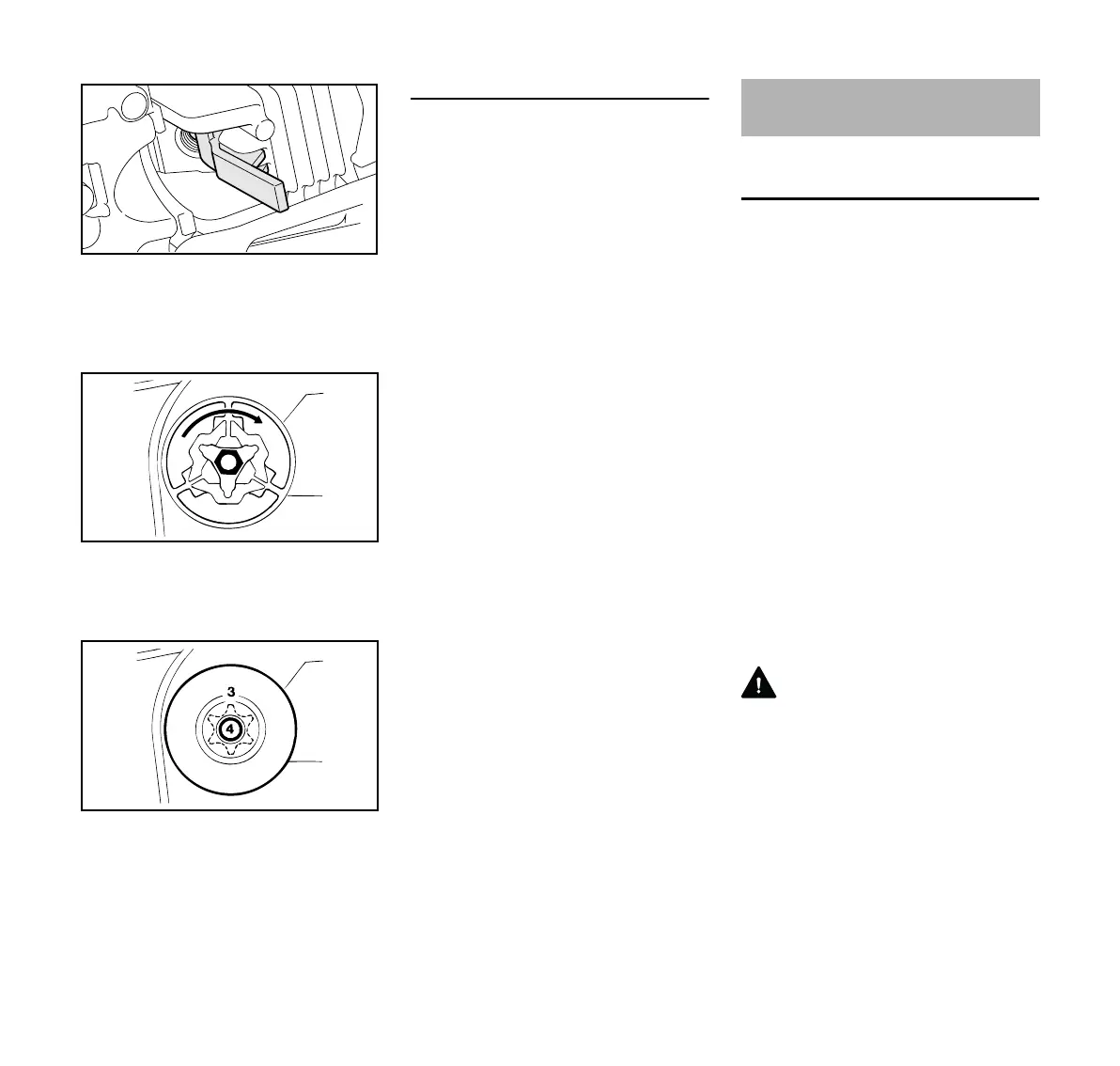

N Fasten the locking strip (2) on the
cylinder fin
N Turn the clutch clockwise until the
piston rests against the locking strip
N Loosen the hexagon of the clutch
clockwise (left-handed thread)
N Unscrew clutch
N Remove chain sprocket (3) and
needle cage (4) from the crankshaft
N Clean crankshaft stub and needle
cage and lubricate with STIHL
lubricant (special accessory)
Assembly
N Fit needle cage and chain sprocket
on the crankshaft
N Screw the clutch counterclockwise
onto the crankshaft
N Tighten the clutch with a torque of
25 Nm
N Remove the locking strip from the
cylinder, screw in and tighten the
spark plug
N Push the spark plug boot onto the
spark plug
Sawing effortlessly with a properly
sharpened saw chain
A properly sharpened saw chain cuts
through wood effortlessly even with very
little pushing.
Never use a dull or damaged saw chain
– this leads to increased physical strain,
increased vibration load, unsatisfactory
cutting results and increased wear.
N Clean the saw chain
N Check the saw chain for cracks and
damaged rivets
N Replace damaged or worn chain
components and adapt these parts
to the remaining parts in terms of
shape and level of wear – rework
accordingly
Carbide-tipped (Duro) saw chains are
especially wear-resistant. For an optimal
sharpening result, STIHL recommends
STIHL servicing dealers.
WARNING
Compliance with the angles and
dimensions listed below is absolutely
necessary. An improperly sharpened
saw chain – especially depth gauges
that are too low – can lead to increased
kickback tendency of the chain saw –
risk of injury!
Maintaining and Sharpening
the Saw Chain
