MS 360 C

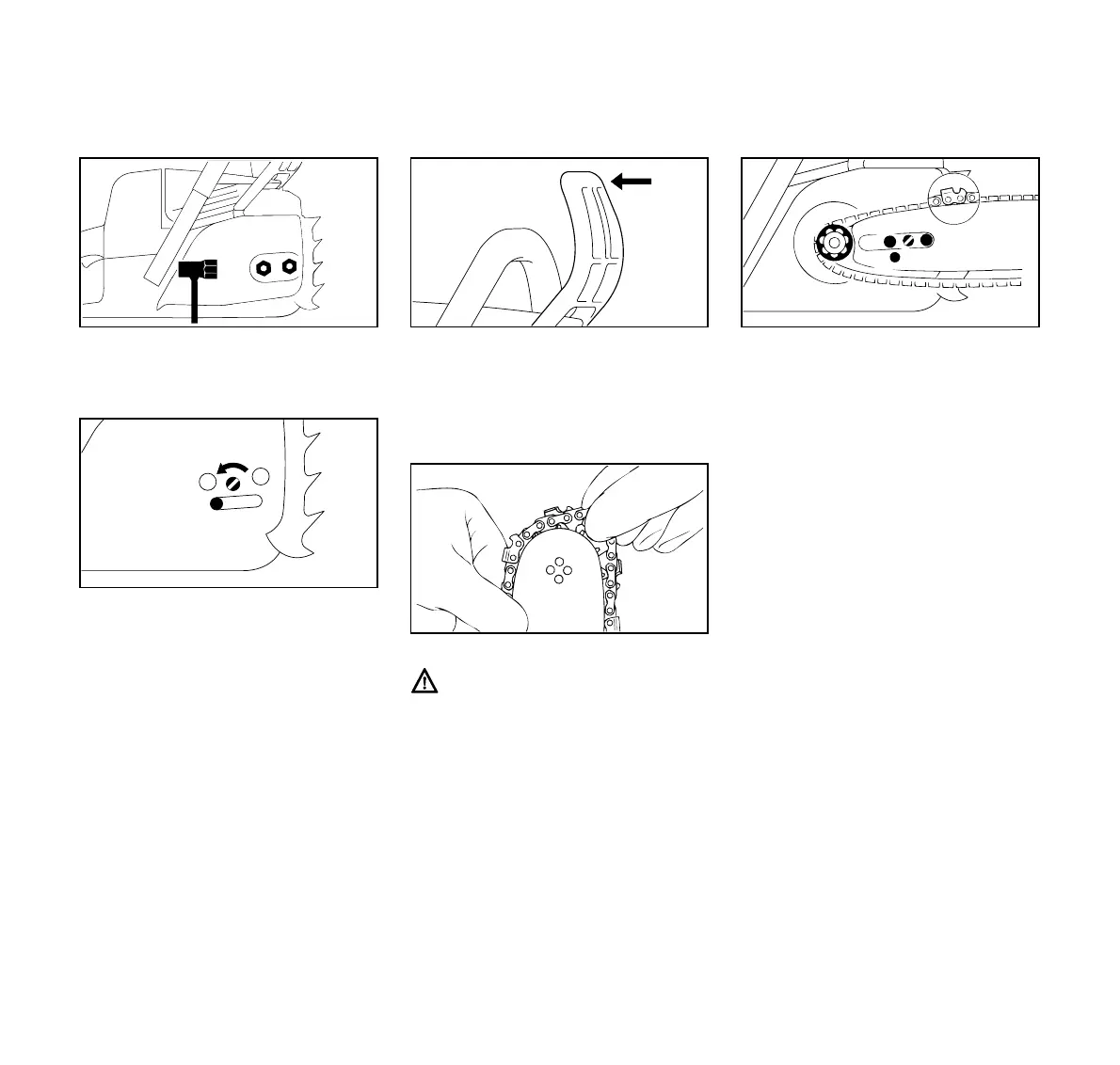

: Unscrew the nuts and take off the
chain sprocket cover.
: Turn screw (4) counterclockwise
until the tensioner slide (5) butts
against left end of housing slot.
: Pull the hand guard (6) back toward
the front handle.
: Press down the throttle trigger
interlock to release the chain brake.
Wear work gloves to protect your
hands from the sharp cutters.
: Fit the chain – start at the bar nose.
: Fit the guide bar over the studs (7) –
cutting edges on top of bar must
point to right – and engage the
peg of the tensioner slide in locating
hole (8) –- place the chain over
sprocket (9) at the same time.
: Now turn tensioning screw (10)
clockwise until there is very little
chain sag on the underside of the
bar –- and the drive link tangs are
located in the bar groove.
: Refit the sprocket cover –
and screw on the nuts only finger-
tight.
: Go to “Tensioning the Saw Chain”.
