Stihl RE 110 - 8 Assembling the Pressure Washer; 8.1 Assembling Parts and Accessories

0458-620-8221-A
17
English 8 Assembling the Pressure Washer
8.1 Assembling Parts and Accessories
WARNING
To reduce the risk of severe injury from high-pressure spray,
always switch off the pressure washer, shut off the water
supply, relieve any remaining pressure in the system and
lock the spray gun trigger before attempting to assemble the
pressure washer or spray attachment.

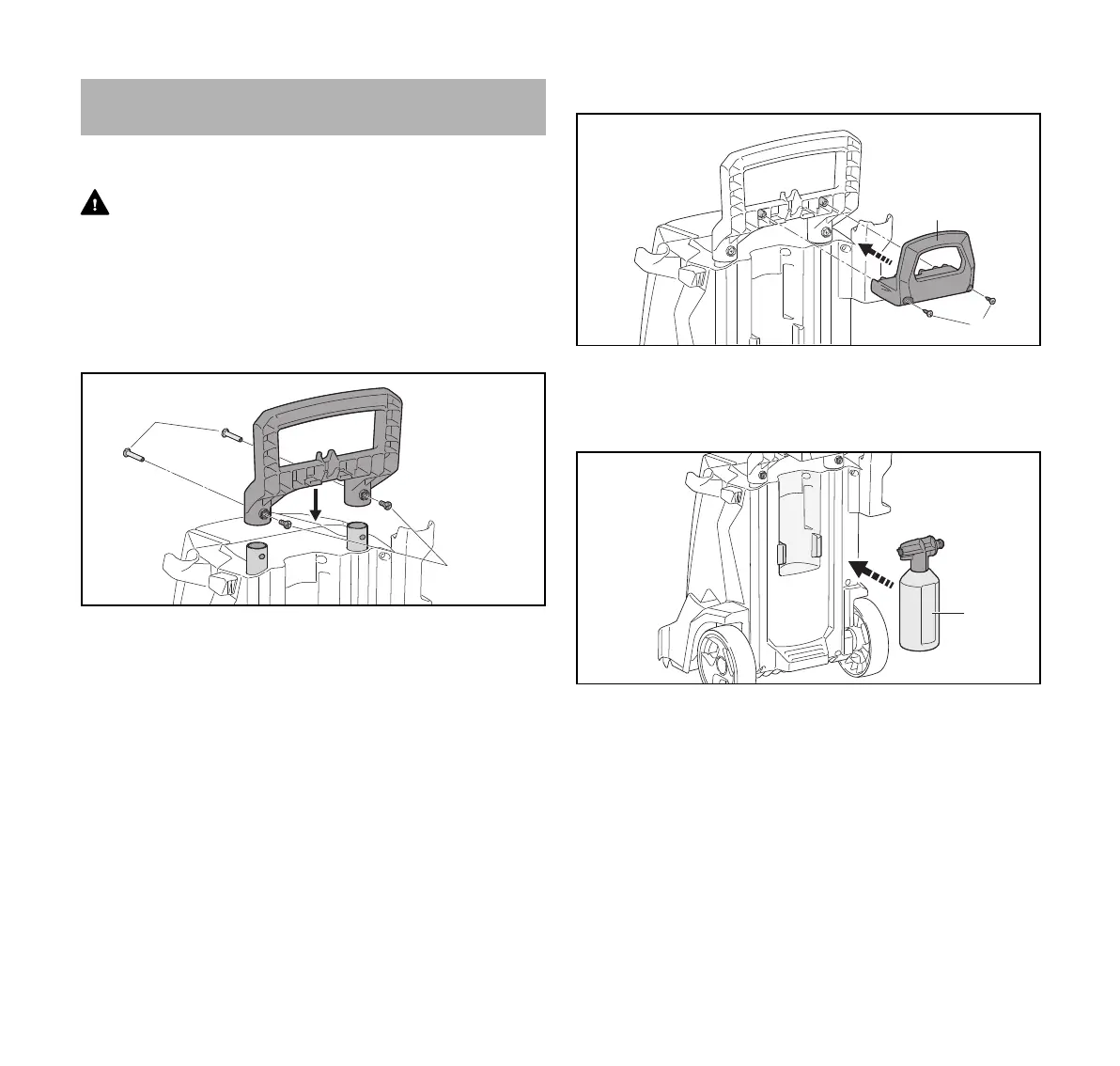

Handle
► Push handle (1) onto the telescopic shafts (2).
► Push threaded sleeves (3) through the handle (1) into the
telescopic shafts (2).
► Insert screws (4) into the threaded sleeves (3) and tighten
up.
Bracket for High-Pressure Hose
► Push the bracket (1) into the handle (2).
► Insert screws (3) into the handle (2) and tighten up.
Detergent Spray Set
► Insert the detergent spray set (1).
8 Assembling the Pressure Washer
3
0000-GXX-4341-A0
1
4
2
2
0000-GXX-4342-A0
1
2
3
0000-GXX-4611-A0
1
