RE 143, RE 143 PLUS, RE 163, RE 163 PLUS
English
47

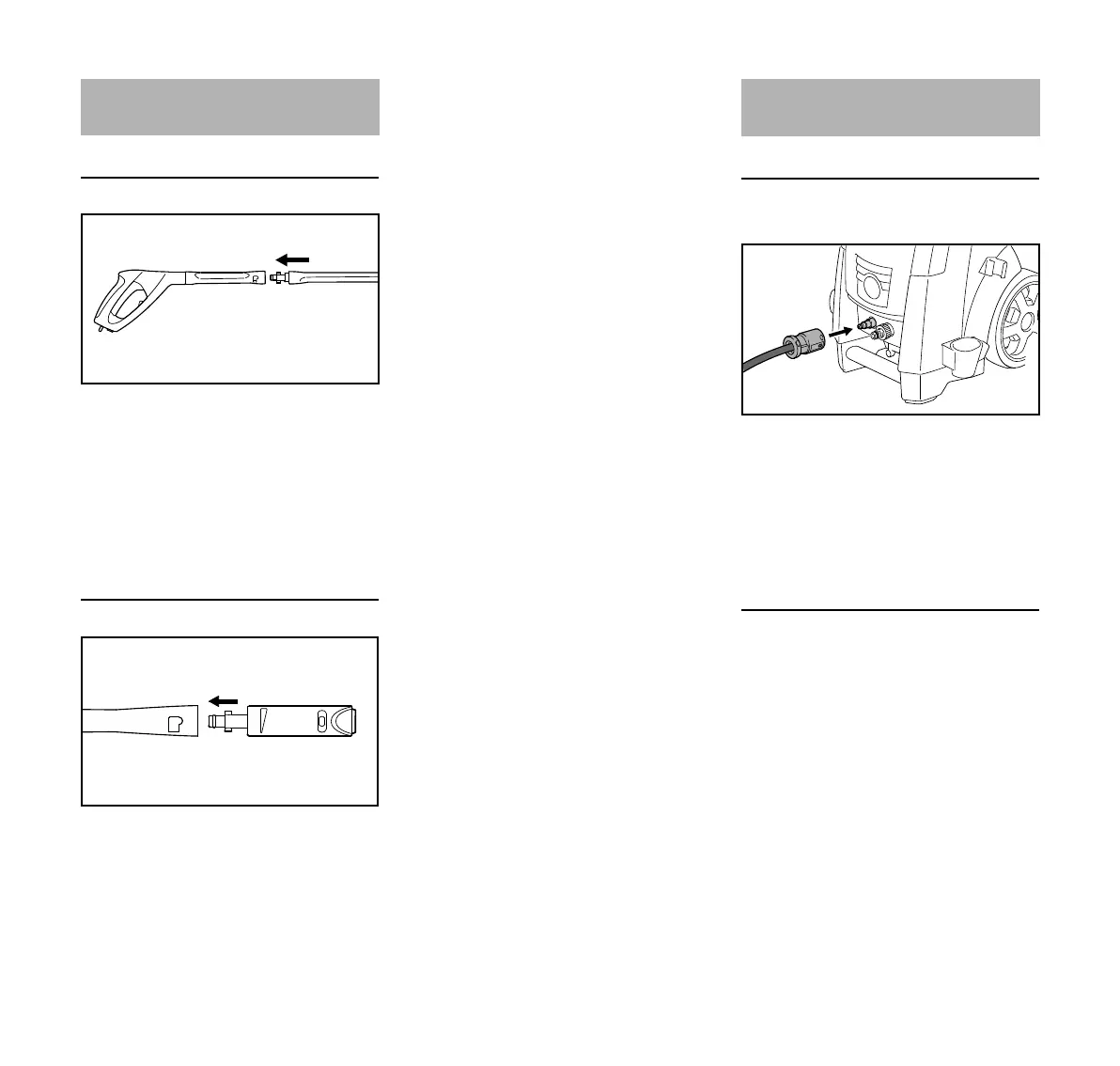

Spray lance
N Press the spray lance (1) into the
mount on the spray gun (2), turn it
by 90° so that it engages
Removing
N Press the spray lance (1) into the
mount on the spray gun (2), turn it
by 90° and pull it out of the mount
Nozzle
N Slide nozzle (3) into the mount on
the spray lance (1)
N Hold down the nozzle (3) and twist it
by 90° to lock it
Removing
N Press the nozzle (3) into the mount
and twist it by 90° to unlock it
RE 143, RE 163
Connecting the high-pressure hose
N Push the coupling (1) onto the
connector (2)
Disconnecting the high-pressure hose
N Unlock the high-pressure hose by
pulling the clutch (1) and remove
from the connector (2)
RE 143 PLUS, RE 163 PLUS
The high-pressure hose is already
connected.
Fitting, removing spray lance
Fitting, removing high-
pressure hose
