Stihl RE 163 User Manual

RE 143, RE 143 PLUS, RE 163, RE 163 PLUS
English
53

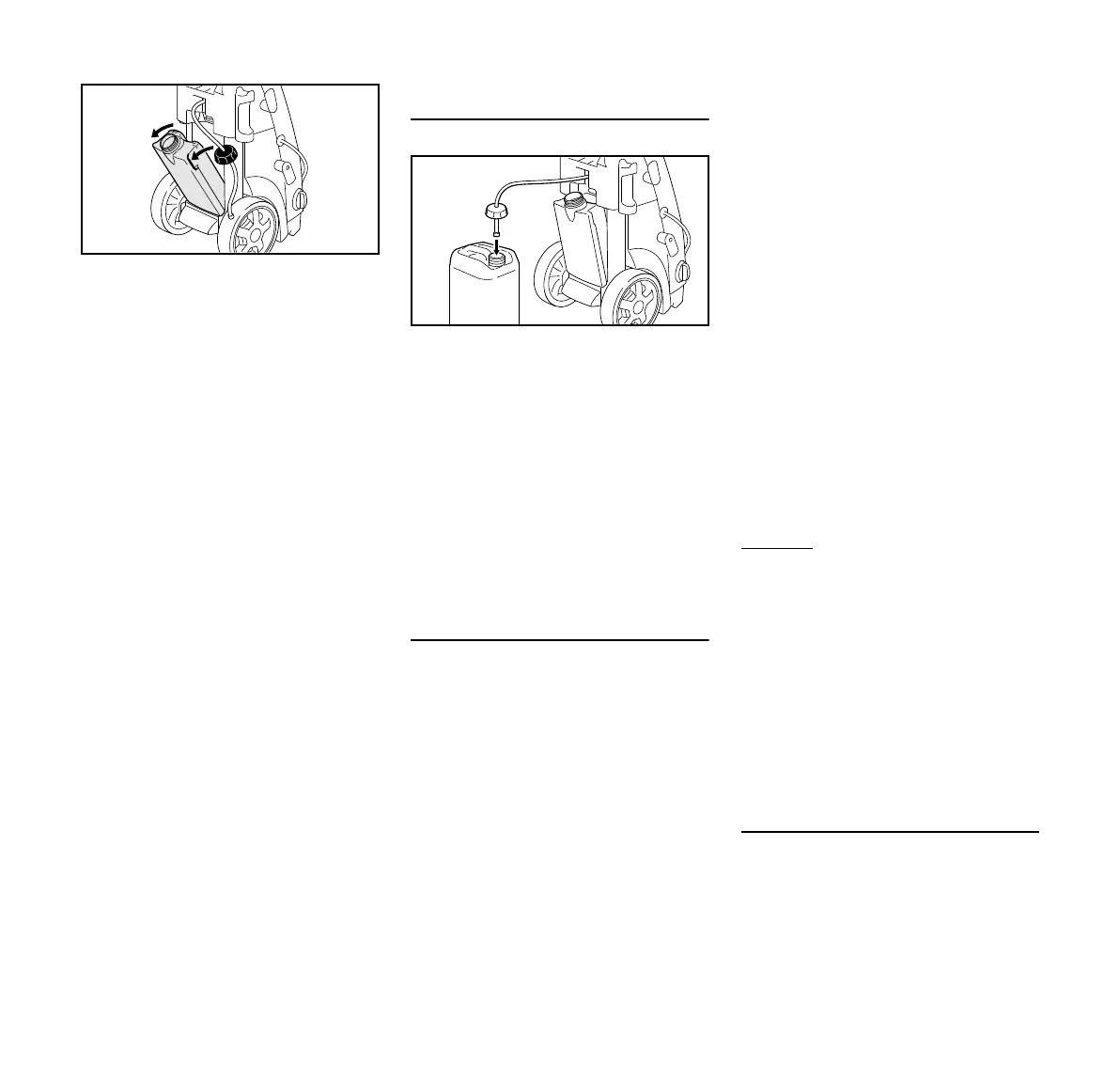

N Hold the detergent tank by both
handles and fold it out past the stop
and out of the housing
N Unscrew the cap with intake hose
from the detergent tank
The intake hose can be pushed into the
high-pressure cleaner housing for
storage.
Mounting
N Position the detergent tank in the
mounts on the base of the housing
N Press against the detergent tank
until it engages in the housing
Using detergent from a separate
container
N Fold out the detergent tank
N Unscrew the cap with intake hose
from the detergent tank
N Screw the cap with intake hose onto
a separate detergent container
The cap has a standard thread and fits
all standard detergent containers.
N Slide the intake hose as far as
possible into the detergent
container
Precisely calculating/setting the
detergent concentration
For a few detergents, the concentration
must be very precisely set. In this case,
measure the water flow and detergent
consumption.
N Set the nozzle sleeve to low-
pressure operation – as described
above
N Set the detergent metering knob to
"0 % (min)"
N Hold the spray gun in a suitable
empty receptacle (> 20 l) and
actuate for exactly 1 minute
N Measure the quantity of water "Q" in
the container
N Fill 2 liters of detergent diluted as
directed into a suitable container
(with a scale of 0.1 l) – STIHL
recommends the use of genuine
STIHL detergents
N Hold the intake hose in the
container
N Set the detergent metering knob to
the desired concentration: 0 %
(min) to 5 % (max)
N Hold the spray gun in a suitable
empty receptacle (> 20 l) and
actuate for exactly 1 minute
N Read the detergent consumption
"QR" on the scale
Calculating the actual detergent
concentration:
– QR = amount of consumed
detergent (in l/min)
– Q = Water without detergent (in
l/min)
– V = Predilution of detergent (in %)
If the actual concentration deviates from
the desired concentration, reset knob
and repeat measurement if necessary.
Calculating the predilution of the
detergent in %
If the predilution is not indicated as a
percentage, it can be calculated using
the following table:
1607BA030 KN
1607BA017 KN
QR
x V = concentration
Q
