Stihl RE 471 User Manual

RE 361, RE 361 PLUS, RE 461, RE 461 PLUS, RE 471 PLUS
English
36

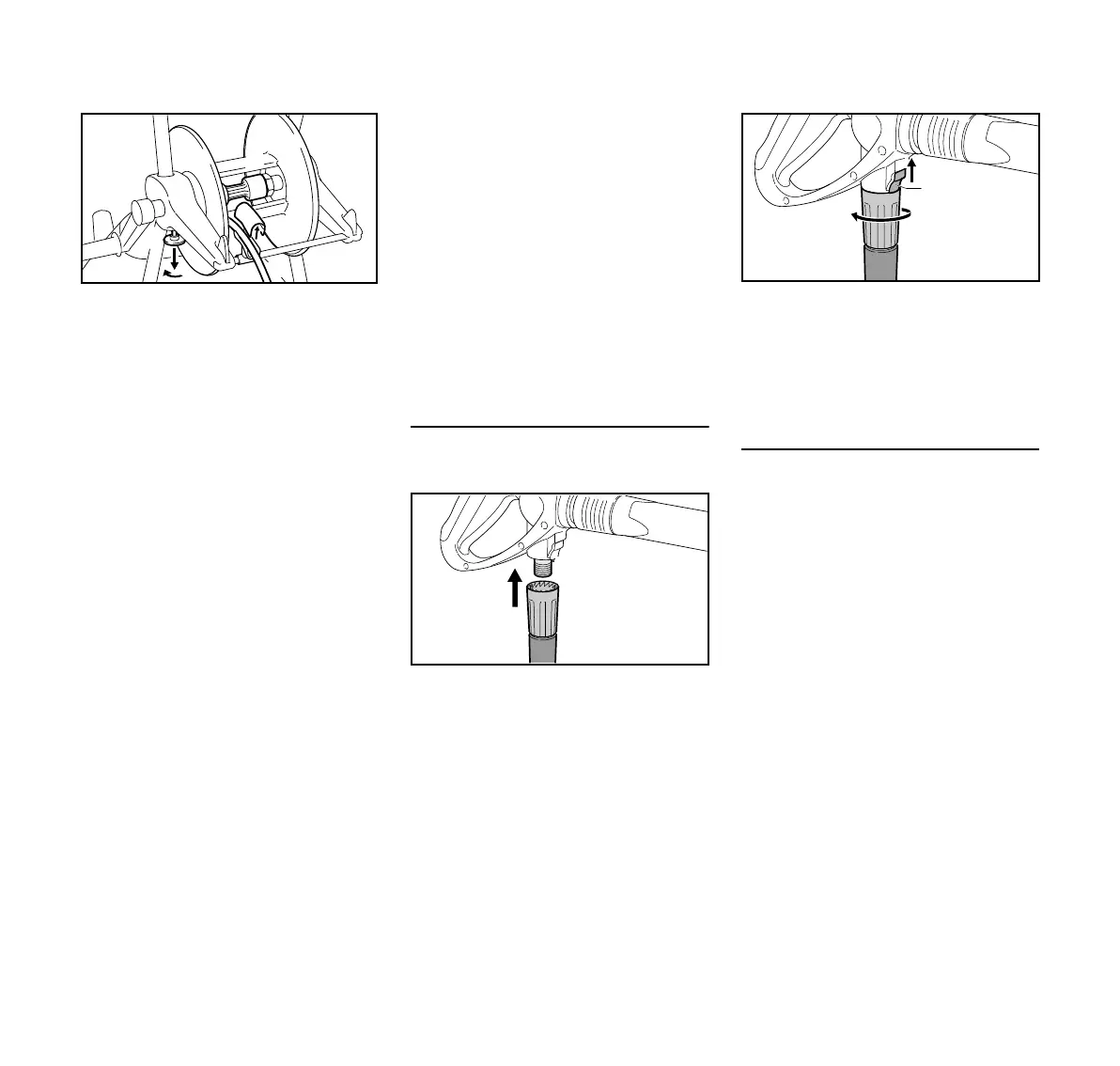

Disconnect the high-pressure hose
N Release the hose reel brake
To release the hose reel brake, push the
button (1) down and turn it
counterclockwise.
To lock the hose reel in position, turn the
button (1) controlling the hose reel brake
clockwise and turn the crank handle a
little way until it engages.
N Unroll the high-pressure hose (2)
N Open the hose guide (3)
N Unscrew the union nut (4)
N Pull high-pressure hose (2) off of
connector
Connecting the high-pressure hose
N Push the high-pressure hose (2)
onto the connector of the hose reel
N Attach union nut (4) and screw it on
and tighten by hand
N Push the high-pressure hose into
the hose guide (3) and close the
hose guide.
N Release the brake (1) on the hose
reel and wind up the high-pressure
hose
If necessary, the high-pressure hose
can be connected directly to the high-
pressure hose connection of the
machine.
For this purpose:
N Loosen and remove the union nut of
the high-pressure hose connection
N Unscrew the screw plug with a
size 8 hexagon socket wrench
N Remove the high-pressure hose
from the hose reel
N Connect the high-pressure hose as
for machines without hose reel
High-pressure hose and spray gun
Connection
N Push the high-pressure hose (1)
onto the connector (2)
N Attach union nut (3) and screw it on
and tighten by hand
Disconnection
N Push the coupling (4) in the
direction of the arrow and hold it
N Loosen the union nut (3) and
unscrew it from the connector in the
direction of the arrow
High-pressure hose extension
As a rule, always use only one high-
pressure hose extension – see "Special
accessories"
4
3
1
2
671BA030 KN
1
2
3
647BA022 KN
647BA023 KN
3
4
