English 25 Installation Examples

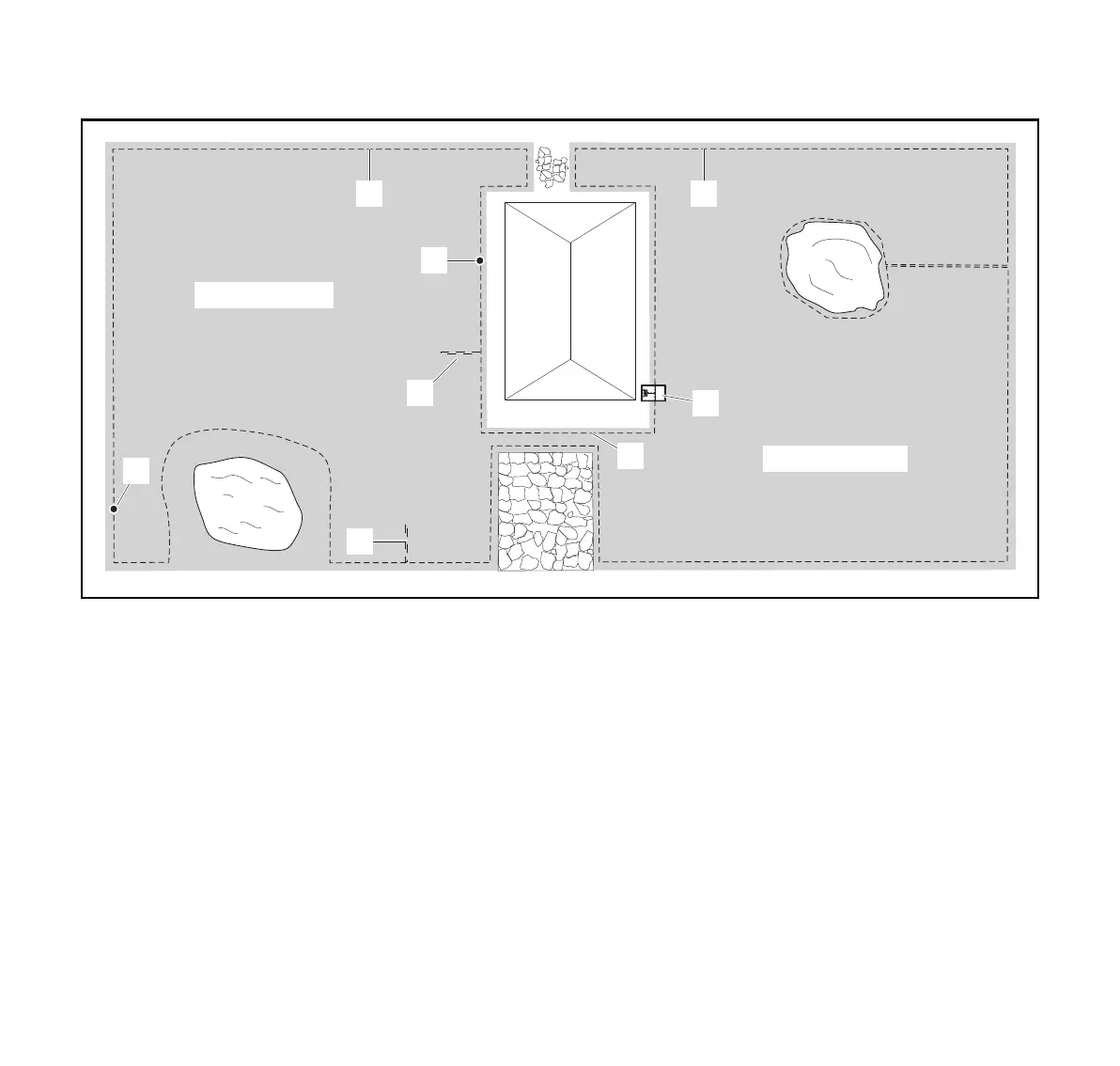

Divided mowing area with a pond and a free-standing tree:
– Docking station: Location(1) next to the house(A)
– Restricted area: Installation around the free-standing tree,
based on a linking section installed at right angles to the
perimeter of the mowing area.
– Pond: Clearance from the perimeter wire(2) to the
pond(B): 3.3ft. (1m)
– Wire clearances:
– Clearance from obstacles which can be travelled on
such as patios and paths: 0in. (0cm)
– Clearance from high obstacles: 10.6in. (27cm)
– Clearance around the tree: 14.6in. (37cm)
– Clearance from the pond: 3.3ft. (1m)
– Confined area: Installation of a corridor(3) with a wire
clearance of 10.6in. (27cm).
– Search loops: Installation of two search loops(4) with a
minimum distance from the corridor entrance of 6.6in.
(2m) Note the minimum clearance from corners.
– Programming: Define the total size of the mowing area,
program two starting points(5) (close to the docking
station and in the corner near the pond) – starting
frequency 2 of 10 operations in each case.
– Points to note: Unmowed areas, e.g. around the pond,
must be mowed manually or cut with a suitable trimmer or
other tool.
2
2
1
4
3
5
A
B
4
5
Linked Area
Primary Area
0000-GXX-3430-A1
