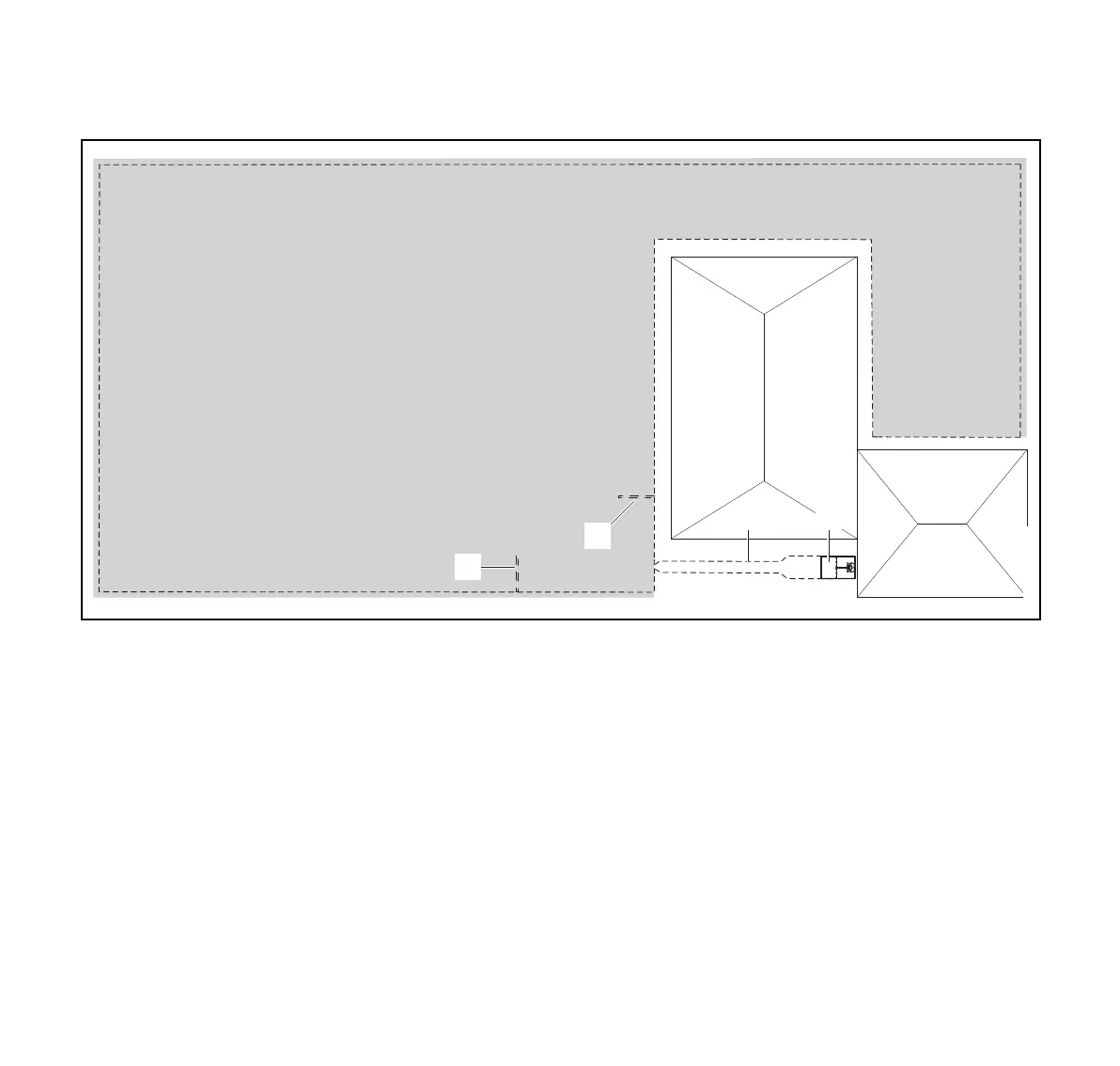

Mowing area around a free-standing house with external
docking station (1):
– Docking station: Location next to the garage(B) and
behind the house(A).
– Wire clearances:
– Clearance from obstacles which can be travelled on
such as patios and paths: 0in. (0cm)
– Clearance from high obstacles: 10.6in. (27cm)
– Search loops: Installation of two search loops (2) with a
minimum distance from the corridor entrance of 6.6ft.
(2m). Note the minimum clearance from corners.
– Programming: No further modification is necessary
following definition of the size of the mowing area.
– Points to note: Installation of a corridor(3) with funnel-
shaped entrance area with a wire clearance of 10.6in.
(27cm). The corridor leads to the external docking
station(1). Increase the wire clearance in the corridor to
the width of the base plate 3.3ft. (1m) in front of the
docking station. Note the space requirement in the
corridor and beside the docking station.
3 1
A
B
2
2
0000-GXX-3436-A1
