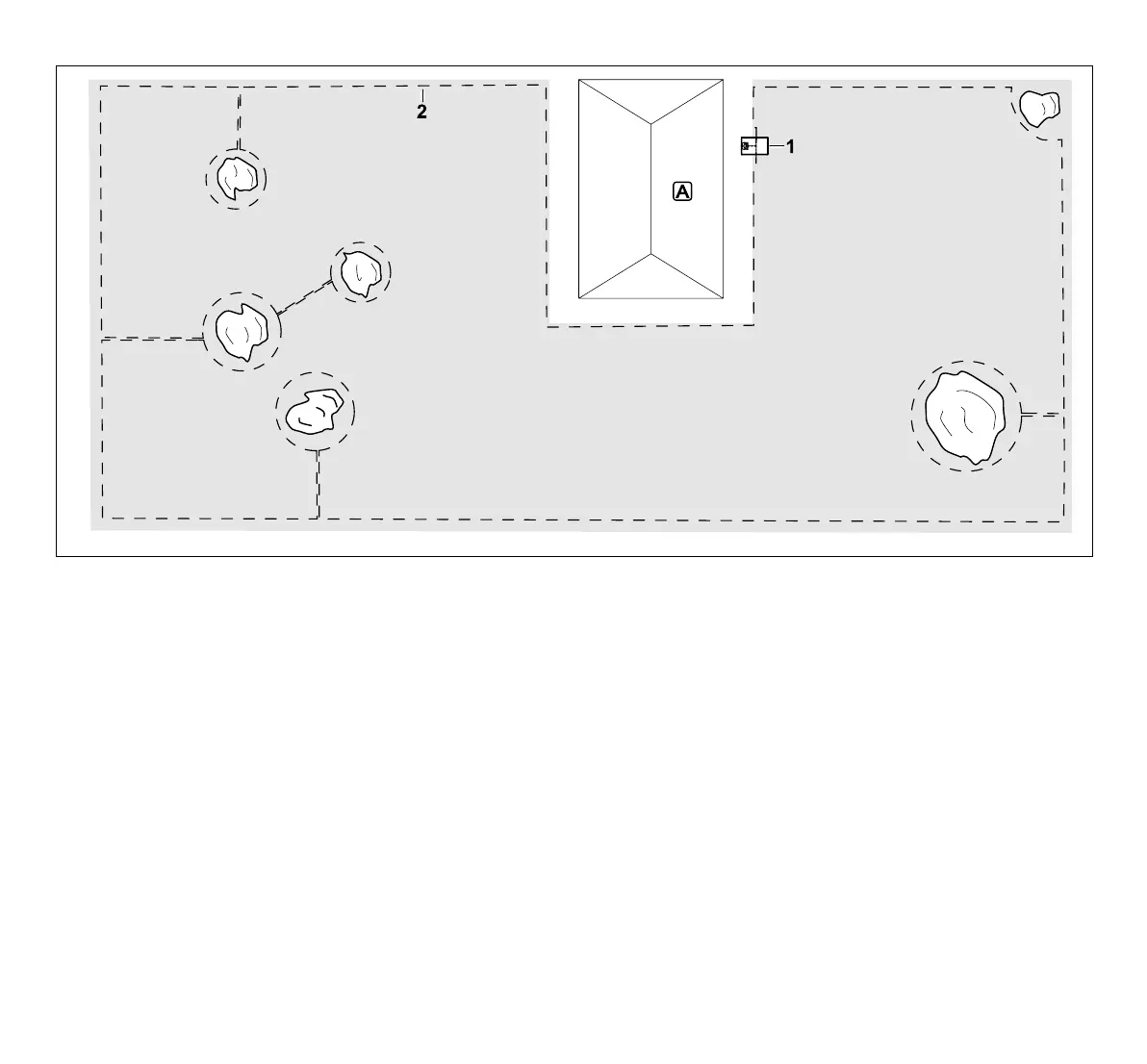

U-shaped mowing area with several free-
standing trees
Docking station:
Location (1) directly next to the house A
No-go areas:
Installation around the free-standing trees,
based on linking sections installed at right
angles to the edge (2), two no-go areas
are connected via a linking section.
Wire clearances: (Ö 12.5)
Clearance to the edge: 33 cm
Clearance to adjoining area that can be
travelled on (e.g. footpath) with a stepped
area height of less than +/- 1 cm: 0cm
Clearance around the trees: 33 cm
Programming:
No further adaptation is necessary
following definition of the size of the
mowing area.
Points to note:
Tree in the corner of the mowing area –
mow the area behind the blocked-off tree
regularly using a suitable lawn trimmer or
leave as a patch of high grass.
