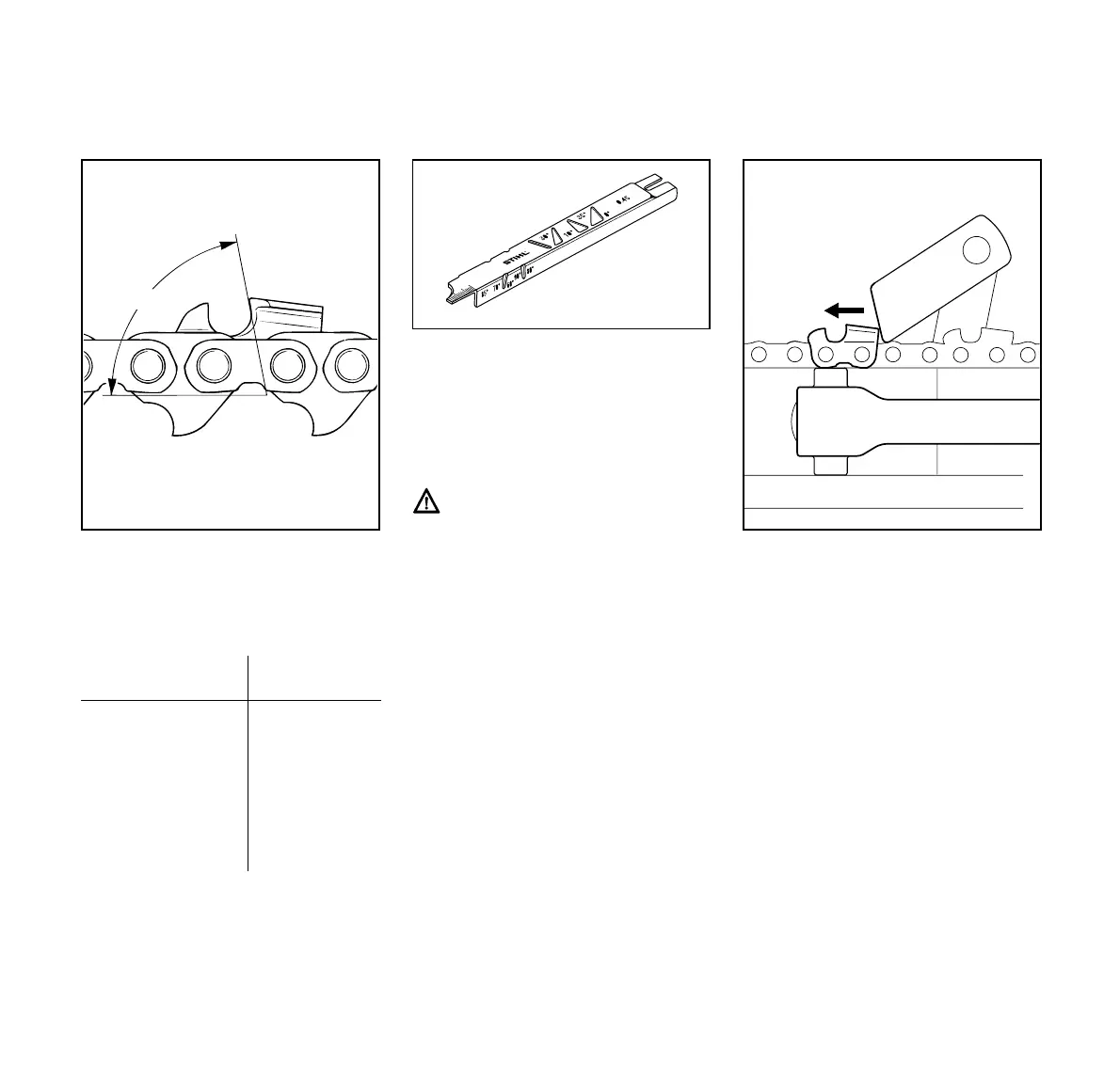

The travel limiting screw must now butt
against the stop lug and the side plate
angle (1) should be as specified.
: Check angle with a filing gauge.
If side plate angle is too obtuse (wide):
: Use travel limiting screw to set
motor arm lower.
Avoid touching the drive links or tie
straps with the grinding wheel. This
could cause the chain to break.
If side plate angle is too acute (narrow):
: Use travel limiting screw to set
motor arm higher.
: Lock the adjusting and travel
limiting screws with their knurled
nuts.
Sharpening Row of Cutters
Use the setting for the master cutter to
sharpen all the other cutters in the row.
: Release clamping lever. Pull the
chain to the left until the stop is
behind the next cutter but one.
Chain type Angle in
degrees
Rapid-Standard 85
Rapid-Micro 85
Rapid-Super 60
Picco-Micro 85
Picco-Micro-Mini 85
Rapid-Duro 65
RCX, RMX, PMX 80
1
523BA022 KN
523BA070 KN
523BA071 KN
