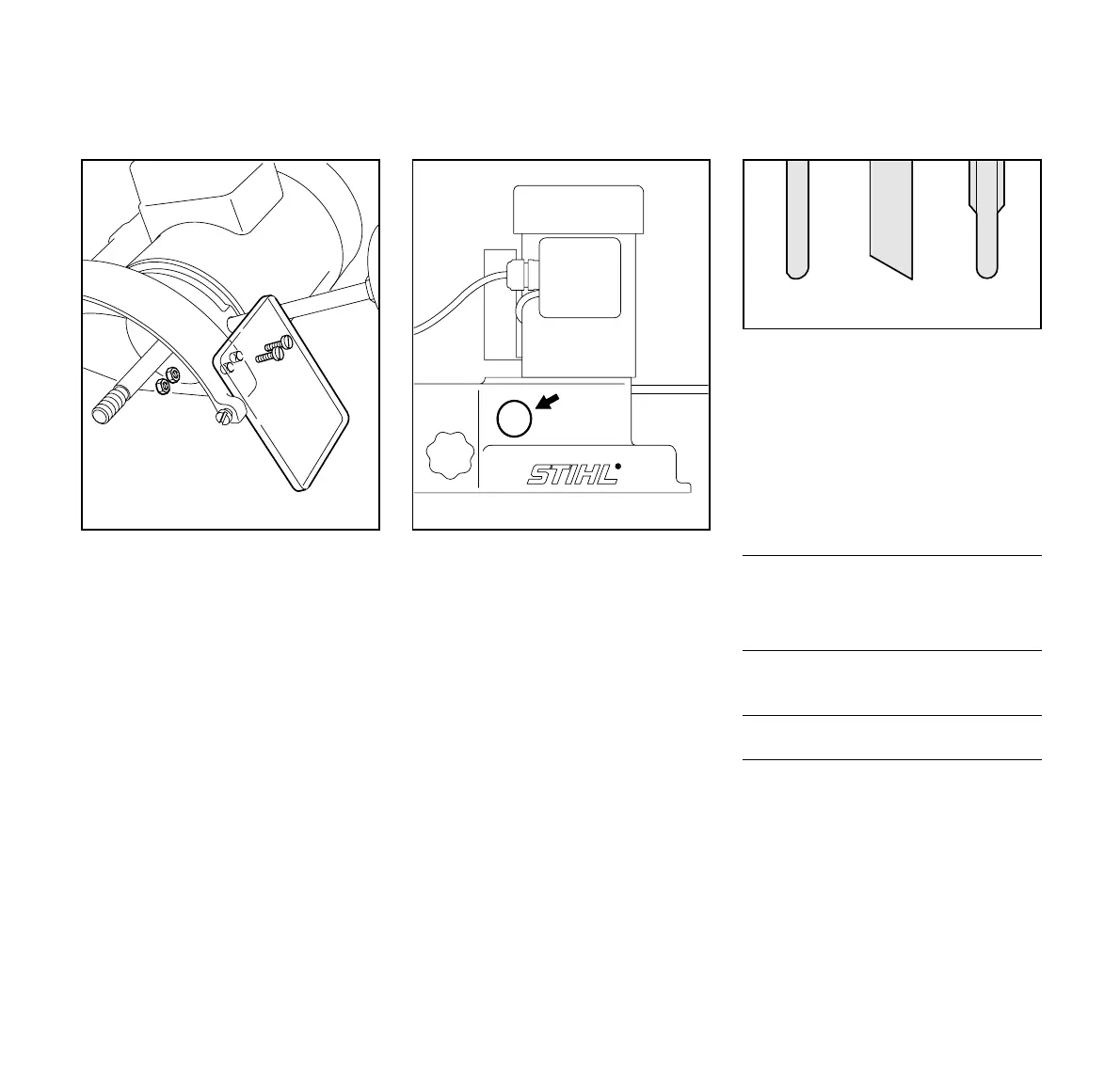

: Place the eye shield (12) against the
guard and line up the holes.
: Insert the M4x12 screws (13) in the
holes and fit the nuts (14).
: Tighten down the screws firmly.
: Refit the guard plate.
Work Light (Special Accessory)
: Use a punch to pierce the casting
skin.
: Clean up the edges with a round file.
: Position lamp socket in opening
from outside and secure it with the
screw ring.
A = Grinding wheel 5203 750 7010
(2.4 mm radius at one side)
B = Grinding wheel 5203 750 7013
(2.0 mm radius at one side)
C = Grinding wheel 5203 750 7015
D = Diamond grinding wheel
5203 757 0901
13
523BA050 KN
12
14
523BA051 KN
Grinding
wheel
Application
A . Circular saw blades
. Hedge trimmer blades
. Oilomatic chain,
pitch: 3/8“, 0.404“, 0.325“
B . Oilomatic chain,
pitch:
1/4“, 3/8“ P, 3/8“ PMN
C . Oilomatic chain,
depth gauges
DCarbide:
. Oilomatic chain
Rapid Duro
Rapid Duro S
. Carbide tipped circular
saw blade
Selecting the
Grinding Wheel
A/B C D
523BA091 KN
