Stihl USG - Applications; Mounting the Tool

4
English
USG
The STIHL USG sharpens all STIHL
Oilomatic saw chains, hedge trimmer
blades and circular saw blades.
Optional swivelling tool rests are
required for sharpening scratcher tooth
chain, hedge trimmer blades and
circular saw blades.
The unit may be mounted on a wall or
workbench.
If you mount the unit on a bench, note
that the unit must overhang the bench by
at least 120 mm.
If you use the special attachment for
hedge trimmer blades:
If you mount the unit on a wall, note that
a clearance of at least 450 mm is
required between the wall and the unit
for sharpening hedge trimmer blades.
Recommendation: Mount the unit on a
bench for such work.

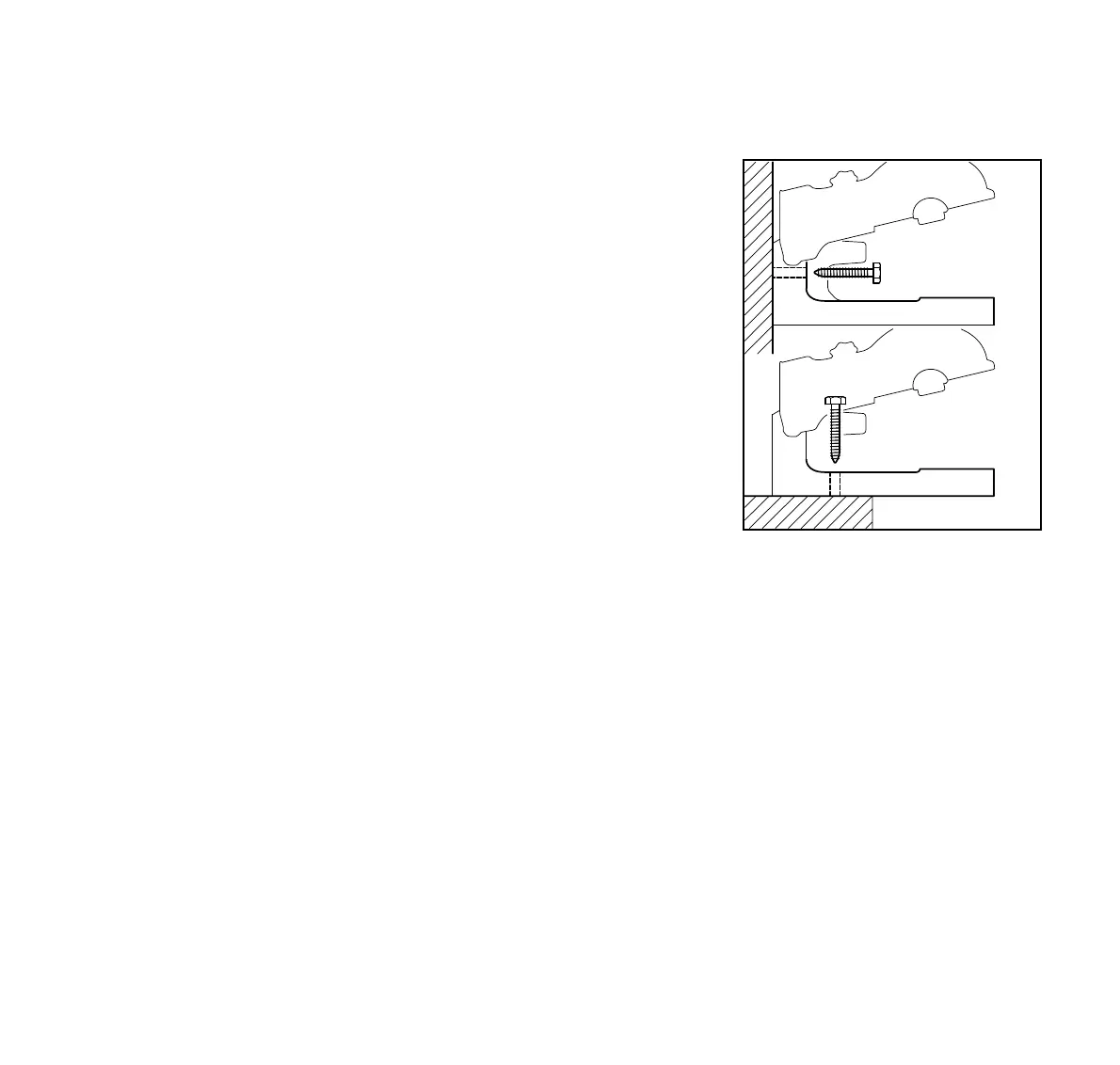

Secure the unit with screws
A = For wall mounting, use three
suitable 8 mm dia. screws (e.g.
8 mm x 100 mm wood screws,
DIN 571-St), 8.4 mm dia. washers
and suitable wall plugs (e.g.
10x50 mm plastic wall plugs)
B = For bench mounting, use two
suitable 8 mm dia. screws (e.g.
8 mm x 100 mm wood screws,
DIN 571-St), 8.4 mm dia. washers
Applications Mounting the Tool
523BA045 KN
A
B
