Wear safety glasses to protect your
eyes.
Observe the following points when
sharpening:
: The cutting blade must be correctly
clamped in position and the stop
must swing back out of the way.
: Bring the motor arm slowly
downward. Check sharpening
process. Do not remove too much
material. If necessary, switch off the
motor and readjust.
: Sharpen the cutting edges by
applying the wheel several times –
do not sharpen in a single pass.
Sharpening Row of Teeth
: Switch on the motor.
: Sharpen the first tooth.

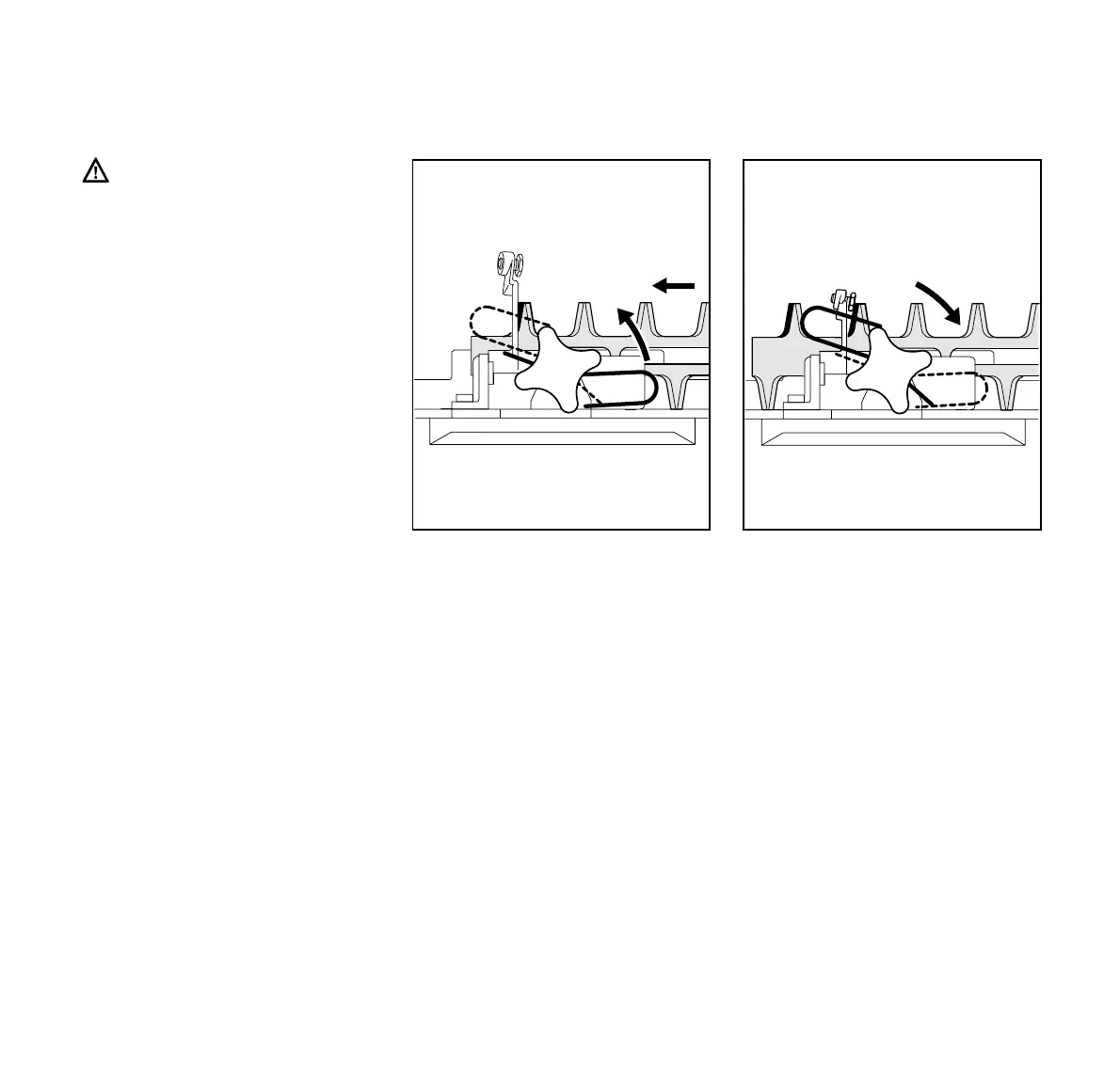

: Turn the star knob (1) counter-
clockwise to loosen the clamp.
: Move cutting blade (2) one tooth to
the left.
: Continue turning the star knob (1)
until the stop swings forward
automatically. The left tooth flank
must butt against the stop.
: Turn the star knob (1) clockwise
until the stop swings back – the
cutting blade is now clamped in
position.
: Sharpen the tooth.
Repeat the above procedure until all the
teeth in the row have been sharpened.
Now follow the separate descriptions for
sharpening one-sided and double-sided
cutting blades.
Sharpening
Hedge Trimmer Blades
523BA114 KN
1
2
3
523BA115 KN
1
