Stihl USG - Adjusting sharpening depth

23USG
English

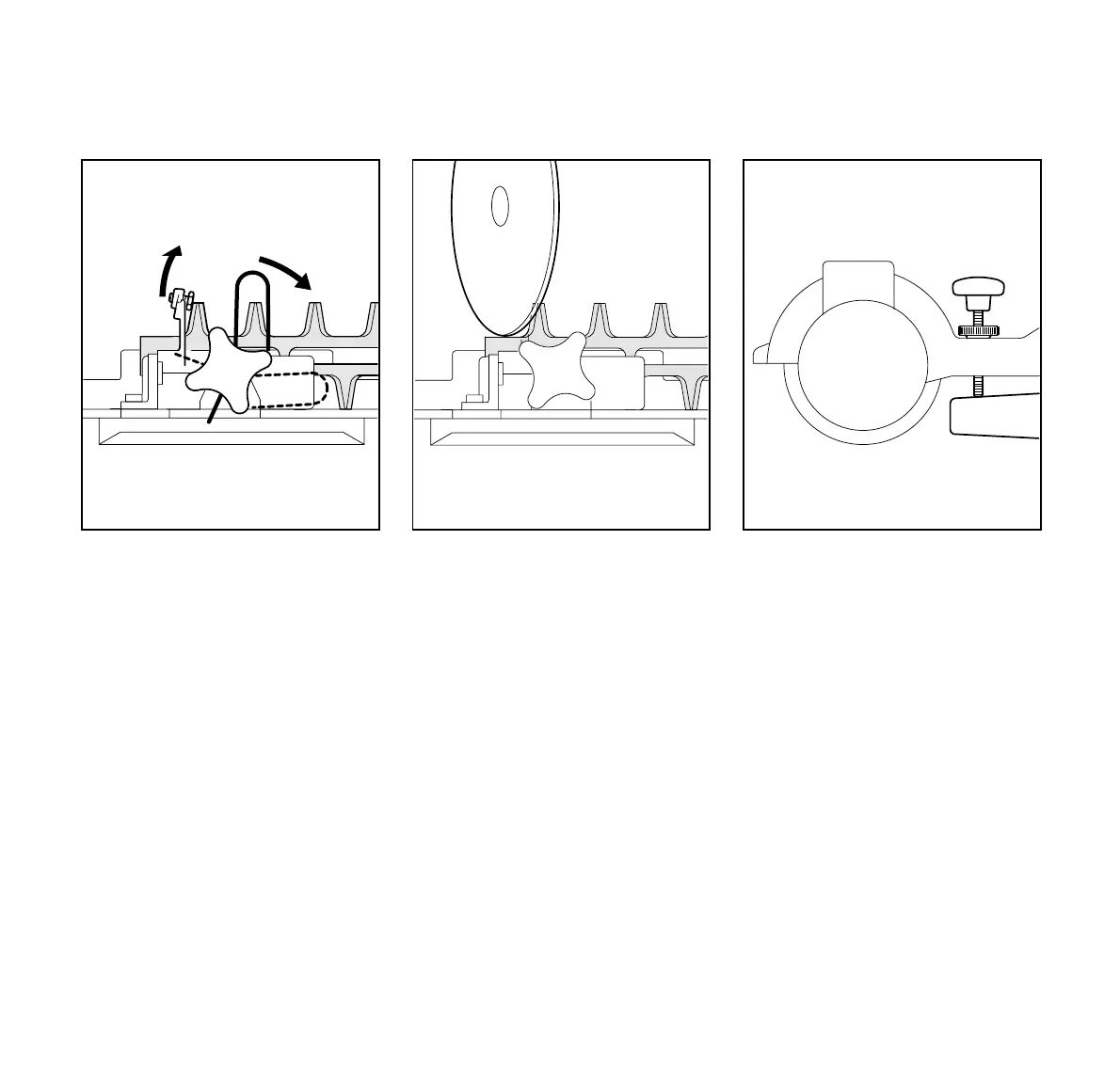

If stop is now correctly positioned:
: Continue turning the star knob (3)
clockwise until the stop swings
back.
Adjusting sharpening depth
: Swing the motor arm down until the
grinding wheel touches the gullet of
the tooth – hold it in this position.
: Screw the travel limiting screw (1)
down as far as the stop lug (2).
: Tighten down the knurled nut (3)
firmly.
523BA113 KN
3
523BA109 KN
1
3
523BA101 KN
2
