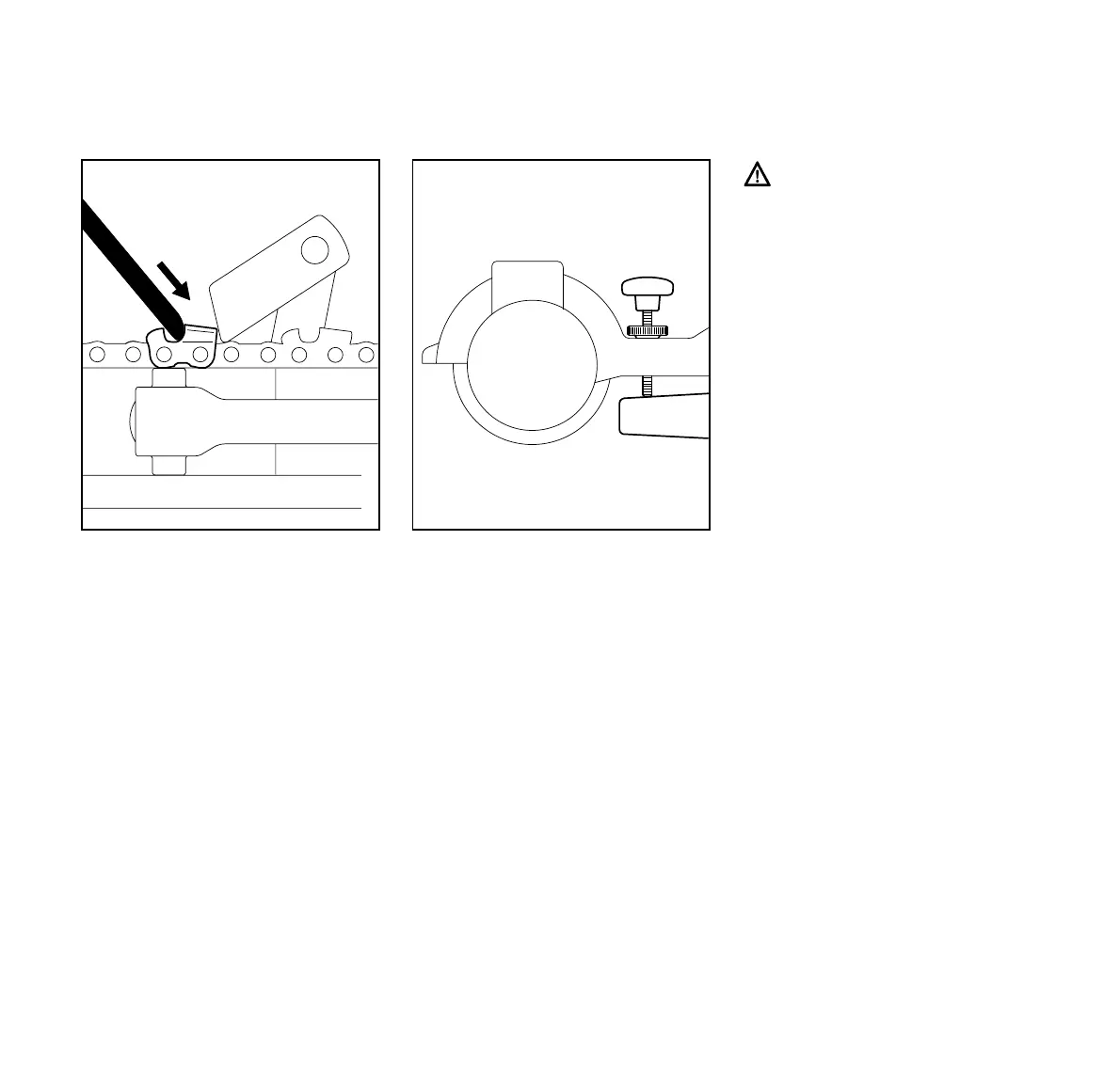

Adjusting Grinding Depth
: Swing the motor arm down until
grinding wheel touches the gullet of
the cutter – hold it in this position.
: Screw the travel limiting screw (1)
down as far as the stop lug (2).
: Tighten down the knurled nut (3)
firmly.
: Swing the motor arm up again.
Wear safety glasses.
Sharpening the Master Cutter
: Switch on the motor.
: Bring motor arm slowly downward.
Check sharpening process. Do not
remove too much material.
: If necessary, switch off motor and
readjust.
: Sharpen the side plate by applying
the wheel several times – do not
sharpen in a single pass.
: When result is satisfactory, check
the grinding depth.
523BA100 KN
1
3
523BA101 KN
2
Sharpening Procedure
