Stihl USG - Sharpening Procedure; Sharpening the Master Cutter; Adjusting Grinding Depth

38 pages

To Next Page

To Previous Page

English

USG

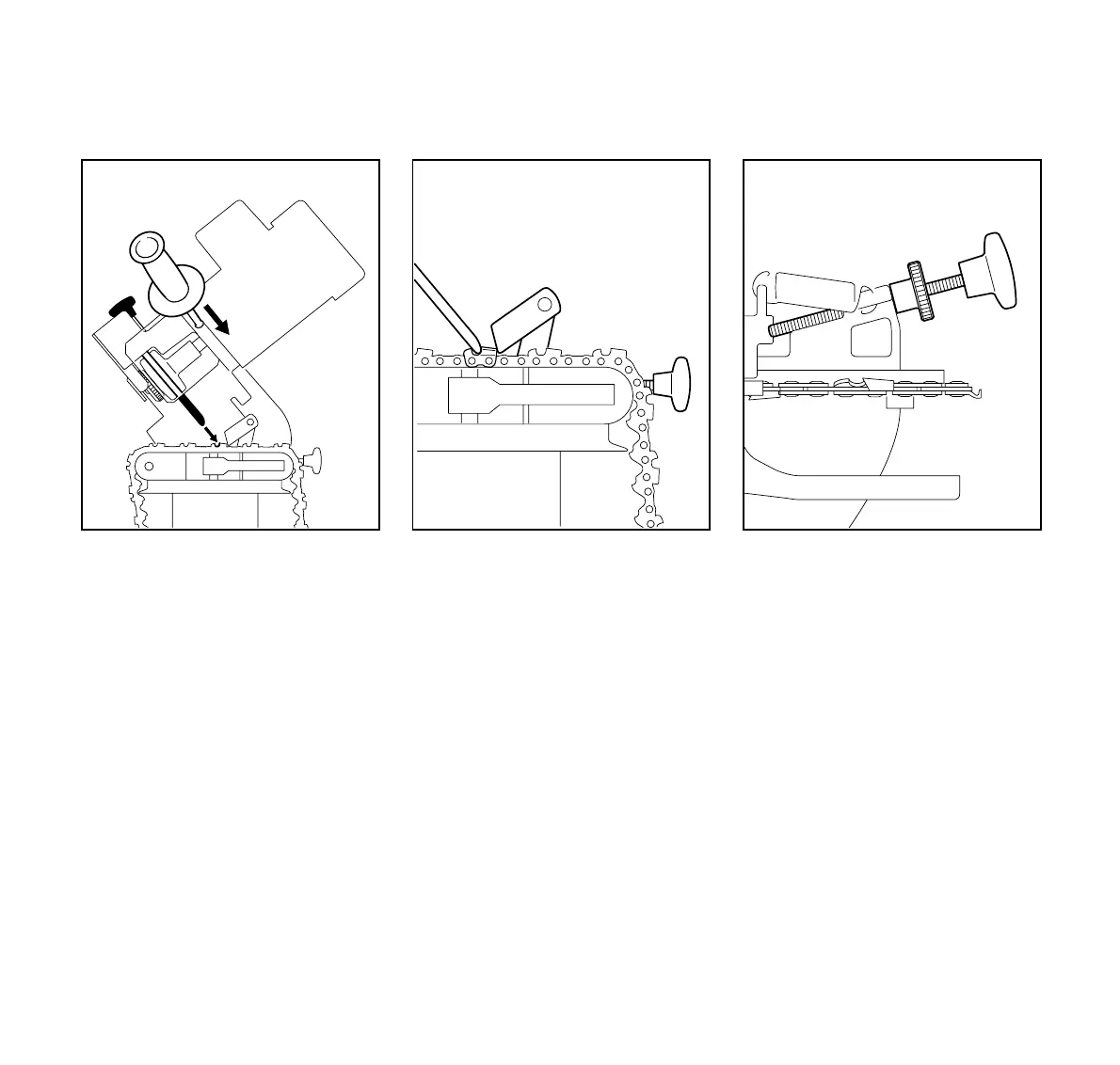

Adjusting Lateral Stop

: Back off the travel limiting screw (1).

: Use the handle to bring the grinding

wheel down to the chain.

: Move the stop (2) with the adjusting

screw (3) so that the master cutter's

side plate butts against the grinding

wheel.

: Clamp the chain firmly in position.

: Tighten down the knurled nut on the

adjusting screw.

523BA098 KN

523BA099 KN

523BA066 KN
