Stihl USG - Adjusting the Stop; Adjusting the Lateral Stop

13USG
English

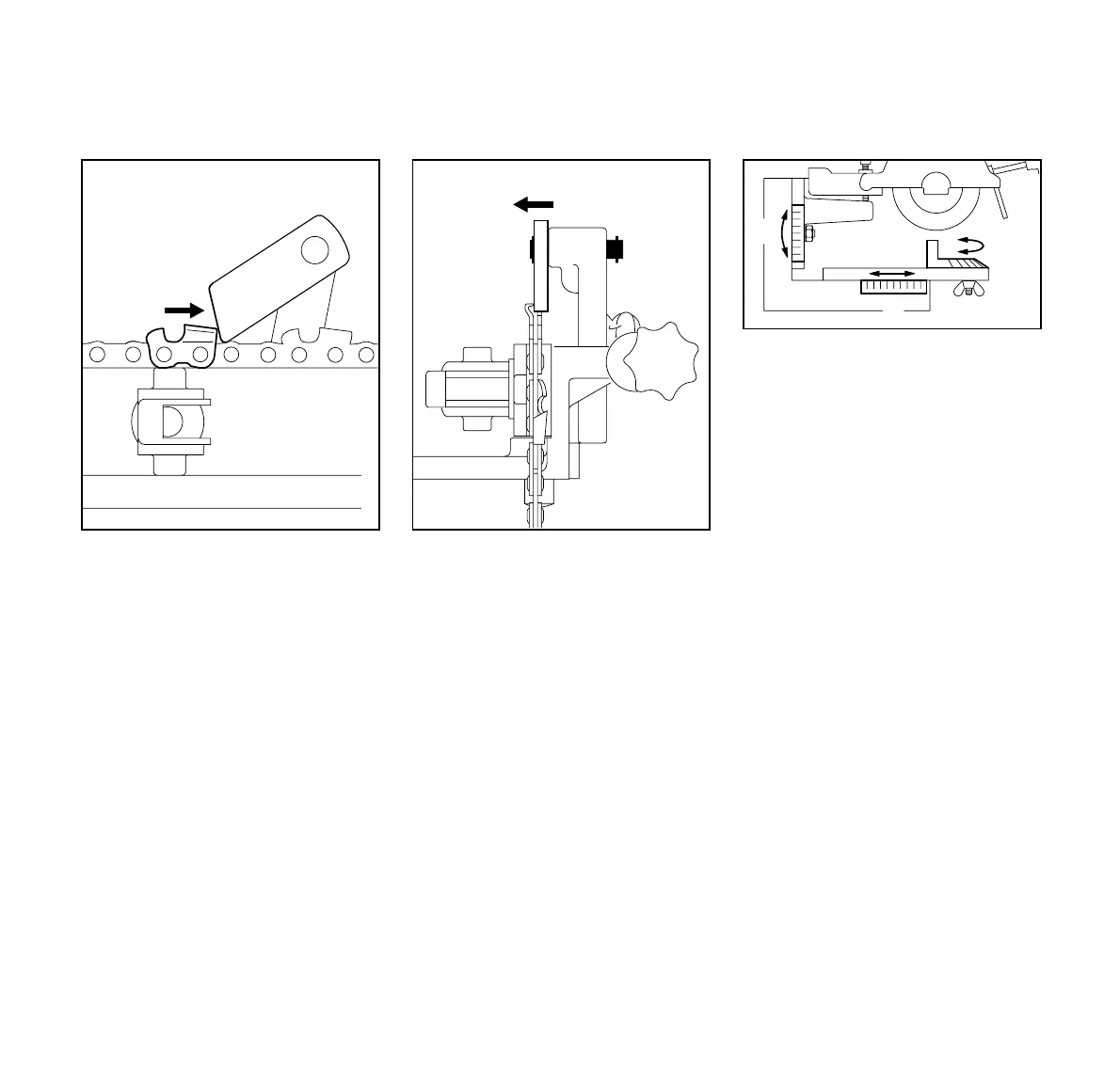

: Pull the master cutter back against
the stop (4).
: The pivot pin (5) moves backward
and forward so that the stop can be
properly located against the back of
the cutter.
: To sharpen the left-hand row of
cutters: Pull the stop in the direction
of the arrow.
: To sharpen the right-hand row of
cutters: Push the stop in the other
direction.
Setting the scales
: Set the scales to the values
specified in the instruction sheet
0457 716 0000.
