9USG
English
Scale C (attachment for
circular saw blades)
: Loosen the wingnut (4), adjust
angle, tighten down the wingnut
firmly.
Inspect the chain.
Replace damaged or worn parts of
the chain. Grind the new parts back
to the shape and size of the other
parts.
: Select the grinding wheel – see
instruction sheet 0457 716 0000.
: Mount the grinding wheel – see
"Mounting the Grinding Wheel".
: Test run the grinding wheel – see
"Test Run".
: Check profile of grinding wheel and
dress if necessary – see "Dressing
the Grinding Wheel".

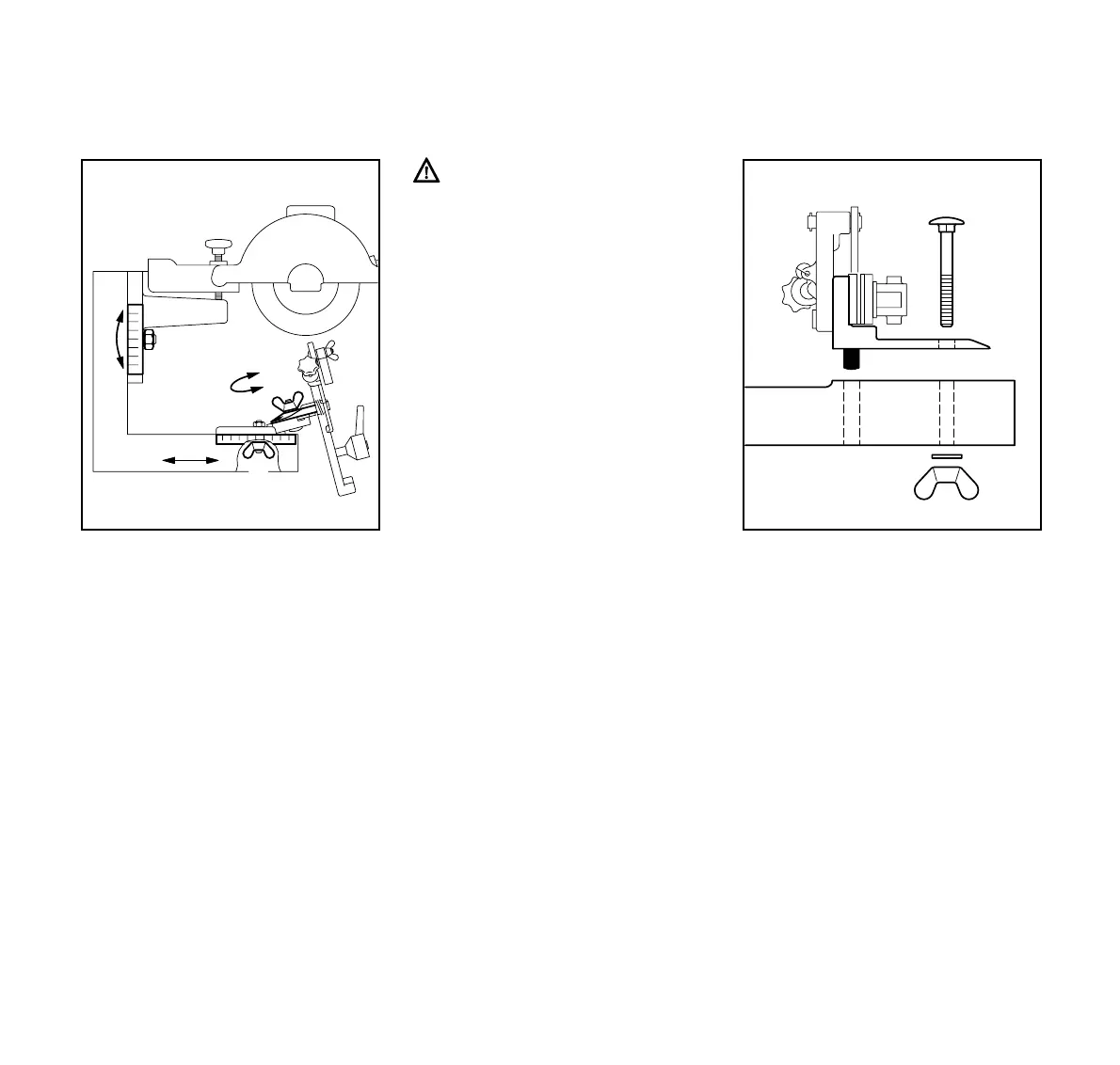

Mounting Attachment for Saw
Chain
: Engage pin (1) in hole (2) in base.
: Insert bolt (3) in slot (4).
: Fit the washer (5) and wingnut (6)
and tighten down moderately.
A
B
1
2
C
4
523BA094 KN
+
-
-
+
-
+
Setup for Sharpening
Saw Chain
4
523BA054 KN
1
2
3
5
6
