10
English
USG

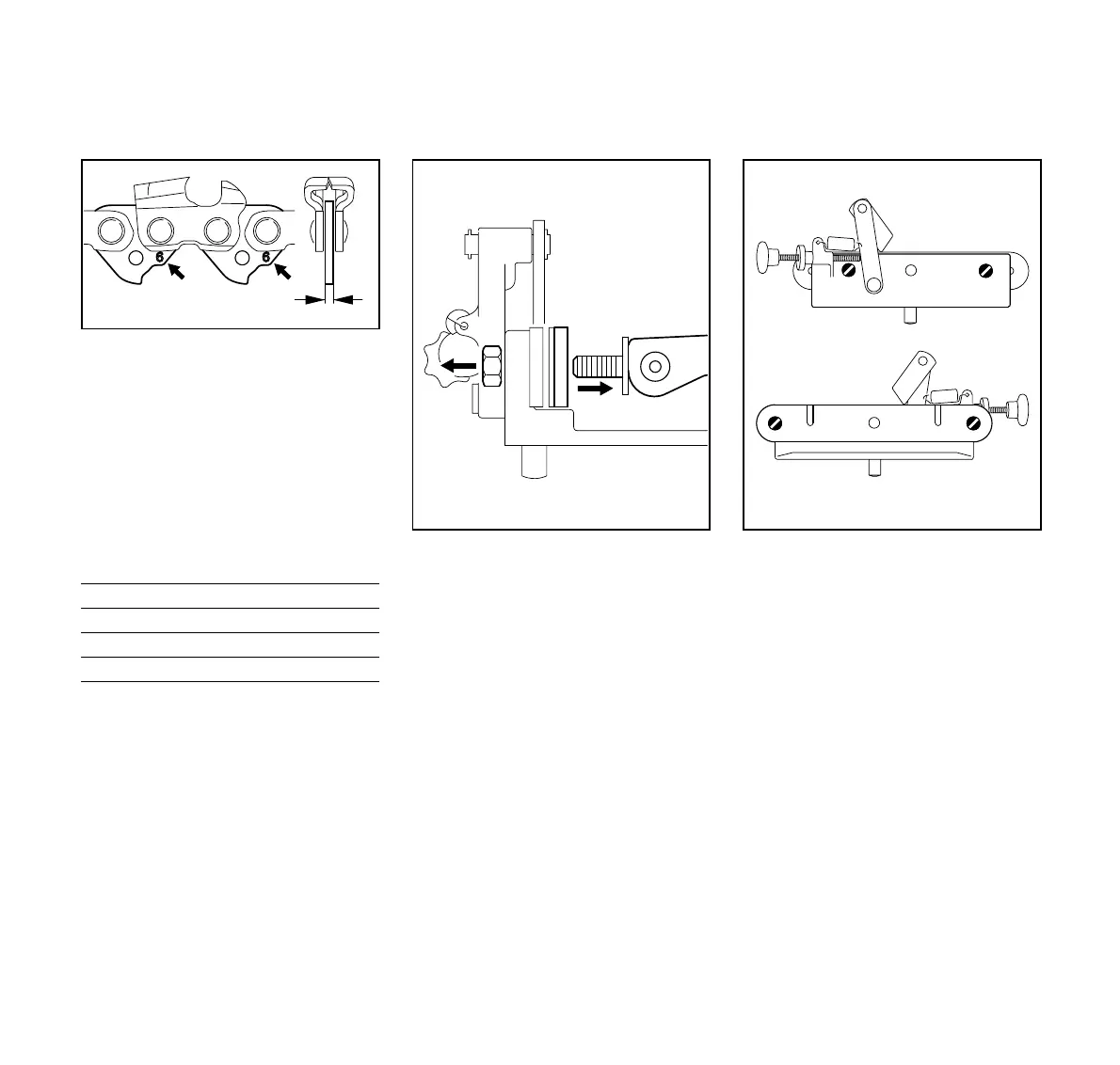

Determining Drive Link Gauge
The clamp must be adjusted to suit the
drive link gauge.
Drive link gauge:
: Use slide caliper to measure
dimension "a"
or
: note the digit (arrow)
Adjusting the Clamp
: Unscrew the clamping lever (1).
: Remove the thrust plate (2) and nut.
: Take out the screws (3).
: Take out the screws (4).
Digit Drive link gauge in mm
11.1
31.3
51.5
61.6
02.0
a
523BA135 KN
1
523BA095 KN
2
523BA057 KN
3
4
4
3
