Stihl USG User Manual

8
English
USG
Every time you mount a grinding wheel:
: Cordon off the general work area
(danger zone).
: Run grinding wheel at maximum
permissible speed for at least one
minute.
The profile of the grinding wheel is
subject to wear.
Switch off the motor.
: Use dressing gauge (special
accessory) to check the profile of
the grinding wheel.
: Set scale C on swivelling tool
rest to "0".
: Use dressing stone (special
accessory) to correct the profile of
the grinding wheel.

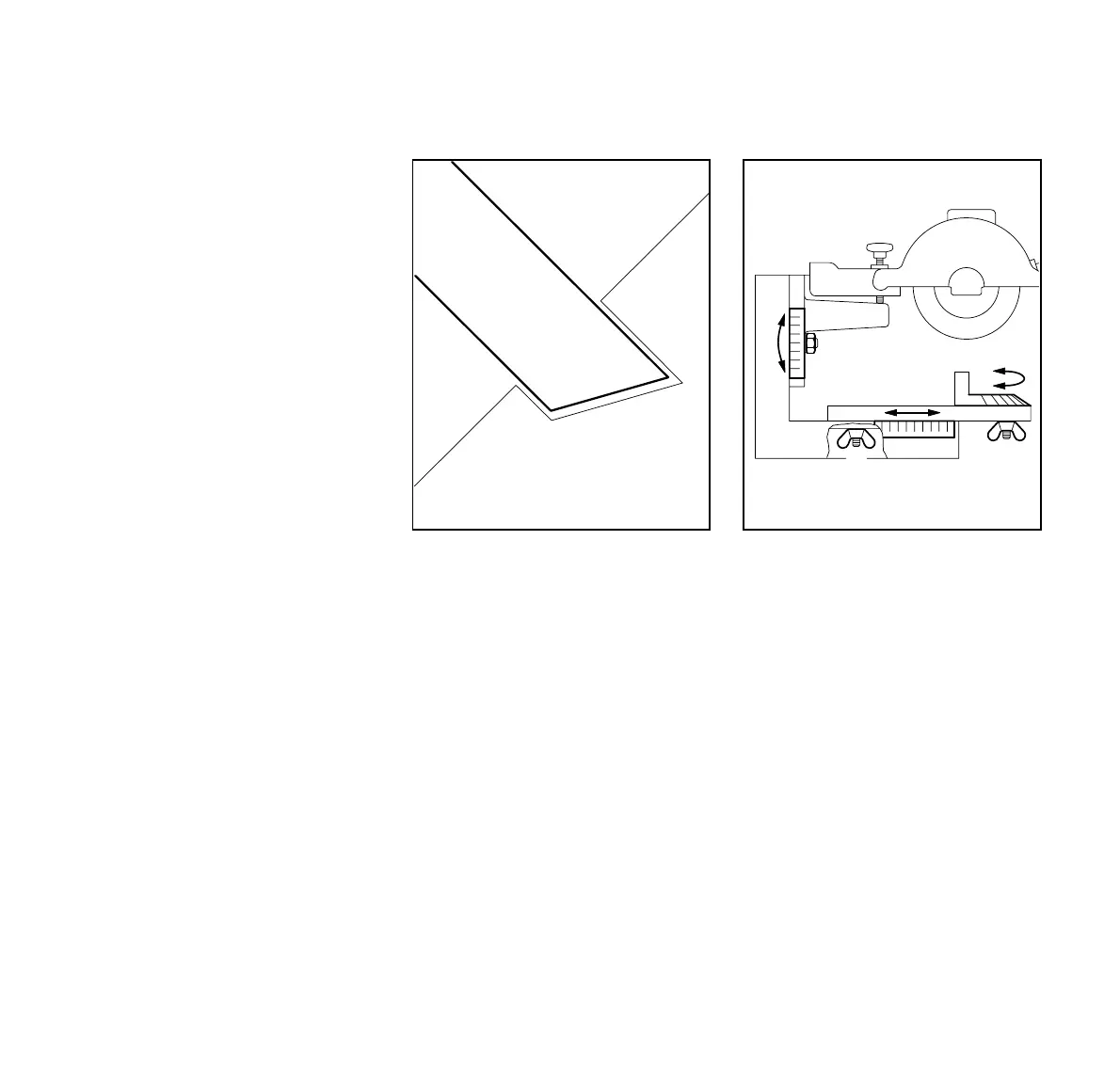

Scale A
: Loosen the nut (1), adjust angle,
tighten down the nut firmly.
Scale B
: Loosen the wingnut (2) on the
underside of the base, adjust to
required value, tighten down the
wingnut firmly.
Scale C
: Loosen the wingnut (3), adjust
angle, tighten down the wingnut
firmly.
Test Run Dressing the
Grinding Wheel
523BA030 KN
Scales
-
+
-
A
B
C
1
2
3
+
523BA138 KN
-
+
