: Switch off the motor.

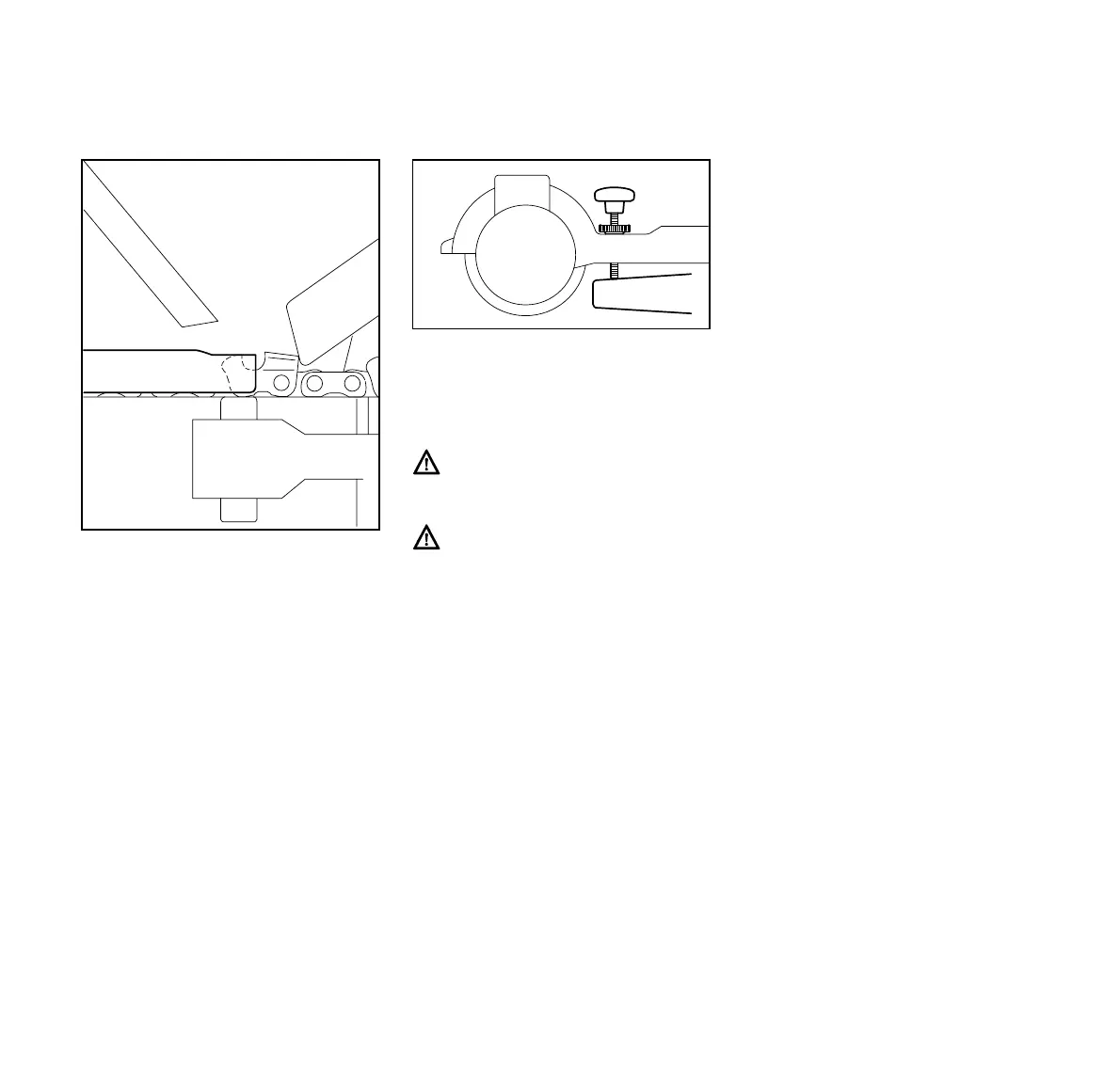

: Place the filing gauge (5) on the
chain.
: If the depth gauge (4) still projects
above the filing gauge, make
appropriate adjustment with the
travel limiting screw (1).
: Remove the filing gauge (5).
: Switch on the motor.
: Carefully bring the motor arm down.
: Switch off the motor.
: Repeat the procedure until the
depth gauge is level with the filing
gauge.
: Tighten down the knurled nut (3)
firmly.
: Use this setting to lower all the other
depth gauges.
The kickback tendency of the saw is
increased if the depth gauges are
too low.
On PM1 and RM2 chains the rear
hump of the tie strap (with service
mark) is lowered at the same time
as the depth gauge. The other parts
of the triple-humped tie strap must
not be ground because this may
increase the kickback tendency of
the saw.
: Select the correct grinding wheel
– see "Selecting Grinding Wheel".
: Mount the grinding wheel – see
"Mounting the Grinding Wheel".
: Test run the grinding wheel – see
"Test Run".
: Check profile of grinding wheel and
dress if necessary – see "Dressing
the Grinding Wheel".
4
523BA103 KN
5
3
523BA139 KN
Setup for Sharpening
Hedge Trimmer Blades
